Square Hole Paper Mill Papermaking Polyester Filter Belt

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

Square Hole Paper Mill Papermaking Polyester Filter Belt

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Square Hole Paper Mill Papermaking Polyester Filter Belt

Product Details:
Place of Origin: HEBEI ,CHINA
Brand Name: R&K
Certification: MSDS,ROSH,SGS,ISO 9001
Model Number: R&K-Polyester mesh belt
Payment & Shipping Terms:
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: 1.We always use poly bag for the goods which ship by air, so that customer can save freight free. 2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping. 3.There also have some customer request us to use the
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Material: 100% Polyester Surface: Smooth
Advantage: High Wear Resistance Color: White And Blue
Usage: Dryer And Filter Function: Paper Mill Dryer Belt
High Light:

paper mill polyester filter belt

,

square hole polyester filter belt

,

papermaking polyester filter belt

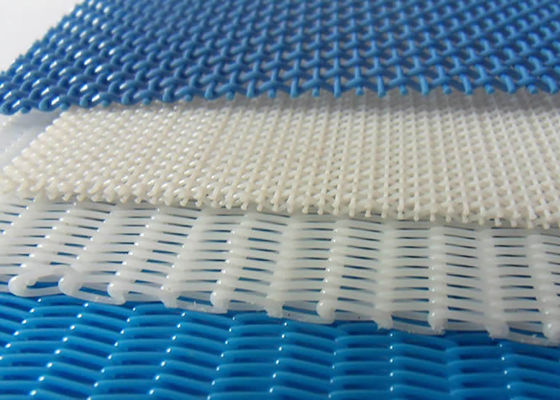

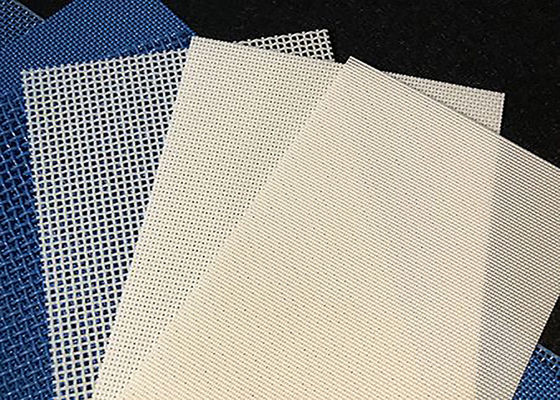

Blue Square Hole 100% Polyester Mesh Belt Polyester Dryer Belt For Paper Mill



Product Introduce



Polyester mesh is one of the world's major drying and filtering materials. Therefore, it is widely used in the field of papermaking. It is an indispensable and consumptive dehydration equipment in the papermaking industry. It is also used in the field of papermaking.



Filter belt of polyester or dacron mesh is designed as screen media for high pressure press-filters and belt presses filtration system. The synthetic filter cloth has great strength, stability, excellent chemical resistance and cake release properties. The fabric is woven with spiral wire in big loop or large loop, medium loop, and small loop to achieve varified filtration ratings. The mesh belt is popularly used used for paper making, as drainage filter mesh for pulp machine pressing uses, also coal washer, metal and mineral concertration and food industry. We offer press filter screen with seam, non woven and coated mesh types.



Product Features



High dimensional and diagonal stability,good air ventilation.
Seamless - the seam has exactly the same strength of the belt
Smooth,seamless filter or conveying surface.
Durability,Stable property, high strength,good cake release.
Heat-resistance,high temperature resistance(180 degree).
Filled or unfilled to achieved differing filtration characteristics.
Super heat with resin sealed edges for lasting,no marking,economical solution
Can be repaired easily on site

Unique structure help the solid granule get easily off the belt after filtration
Tear-resistance, shrink-resistance and abrasion resistance
Safe for food processing applications



Product Applications

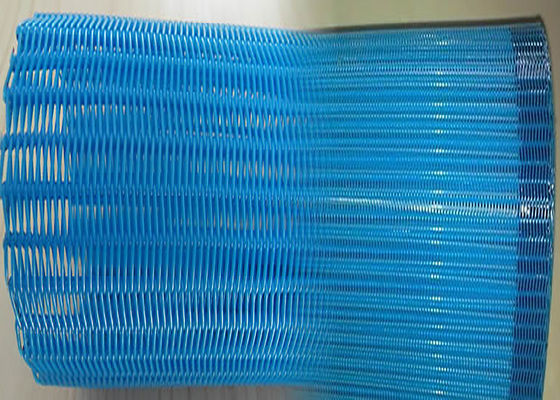

polyester spiral dryer belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
polyester spiral dryer belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
polyester spiral dryer belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.



Product Specification





Loop Weave Model Wire / Thread Diameter (mm) Thickness(mm) Weight(kg/m2) Air Permeability
(m3/m2h)
Warp Weft
Large Loop 4070B 0.9 1.1 3 1.7 20500+-1500
Large Loop 4070A 0.9 1.1 3 1.9 5250+-500
Medium Loop 3868B 0.7 0.9 2.5 1.4 18500+-1500
Medium Loop 3868A 0.7 0.9 2.5 1.7 4750+-500
Small Loop 3252B 0.5 0.7 1.9 1.1 15000+-1500
Small Loop 3252A 0.5 0.7 1.9 1.4 4000+-500





Square Hole Paper Mill Papermaking Polyester Filter Belt 0
