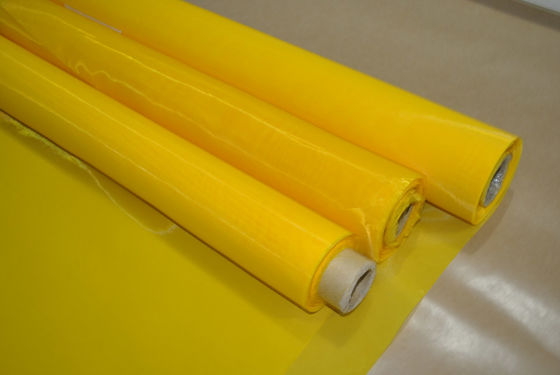

DPP40-420 mesh High Tension 100% monofilament Polyester Printing Mesh For CD/DVD
We are the manufacturer for this polyester mesh with more than 25 years, we use the NANTONG yarn to weave it, we have more than about 100sets machine to make. this mesh is widely used in CD/DVD Printing,ceramic decorative printing,textile printing,glass ,metal and so on.
Introduct for the monofilament polyester printing mesh:
Polyester Screen Printing Mesh with imported high quality material,advanced wire mesh instruments and technicians well trained by Swiss experts,we supply you first class polyester and nylon screen mesh products.
Mesh count: 40-420mesh/inch
Thread diameter: 27micron-100micron
Roll width: 1.05m,1.15m,1.27m,1.65m,1.82m,2.30m,3.30m.
Roll length: 50-1000meter
Color: white color,yellow color,red color,other color we can customized for you.
| Material |
100% polyester |
| Mesh count |
10 mesh-420 mesh and other size as request |
| Thickness |
0.056mm-0.3mm |
| Color |
white,yellow,red,orange ect,or as request, MOQ:3000METERS |
Specification for the polyester printing mesh:
| Mesh count |
weave |
Aperture
(um)
|
Thread diameter
(um)
|
Opening
(%)
|
Thickness
(um)
|
Weight
(g/m2)
|
Tension value
(N/CM)
|
| 165T/420-31 |
1:1 |
23 |
31 |
15 |
48 |
36 |
25-26 |
| 150T/380-34 |
1:1 |
23 |
34 |
13 |
55 |
42 |
29-30 |
| 140T/355-34 |
1:1 |
31 |
34 |
20 |
53 |
39 |
26-28 |
| 130T/330-34 |
1:1 |
40 |
34 |
27 |
55 |
37 |
27-28 |
| 120T/305-40 |
1:1 |
37 |
40 |
20 |
63 |
44 |
33-35 |
| 120T/305-34 |
1:1 |
45 |
34 |
30 |
55 |
35 |
25-26 |
| 120T/305-31 |
1:1 |
49 |
31 |
35 |
49 |
26 |
20-23 |
| 100T/255-40 |
1:1 |
58 |
40 |
33 |
63 |
37 |
26-27 |
| 90T/230-48 |
1:1 |
56 |
48 |
25 |
78 |
50 |
34-35 |
Process for this polyester printing mesh:
Yarn→Warping→Drawing In Heddle→Drawing In Reed→Weaving→Insitial Survey→Washing→
Heat Setting Treatment→Product Inspection→Product.
FAQ of the polyester printing mesh:
A:Are you the manufacturer for this polyester printing mesh?
B: Yes,we are the factory ,with more than 25 years experience,the factory located in Anping county.
A:What is your payment terms ?
B: T/T,Wester Union,Paypal,
A:Can we visit your factory ?
B: Of caurse,we can pick you up from your hotel or the airport & train station.
A:How far is your factory from Shanghai?
B:About 1200km.
