100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing

China 100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing supplier
100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing supplier 100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing supplier

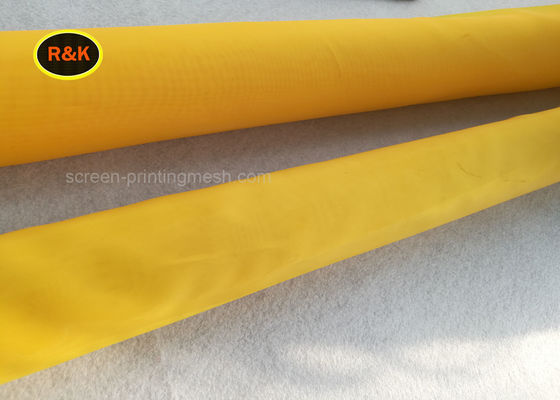

Large Image :  100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing

Product Details:

Place of Origin: Hebei,China
Brand Name: R&K
Certification: FDA
Model Number: R&K-LSS1

Payment & Shipping Terms:

Minimum Order Quantity: 50meters
Price: negotiation
Packaging Details: plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability: 3000 meters per week
Contact Now
Detailed Product Description
Material: 100% Polyester Name: 100% Polyester 77T Micron White Yellow 61T 110 Screen Printing Mesh For Touch Printing
Roll Width: Max Width 3.05meter Application: For Liquid Crystal Display
Brand Name: R&K Color: Yellow,white

100% Polyester 77T Micron White Yellow 61T 110 Screen Printing Mesh For Touch Printing





Description of the 110 screen printing mesh:



We can provide samples for free, as long as it is not more than two meters, but the freight is paid by the buyer.Low elasticity yellow 61T 110 screen printing mesh is plain weave mesh and used for Liquid Crystal Display.Hebei Reking Wire Mesh Co.,ltd has made these products for 20 years. We registered R&K as treadmark and we have registered intellectual propery protection in the foreign key sales areas.



Name Low Elasticity Yellow 61T 110 Screen Printing Mesh For Liquid Crystal Display
Material 100% polyester
Roll width Max width 3.05meter
Application For Liquid Crystal Display
Color Yellow,white



Features of the 110 screen printing mesh:

  • High tension threshold and breaking point
  • high modulus,low elongation monofilament polyester yarn
  • Resist to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic
  • No surface treatment

Specification of the 110 screen printing mesh:


Mesh Count
Diameter
(Mesh/inch μm)
Mesh
Count
(Mesh
/Inch)
Weave Aperture
(μm)
Thread
Diameter
(μm)
Opening
(%)
Thickness(μm) Thickness
Tollerance
(+/- μm)
Theoretical
lnk(cm3/m2)
Weight
(g/m2)
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
150-31PW(S) 380 1:1 32 31 23 49 3 11 32



Application of the 110 screen printing mesh:





Polyester screen printing mesh are widely used in textile and garment printing, glass printing,ceramic printing, electronic components printing,PCB printing,solar battery printing.Like the life printing,metal sheet print the company name.
