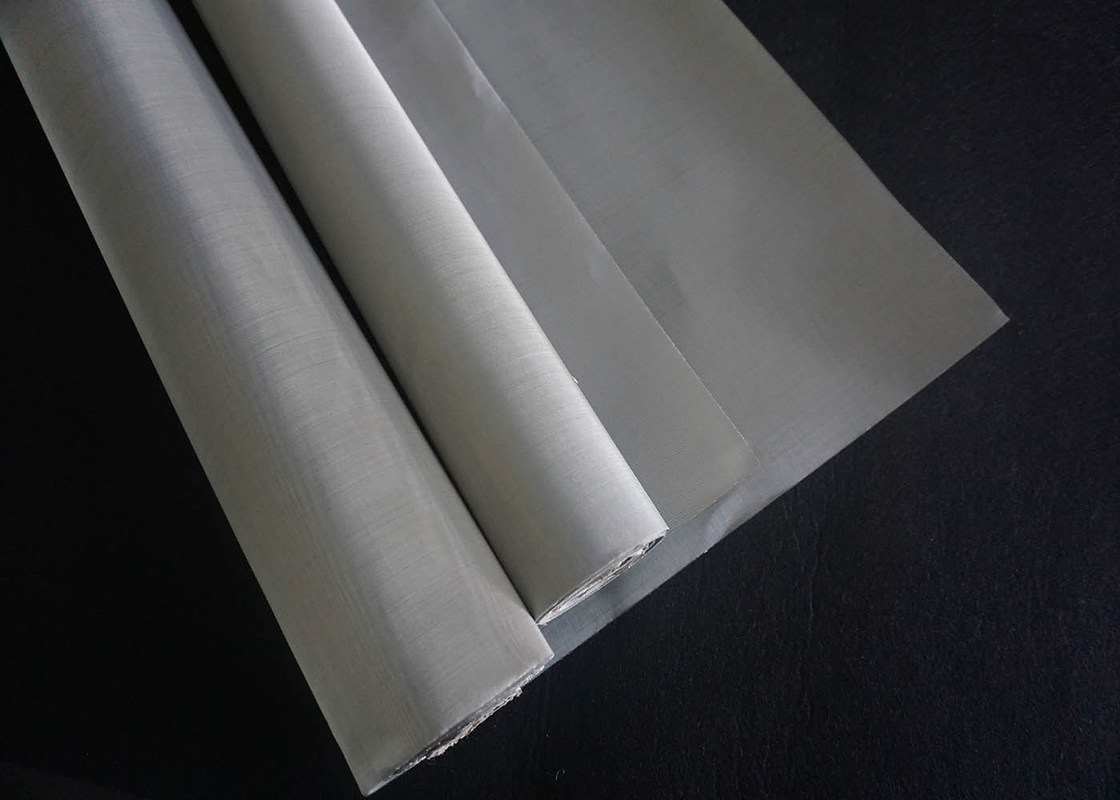

160 Micron Stainless Steel Wire Mesh /Silk Screen Printing Materials
Descriptions of stainless steel screen printing mesh , screen printing materials:
160 micron stainless steel screen printing mesh is woven by monofilament stainless steel ,plain weave,it is suitable to severe enviroment especially,also, and it is suitable to multi-color overprint and printing batch.it can work normaliy under 480 degree,and the methods printing is flexible and diverse.it with the best raw metarial.
Material: SUS304N,304HPS,316L.the other material is available.
Mesh/Inch: 40-500 Mesh/Inch
Length: 30m in general per roll or follow your request.
Aperature style: Square hole.
Thickness: 36-240 micron meter,special thickness is different according to the meshes x of the wire cloth,the calendared thickness can be 28-240 micron.
Weave: Plain weave
Features of stainless steel printing wire mesh:
1. High quality.the wire of stainless steel screen for printing is high quality.
2. Ultra-high precision and very low extension.
3. Acid-resistance and Alkali-Resistance.Because of the raw material is stainless steel wire,the stainless steel screen for printing is acid resistant and alkali resistant.
4. Excellent precision:Wire diameter openings extremely average.
5. High flexility:the mesh don't lose elasticity at extreme tension.
6. Non-electrostic:Ensure safety printing.
7. Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Advantages of stainless steel screen printing mesh materials:
1. Stainless Steel printing mesh can proceed printing large area and the proceduce operation is very ealy.
2. It is suitable for all kinds of ink and the methods is flexible and diverse.
3. Not only can monochrome printign,but also can proceed chromatography color printing.
4. We have producted the stainless steel mesh print screen several ten years.we are perfessional manufacture.the products about wire mesh have been exported into more than 30 countries all over the world.
5. The texture is rich and the products printed can be hook face.it is not limited by disposition products printed.
Specifications of stainless steel screen printing materials :
| Stainless Steel Printing Mesh |
| Mesh/inch |
WireDiameter
(μm) |
Opening (μm) |
Open Area
(%) |
Thickness
(μm) |
Through ink
(cm3/m2) |
Calender thickness
(μm) |
| 80*80 |
90 |
228 |
52 |
198-207 |
103.0 |
168-170 |
| 80*80 |
120 |
198 |
39 |
276-288 |
92.9 |
228-230 |
| 100*100 |
100 |
154 |
36.8 |
230-240 |
77.2 |
188-190 |
| 120*120 |
80 |
132 |
39 |
184-192 |
65.8 |
148-150 |
| 150*150 |
60 |
109 |
41.7 |
138-144 |
50.0 |
138-142 |
| 165*165 |
45 |
109 |
50.1 |
95-104 |
45.1 |
78-80 |
| 165*165 |
50 |
104 |
45.6 |
110-115 |
45.6 |
88-90 |
| 180*180 |
45 |
96 |
46.4 |
99-104 |
41.5 |
78-80 |
| 180*180 |
50 |
91 |
42 |
115-120 |
41.7 |
88-90 |
| 200*200 |
40 |
87 |
46.9 |
81-82 |
43.0 |
68-70 |
| 200*200 |
50 |
77 |
37 |
115-120 |
42.0 |
88-90 |
| 230*230 |
35 |
75 |
46.7 |
72-76 |
37.0 |
50-67 |
| 250*250 |
30 |
72 |
49.7 |
63-64 |
30.0 |
48-49 |
| 250*250 |
35 |
67 |
43 |
76-78 |
32.0 |
59-61 |
| 250*250 |
40 |
62 |
49.7 |
82-86 |
34.0 |
50-80 |
| 270*270 |
35 |
59 |
39.4 |
76-80 |
30.0 |
58-70 |
| 290*290 |
20 |
68 |
41.7 |
43-44 |
18.4 |
29-30 |
| 300*300 |
30 |
55 |
38 |
66-68 |
28.0 |
40-59 |
| 325*325 |
23 |
55 |
49.8 |
49-53 |
25.4 |
38-39 |
| 325*325 |
28 |
50 |
41.2 |
63-64 |
26.4 |
50-51 |
| 325*325 |
30 |
48 |
38 |
66-68 |
24.0 |
40-59 |
| 350*350 |
25 |
48 |
43 |
52-54 |
18.7 |
41-50 |
| 400*400 |
18 |
46 |
51.3 |
36-40 |
20.0 |
28-30 |
| 400*400 |
23 |
41 |
40.7 |
50-54 |
19.0 |
35-48 |
Applications of stainless steel silk screen printing mesh materials:
160 micron stainless steel printing mesh is widely used in printing of Chip Electrical Components,Solar Battery,FPD,LCD,Glass,PCB.
