Acid Resistant Monofilament Polyester Screen Fabric For Automotive Glass Printing

Large Image : Acid Resistant Monofilament Polyester Screen Fabric For Automotive Glass Printing

Product Details:

Place of Origin:	Hebei , China
Brand Name:	R&K
Certification:	FDA,MSDS,ISO
Model Number:	TI43

Payment & Shipping Terms:

Minimum Order Quantity:	30 meter
Price:	negotiation
Packaging Details:	plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time:	5-10 days
Payment Terms:	L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability:	3000 meters per week

Contact Now

Detailed Product Description

Material:	100 % Monofilament Polyester Yarn	Weave:	1:1
Standard Width:	41 Inch,45 Inch,65 Inch,74 Inch,87 Inch,142inch	Standard Length:	50/80/100/300/500/1000meters
Mesh Count:	30 Mesh - 420 Mesh	Thread Diamdameter:	30-200 Micron
Brand Name:	R&K	Place Of Original:	Hebei,China
Type:	Printing Mesh	Usage:	Glass Printing
High Light:	polypropylene filter mesh , polyester screen mesh

Polyester Screen Printing Mesh For Automotive Glass Printing 165 Width Acid Resistant

Description of the screen printing mesh:

Reking Polyester screen printing mesh with high quality domestic and imported monofilament polyester yarn to weave,we introduce the advanced weaving looms and test instruments. we have the compeletment system for testing the finished goods, before ship out the goods,we all can test them to guarantee our quality can meet your requirements.

Polyester mesh Material	100% monofilament polyester yarn
Polyester mesh mesh count	25 mesh to 460 mesh per inch( 10 T - 180 T)
Polyester mesh thread diameter	27 micron - 300 micron
Polyester mesh aperture size	23 micron - 800 micron
Polyester mesh popular color:	white ,yellow color, usually the black color is used for waterproof screen or dustproof screen. if you need this kind of filter mesh and black mesh,we also can provide you a best price for your reference.

Characteristic of the Screen printing mesh:

-- Minimum tension loss during stretching.

-- Due to the stability of fabric tension, the registration rate is improved.

-- Good anti-static.

-- No surface treatment.

-- High tension threshold and breaking point.

-- High modulus, low elongated single filament polyester yarn.

Specification of the screen printing mesh:

Mesh count	Aperture(um)	Thickness(um)	Weight(g/m2)	Opening(%)	Weave
13T/33-150	619	300	60	64	1:1
21T/55-80	296	120	35	69	1:1
21T/55-150	326	260	121	46	1:1
24T/60-100	317	136	81	57	1:1
28T/70-140	217	195	125	40	1:1
32T/80-55	257	103	28	67	1:1
32T/80-64	248	95	32	63	1:1
32T/80-100	212	165	75	45	1:1
36T/90-90	183	150	68	44	1:1
39T/100-55	177	88	30	56	1:1
48T/120-70	133	115	55	41	1:1

Acid Resistant Monofilament Polyester Screen Fabric For Automotive Glass Printing 0

Application of the screen printing mesh:

Textile printing;
Garment(T-shirt) printing;
CD/DVD printing;
Glass printing ;
Ceramic printing ;
Electronics components printing.

The screen printing mesh is also used well in filteration industry,such as ink filter,aviation,aerospace,petrochemical and other high-tech fields of melt filter etc.

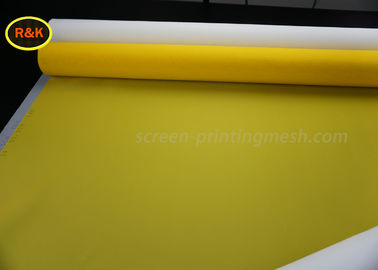

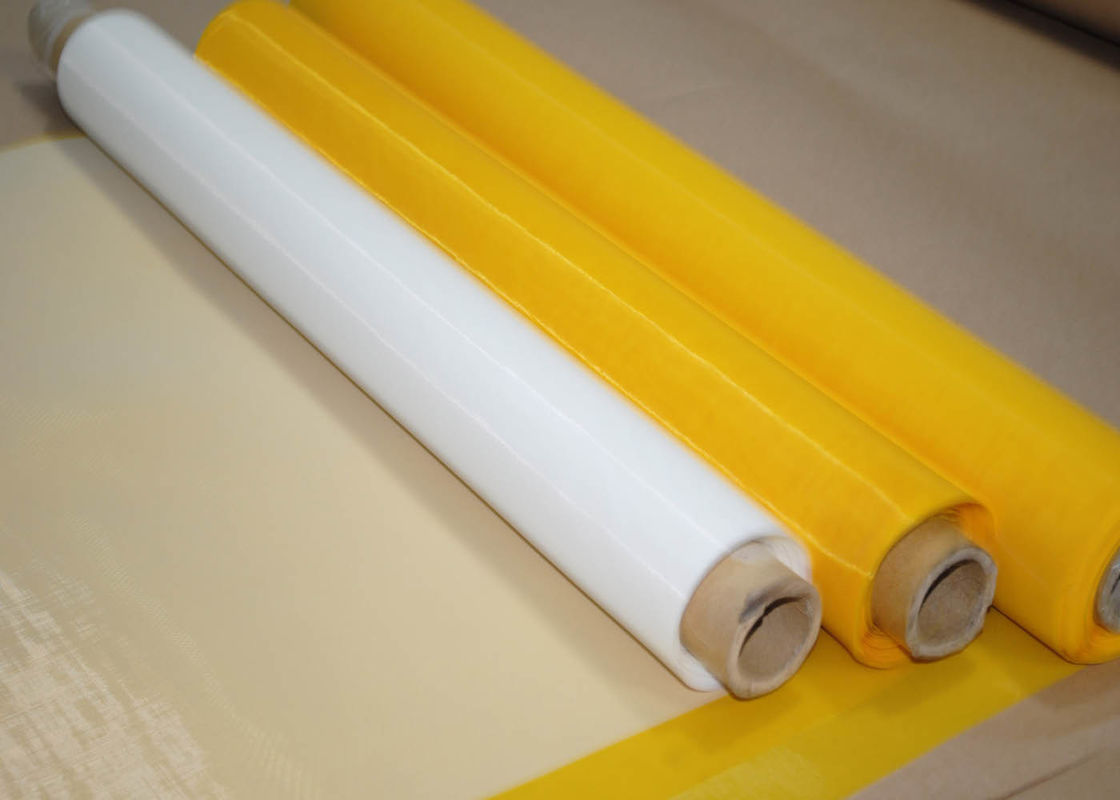

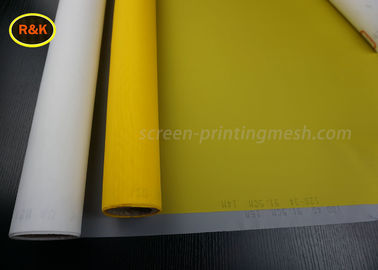

Photo of the screen printing mesh:
