Product Details:
Payment & Shipping Terms:
|
Material: | Fiberglass | Standing Temperature: | 70 To 260 |
---|---|---|---|
Standard Size: | 1*1,2*2,4*4mesh,10*10mesh | Weight: | 120-160g/m2 |
Width: | As Requirement | Length: | As Requirement |
High Light: | 4mm ptfe mesh conveyor belt,high temperture ptfe mesh conveyor belt,ptfe mesh conveyor belt 4000mm |

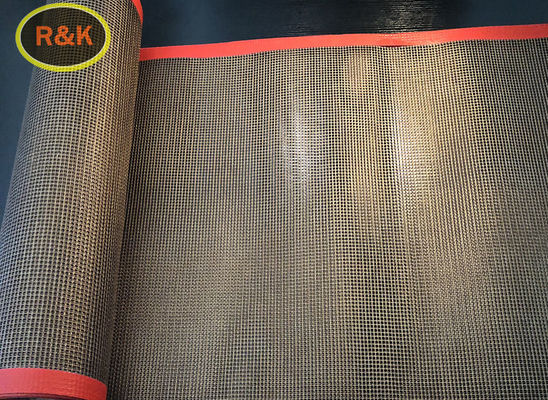

4mm High Temperture PTFE teflen Mesh Coated Fiberglass Coveyor Belt 4000 mm
Description of the teflen conveyor belt:
teflen conveyor belt is also known as teflen conveyor belt, teflen conveyor belt, PTFE conveyor belt and high temperature resistant conveyor belt. teflen conveyor belt is divided into teflen mesh conveyor belt and teflen high-temperature cloth, both of which are made of teflen resin coated with glass fiber cloth.The teflen mesh conveyor belt is defined with mesh size, mainly including 1 x 1MM, 2 x 2.5mm, 4 x 4MM, 10 x 10MM, etc., and is divided into single and double weft teflen mesh conveyor belt according to the longitude and latitude lines.teflen high temperature cloth is used to distinguish the specification by thickness, and the thinnest is up to 0.08MM.
Material | PTFE |
Standard | 1*1,2*2,4*4mesh,10*10mesh |
width | as requirement |
Standing Temperature | 70 to 260 |
Weight | 120-160g/m2 |
length | As requirement |
Features of the teflen conveyor belt:
Used for low - 70 ℃, high temperature 260 ℃, has the climate resistance, anti-aging.Through practical application, such as under the condition of 250 ℃ high temperature placed 200 days in a row, not only low intensity will not change, and also do not reduce weight;Placed under the high temperature of 350 ℃, 120 hours, the weight only decreases about 0.6%;In 180 ℃ cryogenic circumstance and can keep the original softness.
Specification of the teflen conveyor belt:
Item | Aperture | material | Thickness | weight | temperature resistance | max width | Tensile strength |
1 | 1x 1mm | Fiberglass | 0.5mm | 370g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
2 | 2x 2mm | Fiberglass | 0.7mm | 450g /m 2 | -70 -260 ℃ | 4m | 350/310 N/cm |
3 | 4x 4mm | Fiberglass | 1.0mm | 400g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
4 | 4x 4mm | Fiberglass | 1.0mm | 450g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
5 | 4x 4mm | Fiberglass | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m | 895/370 N/cm |
6 | 4x 4mm | Fiberglass | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
7 | 4x 4mm | Fiberglass | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 900/600 N/cm |
8 | 4x 4mm | Fiberglass | 1.0mm | 550g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
9 | 10x 10mm | Fiberglass | 1.2mm | 450g /m 2 | -70 -260 ℃ | 4m | 360/300 N/cm |
10 | 0.5x 1mm | Fiberglass | 0.5mm | 420g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
11 | 2x 2.5mm | Fiberglass | 0.9mm | 600g /m 2 | -70 -260 ℃ | 3m | 390/320 N/ |
Application of the teflen conveyor belt:
