Product Details:
Payment & Shipping Terms:
|
Color: | Blue | Application: | Ceramic,glass,bottle,textile,elecronic Ect |
---|---|---|---|
Material: | Polyurethane | Hardness: | 80A |
Length: | 4m Per Roll | Size: | 50 ×9 MM |
High Light: | silk screen squeegee,polyurethane squeegee blades |

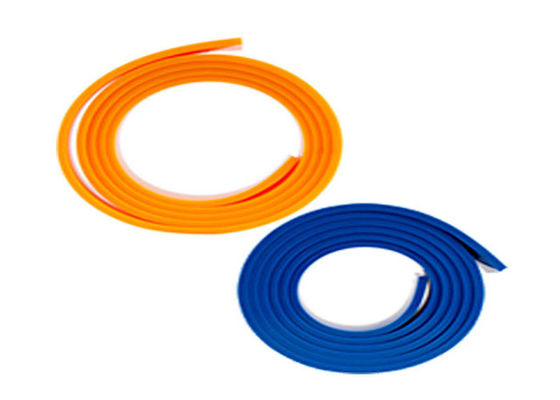

50 ×9 MM Polyurethane PU 80A Squeegee Blue Color Screen Printing Rubber Rolls
Descriptions of the Screen Printing Squeegee Blades:
Squeegee is used in the process of screen printing, also known as squeegee.Most of them are made of PU material. According to the characteristics of screen printing substrate, the precision requirements of printing patterns and different printing methods, the scratches with different hardness and different section shapes can be selected.The hardness of the squeegee specifically refers to the hardness of its surface.Sau's hardness is often expressed as: 55 degrees, 60 degrees, 65 degrees, 70 degrees, 75 degrees, 80 degrees, 85 degrees.Section shape has right Angle, sharp Angle and arc.The detailed specifications are: 50*9mm, 55*9mm, 45*9mm, 50*7mm, 45*7mm, 40*7mm, 55*5mm, 50*5mm, 45*5mm, 40*5mm, 35*5mm, 25*5mm, etc.
specificaion of the screen printing squeegee blades:
PRODUCT NAME | Durometer(shore A) | Handile Length(inch0 | Blade Size | Color |
Wooden Handle Squeegee |
50A 55A 60A 65A 70A 75A 80A 85A 90A |
8" 12" 14" 16" 18" 25" 40" 79" |
5*25 6*50 7*30 7*35 7*50 8*50 8*60 9*30 9*40 9*50 9.5*50 10*50 10*55 10*70 |
Blue Yellow Green Red Coffee White Clear Natural Orange |
Item name | Thickness*Width*Length | Color | Sharp | Hardness |
S Q B U L E A E D G E E E |
5*17*4000 | Red | Flat | 60A to 90A |
5*20*4000 | Red | Flat | 60A to 90A | |
5*25*4000 | Red | Flat | 60A to 90A | |
5*25*4000 | Red | Flat | 60A to 90A | |
5*35*4000 | Yellow | Flat | 60A to 90A | |
7*35*4000 | Yellow | Flat | 60A to 90A | |
7*42*4000 | Blue | Flat | 60A to 90A | |
7*50*4000 | Blue | Flat | 60A to 90A | |
9*42*4000 | Green | Flat | 60A to 90A | |
9*50*4000 | Green | Flat | 60A to 90A | |
10*50*4000 | Coffee | Flat | 60A to 90A |
Features of the screen printing squeegee blades:
Good flexibility, sharp blade, small swelling rate, not easy to wear, different solvents, long service life.
The original color of sau's hardness is more extensive.
PU blue 75-80A
Pu7can withstand the highest pressure and high viscosity ink through the network low, making the finished pattern extremely fine.The harder the rubber, the stronger the scratch resistance.
Applications of the screen printing squeegee blades:
It is widely used for hand and machine printing in textile, advertisement, adhesive, glass, ceramic, paper, cigarette and wine label, bottle, container, package, panel, label, keyboard, film switch, PCB, electronic, circuit board, CD, PVC, plastic etc.
