High Modulus Polyester Screen Printing Mesh For General Screen Printing Application

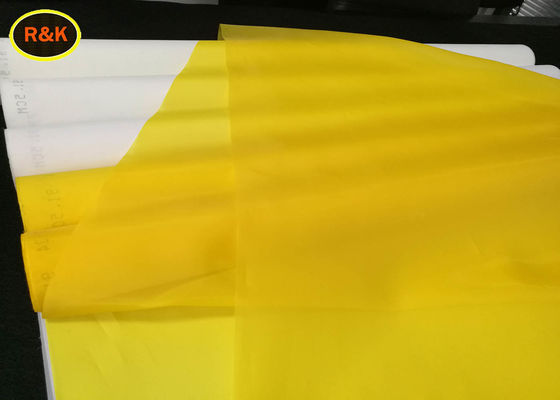

Large Image : High Modulus Polyester Screen Printing Mesh For General Screen Printing Application

Product Details:

Place of Origin:	Hebei , China
Brand Name:	R&K
Certification:	SGS， ISO 9001
Model Number:	J801gdfva

Payment & Shipping Terms:

Minimum Order Quantity:	50 Meter/Meters Thermal Screen Printing Mesh
Price:	negotiation
Packaging Details:	in cartons,plastic film packaging or as customer's request
Delivery Time:	3-10 days
Payment Terms:	L/C,T/T,Paypal, Western Union,Trade Assurance.
Supply Ability:	15000 Meter/Meters per Week Thermal Screen Printing Mesh

Contact Now

Detailed Product Description

Material:	100% Polyester	Brand Name:	R&K
Thermal Screen Printing Mesh Roll Width:	1M-3.9M	Thermal Screen Printing Mesh Length:	Standard Length 50/100/200/500/1000/1500meters
Color:	White,yellow	Mesh Count:	25-420 Mesh
High Light:	polyester printing screen , polyester mesh screen

High Modulus Polyester Screen Printing Mesh For General Screen Printing Application

Description of the polyester thermal printing mesh:

Polyester Screen Printing Mesh is A high performance mesh that provides the highest quality printing results for screen/template manufacturers and end users/printers during maximum print runs. We have a very broad product portfolio including the world's nested polyester mesh.

Specification of the polyester Screen Printing Mesh:

Mesh Count Diameter (Mesh/cm um)	Mesh Count (Mesh/inch)	Weave	Aperture (um)	Thread Diameter (um)	Opening (%)	Thickness (um)	Thickness Tollerance (+/- um)	Theoretical Ink (cm3/m2)	Weight (g/m2)	Tension value(N/CM)
165-31PW(S)	420	1:1	23	31	15	48	2	7	36	25-26
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42	30-31
150-31PW(S)	380	1:1	32	31	23	49	3	11	32	24-25
140-34TW(T)	355	2:1	33	34	21	56	3	12	41	27-28
140-34PW(T)	355	1:1	31	34	20	53	3	10	39	26-28
140-31PW(S)	355	1:1	36	31	26	48	2	12	30	22-24
130-34PW(T)	330	1:1	40	34	27	55	3	15	37	27-28
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44	33-35
120-34PW(T)	305	1:1	45	34	30	55	3	16	35	25-26
120-31PW(S)	305	1:1	49	31	35	49	3	17	26	20-23
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40	30-32
100-40PW(T)	255	1:1	58	40	33	63	3	21	37	26-27
90-48PW(T)	230	1:1	56	48	25	78	4	19	50	34-35
80-48PW(T)	200	1:1	72	48	33	74	4	25	56	34-35
77-55PW(T)	195	1:1	67	55	27	88	4	24	55	37-38
77-48PW(S)	195	1:1	77	48	35	80	4	28	42	34-35
72-55PW(T)	182	1:1	85	55	30	90	5	27	51	33-34
72-48PW(S)	182	1:1	90	48	36	78	5	33	39	32-33
68-64PW(T)	175	1:1	78	64	28	105	5	30	65	39-40
68-55PW(S)	175	1:1	85	55	34	85	4	28	48	33-34
64-64PW(T)	160	1:1	85	64	30	115	6	34	61	34-35
64-55PW(S)	160	1:1	98	55	38	98	5	36	48	33-34
61-64PW(T)	155	1:1	90	64	31	101	5	30	58	35-36
54-70PW(HD)	137	1:1	109	70	35	116	6	40	62	39-40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51	33-34
53-55PW(S)	135	1:1	133	55	50	86	6	42	40	26-27
53-45PW(S)	135	2:2	143	45*2	57	79	7	41	46	26-27
48-70PW(T)	122	1:1	133	70	41	115	6	47	55	34-35
47-55PW(S)	120	1:1	152	55	51	88	6	48	34	26-27
43-80PW(T)	110	1:1	149	80	41	130	7	53	64	43-44
40-80PW(T)	103	1:1	166	80	44	133	7	59	60	41-42
39-55PW(S)	100	1:1	177	55	56	88	6	55	30	39-40
36-90PW(T)	92	1:1	183	90	44	150	8	65	68	36-39
32-100PW(T)	81	1:1	212	100	45	165	8	73	75	35-37
32-64PW(S)	81	1:1	248	64	63	95	6	56	32	26-28
32-55PW(S)	81	1:1	257	55	67	103	6	67	28	24-25
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125	/
24-100PW(T)	60	1:1	316	100	57	136	11	65	81	/
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121	/
21-80PW(S)	55	1:1	296	80	69	120	9	79	35	/
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60	/
PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request.

Features of Polyester Screen Printing Mesh:

1.High tensile strength
2.Longer exposure tolerance
3.High dimensional accuracy
4.Excellent print reproducibility
5.Stable tensile tension value
6.Strict surface treatment
7.Maintain the most stringent color tolerances
8.Antistatic performance.
9.High screen tension
10.Higher dimensional accuracy
11.Uniform conductivity values

Application of the polyester screen printing mesh:

Electronic Industry

Automotive Industry

Glass Industry

Solar Cell Industry

Graphic Industry

High Modulus Polyester Screen Printing Mesh For General Screen Printing Application 0
