33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

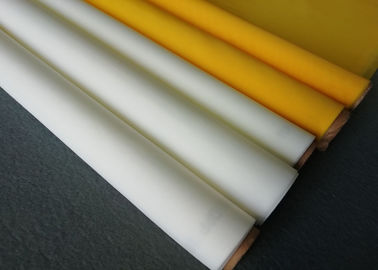

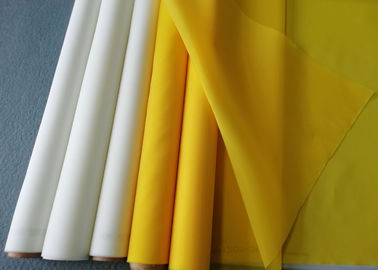

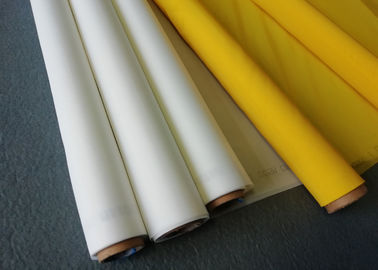

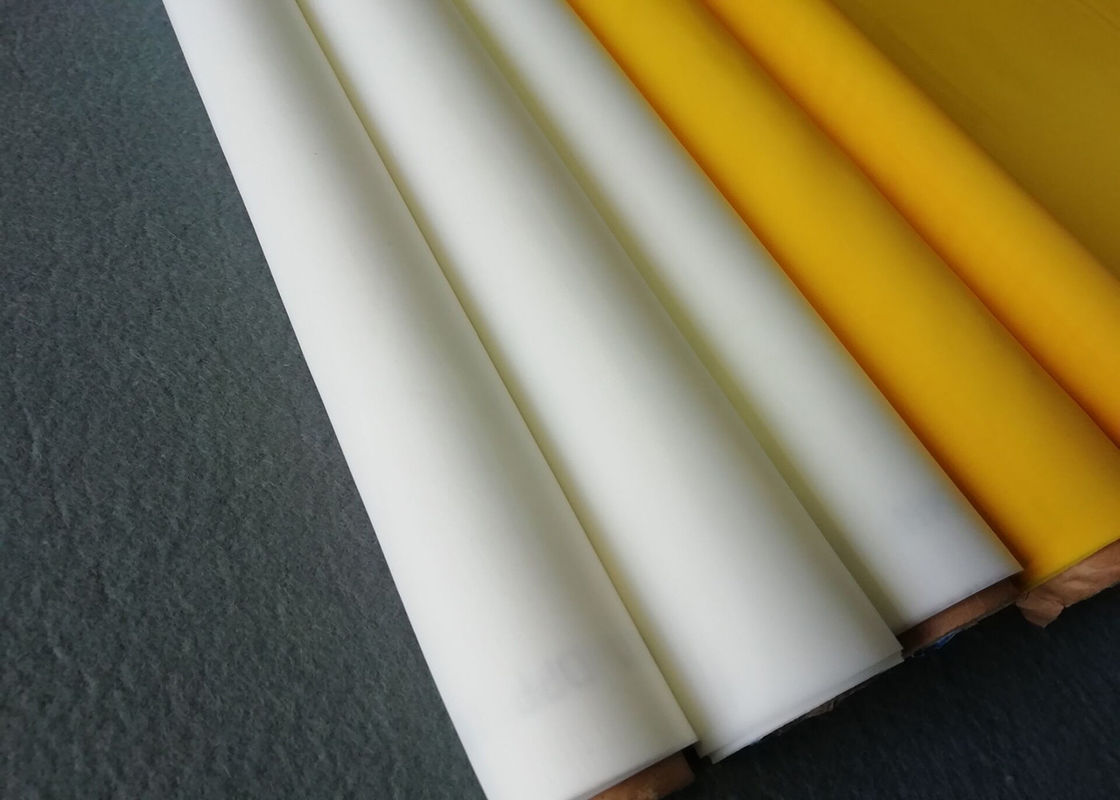

33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing

33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing
33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing 33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing 33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing 33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing

Large Image :  33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing

Product Details:
Place of Origin: HEBEI ,CHINA
Brand Name: R&K
Certification: MSDS,ROSH,SGS,ISO 9001
Model Number: R&K-Polyester mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: 1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Width: 43/44" Style: Plain
Supply Type: In-Stock Items Material: 100% Polyester
Pattern: Printed Type: Mesh Fabric
Technics: Woven Weight: As Order
High Light:

polypropylene filter mesh

,

polypropylene filter mesh

33-420 Mesh 100% Polyester Mesh Silk Fabric For Machine Screen

Product Introduction



Polyester monofilament mesh is the most widely used screen printing mesh for textile, glass, ceramic, electronics and solar industries.

It provides excellent reproducible printing results and exceptional and accurate image quality and durability.

Additional, the wide ranges of mesh counts for different printing substrates can satisfy your most of printing requirements.

33-420 Mesh 100 Polyester Mesh Silk Fabric For Machine Screen Printing 0



Product Details



Name 33-420 Mesh 100% Polyester Mesh Silk Fabric For Machine Screen Printing
Color White/Yellow
Width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm
Mesh count 18-420 mesh
Thread diameter 31-200 Micron
Mesh opening 24-475 Micron
Thickness 55-365 Micron
Material 100% polyester
Weave type Plain weave
Feature High tension, low elongation and halogen-free
Leadtime 2-10 days according to the order quantity
Sample Available
Usage Printing on Ceramics, Glass, Textile, Electronics, CD,PCB, Solar cell panel, Advertising



Product Specification



Mesh Count Diameter (Mesh/cm μm) Mesh Count(Mesh/inch) Weave Aperture(μm) Thread Diameter(μm) Opening Thickness
13-150PW(SL) 33 1:1 619 150 64 300
21-80PW(S) 55 1:1 296 80 69 120
21-150PW(SL) 55 1:1 326 150 46 260
24-100PW(T) 60 1:1 316 100 57 136
28-140PW(SL) 70 1:1 217 140 40 195
32-55PW(S) 81 1:1 257 55 67 103
32-64PW(S) 81 1:1 248 64 63 95
32-100PW(T) 81 1:1 212 100 45 165
36-90PW(T) 92 1:1 183 90 44 150
39-55PW(S) 100 1:1 177 55 56 88
40-80PW(T) 103 1:1 166 80 44 133
43-80PW(T) 110 1:1 149 80 41 130
47-45PW(S) 120 2:2 166 45*2 61 80
47-55PW(S) 120 1:1 152 55 51 88
48-70PW(T) 122 1:1 133 70 41 115
53-45PW(S) 135 2:2 143 45*2 57 79
53-55PW(S) 135 1:1 133 55 50 86
54-64PW(T) 137 1:1 115 64 39 100
54-70PW(HD) 137 1:1 109 70 35 116
61-64PW(T) 155 1:1 90 64 31 101
64-55PW(S) 160 1:1 98 55 38 98
64-64PW(T) 160 1:1 85 64 30 115
68-55PW(S) 175 1:1 85 55 34 85



How to choose



specification Usage
24T Beach towels,Pennant inks,Giltter inks,Thicker inks
34T,36T,39T,43T Textile inks,Opaque inks textile,T-shirts
49T,48T,54T,55T Textile inks,Finer textile design,Water based inks
62T,64T,68T,72T Enamel inks,Very fine textile ink or course plastisol ink printing
77T Paper & Board inks & textile
90T,100T Vinyl inks,Plastic inks,Plastisol inks,Solvent based
110T,120T,140T Halftone printing,Paper & Board Vinyl Plastic




FAQ

1. What is your MOQ?

We are a factory-foreign trade integration company, so we can meet whatever quantity you need, we have no minimum order!

2. What is your packaging method?

We usually package as follow:

1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen

3. Do you provide samples ?

We can provide samples to you for free but you have to pay the cost of freight.
