HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Standing Temperature: | 70 To 260 | Product Name: | Screen Printing Material 4×4 MM Hole Teflen PTFE Conveyor Dryer Belt For Food Industry |
---|---|---|---|
Width: | Any Width Is OK | Length: | As Your Requirements |
Hole Size: | 4×4 MM | Usage: | Dryer Conveyor Belt |
High Light: | 4×4mm conveyor belt dryer screen printing,PTFE conveyor dryer belt,PTFE conveyor belt dryer screen printing |

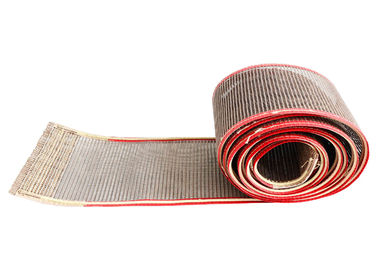

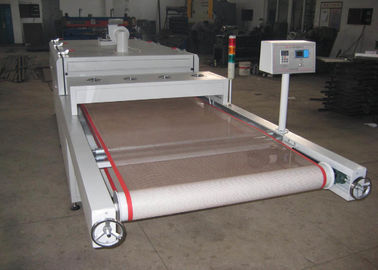

Screen Printing Material 4×4 MM Hole Teflen PTFE Conveyor Dryer Belt For Food Industry
Description of the teflen conveyor belt:
PTFE conveyor belt is an important accessory in the printing process. We provide a variety of printing materials, including printing screen mesh, printing squeegees, printing screen frames, and Teflen screens. Teflen conveyor belt is one of the best-selling products. Our Teflen conveyors come in many sizes. For example: the aperture has 1 * 1mm, 2 * 2mm, 4 * 4mm, 10 * 10mm, etc. We can customize various lengths and widths.
Our PTFE belt have sell allover the world,
Standing Temperature:70 to 260
Band name:R&K
Length:As your requirements
Place of original:Hebei,China
Weight:120-160g/m2
Size:1mm,2mm,4mm,10mm
Standing Temperature | 70 to 260 |
Band name | R&K |
Place of original | Hebei,China |
Weight | 120-160g/m2 |
Color | Any color is ok |
1%Elongation(kg/cm) | 390/320 |
Features | Acid Resistance |
Features of the teflen conveyor belt:
1.teflen is weather-resistant and anti-aging.
2. teflen conveyor belt is non-adhesive.
3. teflen conveyor belt has good dimensional stability
4. Anti-bending fatigue can be used for smaller wheel diameter.
5. Fire retardant.
6. Breathability
Specification of the teflen conveyor belt:

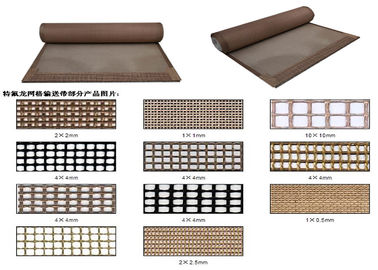

Mesh Size | Thickness | Weight | temperature resistance | Max width | Tensile Strength |
1*1mm | 0.5mm | 370g/ m2 | -70 -260 ℃ | 4m | 310/290N/cm |
2*2mm | 0.7mm | 450g/ m2 | -70 -260 ℃ | 4m | 350/310N/cm |
4*4mm | 1.0mm | 400g/ m2 | -70 -260 ℃ | 4m | 390/320N/cm |
4*4mm | 1.2mm | 600g/ m2 | -70 -260 ℃ | 4m | 895/370N/cm |
10*10mm | 1.2mm | 450g/ m2 | -70 -260 ℃ | 4m | 360/300N/cm |
0.5*1mm | 0.5mm | 420g/ m2 | -70 -260 ℃ | 4m | 310/290N/cm |
2*2.5mm | 0.9mm | 600g/ m2 | -70 -260 ℃ | 4m | 390/320N/cm |
Application of the teflen conveyor belt:
