Home ProductsScreen Printing Squeegee

50*9MM Roll 75A Silk Screen Printing Materials

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

50*9MM Roll 75A Silk Screen Printing Materials

China 50*9MM Roll 75A Silk Screen Printing Materials supplier
50*9MM Roll 75A Silk Screen Printing Materials supplier 50*9MM Roll 75A Silk Screen Printing Materials supplier 50*9MM Roll 75A Silk Screen Printing Materials supplier

Large Image :  50*9MM Roll 75A Silk Screen Printing Materials

Product Details:

Place of Origin: Hebei China
Brand Name: R&K
Certification: ISO9001:2008,SGS,FDA
Model Number: Y1734

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: stretch film and carton box.
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.
Supply Ability: 1000units per week
Contact Now
Detailed Product Description
Product Name: White Color Screen Printing Material 50 * 9 MM Printing Squeegee Roll Application: Ceramic,glass,bottle,textile,elecronic Ect
Color: White Length: 4000mm Per Roll
Thickness: 9mm Width: 50mm
High Light:

75A silk screen printing materials

,

50*9mm silk screen printing materials



White Color Screen Printing Material 50 * 9 MM Printing Squeegee Roll





How to choose the right screen printing scraper:


1. Select hardness: A hardness tester measures the hardness of the rubber of the squeegee. This hardness means how much pressure is used to pass the ink through the screen. The greater the hardness, the less the rubber blade bends. Therefore, the lower the rubber hardness, the more the squeegee blade will bend.
2Choice of the shape of the cut surface: The shape of the cut surface of the rubber scraper refers to the shape of the cross-sectional surface of the end where the rubber scraper contacts the screen, which determines the amount of pressure on the surface of the substrate material. Different cut planes can make the ink flow more or less, thus affecting the thickness of the printed ink layer. The shape of the squeegee's cut surface also determines the adaptability of the squeegee to the surface of the printing material, and directly affects the amount of printing ink and the fineness of the printed image. The sharper the printing end of the squeegee, the less the excess ink flow, the better the resolution of the printed image, and the better the printing resolution, the thicker the printing ink layer.



Screen Printing Squeegee Instruction :



Product name White Color Screen Printing Material 50 * 9 MM Printing Squeegee Roll
width 50MM
thickness 9MM
hardness 80A.75A,
length 4000mm





Screen Printing squeegee specificaion for reference:



Color Hardness Shore A
Red or natural Soft 50-65
Green Medium 70-75
Blue Hard 80-85
White Super hard 90-95
Green/White/Green Triple medium 75/90/75
Red/White/Red Soft medium 65/90/65





Item name Thickness*Width*Length Color Sharp Hardness

squeegee







Blade



5*20*4000 Red Flat 60A to 90A
5*25*4000 Red Flat 60A to 90A
5*25*4000 Red Flat 60A to 90A
5*35*4000 Yellow Flat 60A to 90A
7*35*4000 Yellow Flat 60A to 90A
7*50*4000 Blue Flat 60A to 90A
9*50*4000 Green Flat 60A to 90A
10*50*4000 Coffee Flat 40A to 90A

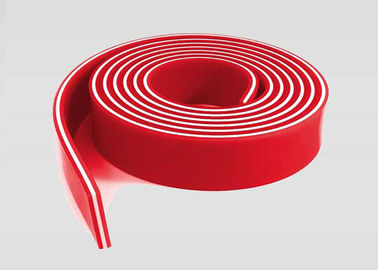

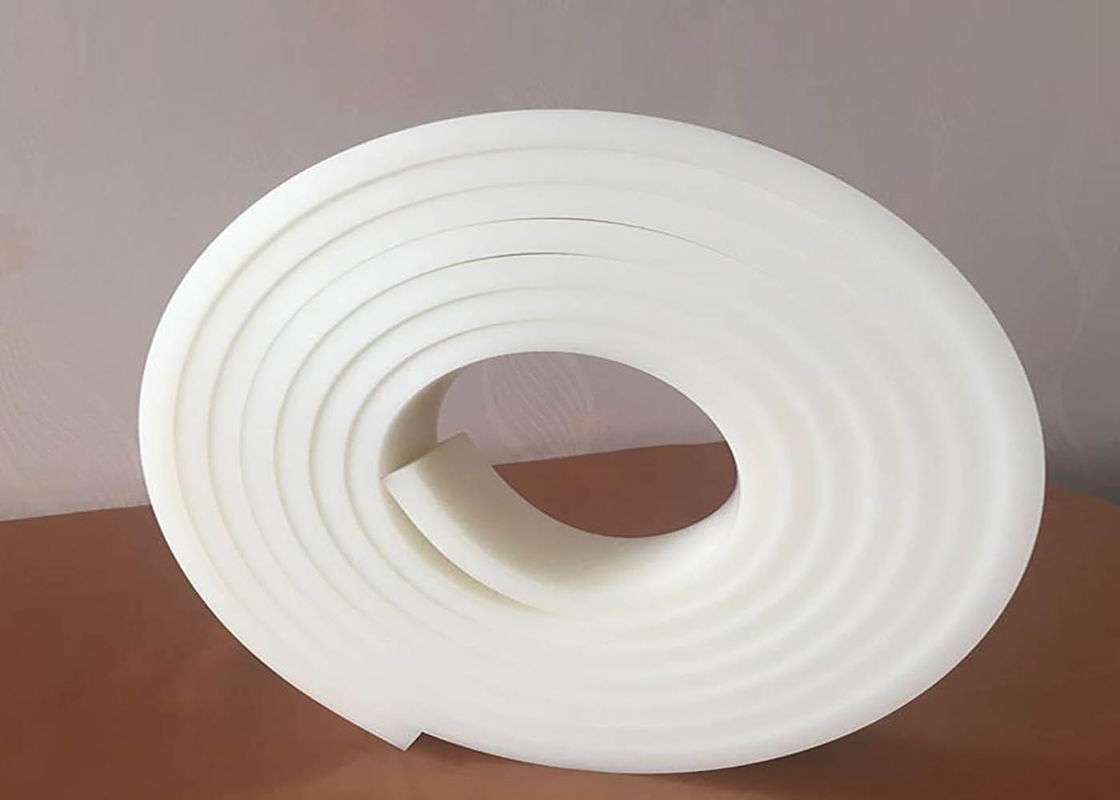

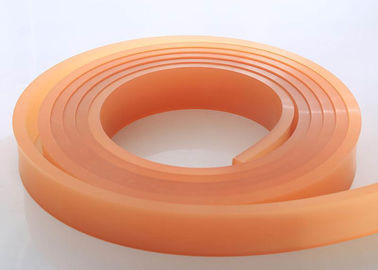

Photo for the screen printing squeegee:



50*9MM Roll 75A Silk Screen Printing Materials 0
