Product Details:
Payment & Shipping Terms:
|
Material: | 304 Stainless Steel | Name: | 304 Architectural Wire Mesh Stainless Steel 304 Knitted Wire Mesh Panels For Filters |
---|---|---|---|
Color: | Silver | Type: | Wire Cloth |
Weave Style: | Plain Weave | Application: | Woven Wire Mesh |
Product Name: | Stainless Steel Wire Mesh Screen Use In Centrifuge | ||
High Light: | galvanized woven wire mesh,woven wire cloth mesh |

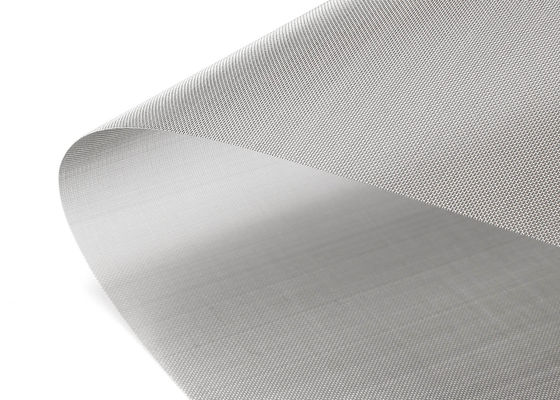

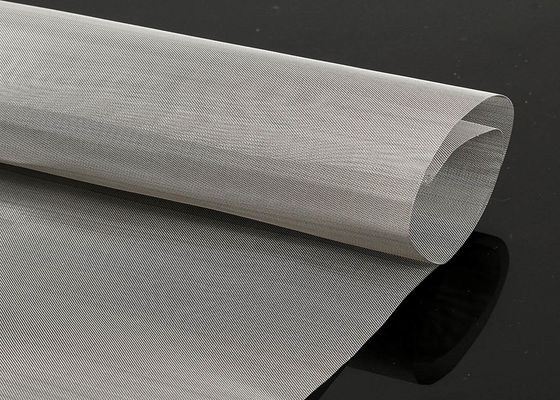

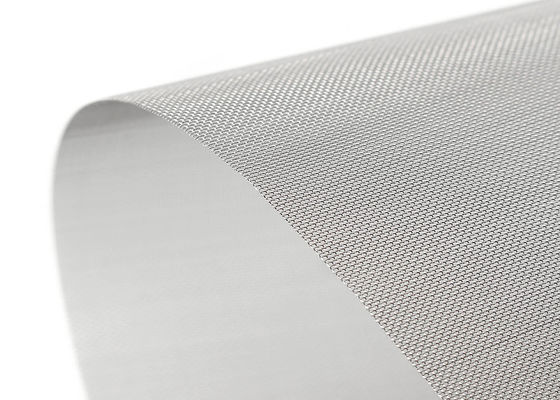

304 Architectural Wire Mesh Stainless Steel 304 Knitted Wire Mesh Panels For Filters
Description of 304 stainless steel wire mesh
The stainless steel mesh is made of 304, 304L, 316, 316L, 310,310s workers made of other metal wires, with a smooth surface, no rust, corrosion resistance, non-toxic, healthy and environmentally friendly. Uses: hospitals, pasta, barbecue, life-use flower baskets, fruit basket series are mainly made of stainless steel mesh, using electrolytic polishing technology for surface treatment, the surface is as bright as a mirror.
Stainless steel mesh
Material: stainless steel wire mesh, copper wire mesh, I-shaped mesh, stainless steel sintered mesh, stainless steel wire mesh, metal mesh, metal mesh, perforated metal mesh and other metal meshes.
Stainless steel mesh wrap
Hemming material: stainless steel plate.
Product shape: rectangle, square, circle, oval, circle, rectangle, hat, waist and special shape
Stainless steel welded wire mesh
Material: stainless steel wire mesh, copper wire mesh, I-shaped mesh, stainless steel sintered wire mesh, stainless steel wire mesh, metal mesh, metal mesh, perforated metal mesh and other metal meshes.
Product structure: single-layer, double-layer, three-layer, four-layer, five-layer, multi-layer.
Processing size: 6mm to 650mm.
Category: single filter paper, multi-point welding filter paper, packet filter paper, combined filter paper.
Stainless steel mesh tube
Material: stainless steel wire mesh, stainless steel wire mesh.
Features: It is made of single-layer or multi-layer metal mesh, and the mesh is composed of metal wire mesh layers and, depending on the conditions of use and purpose, concentricity,
Withstand pressure, good straightness, stainless steel quality, no burrs, and long service life.
Feature of stainless steel woven wire mesh screen
Multiple micron sizes
Extreme chemical resistance
Can be used for extremely hot or cold liquids
Easily match forms and accessories
Separate from other items to ensure excellent arrival
Great ion exchange resin or fiber media dry cleaning media
Can be customized by size
Durable
Suitable for most liquids
Easy to clean
Usage of stainless steel wire mesh
Stainless steel wire mesh has excellent acid resistance, alkali resistance, heat resistance, corrosion resistance and high strength. It is widely used in the filtration of automotive, plastic rubber, chemical fiber textile, chemical, petroleum and other equipment.
Stainless steel wire mesh technical information
1) Reel size: usually, the length is 30 meters (up to 200 meters), the width is 36 feet 48 inches, 1 meter, 1.2 meters, 1.5 meters, 2.0 meters, etc., or cut into length plates according to customer requirements.
2) Packing: waterproof paper, woven bag, can also be made according to customer requirements.
3) Weaving: plain weave, twill weave; Dutch pure Dutch weave, Dutch twill weave.
4) Number of grids: 1 to 635 mesh.
5) Sample: available
Parameter of stainless steel mesh
mesh | Wire Diameter | Aperture | Open Area | Weight | ||
Inch | MM | Inch | MM | (%) | (kg /Square meter) | |
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
8X8 | 0.02 | 0.5 | 0.105 | 2.675 | 71 | 1 |
9X9 | 0.02 | 0.5 | 0.091 | 2.32 | 67.7 | 1.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
12X12 | 0.022 | 0.55 | 0.062 | 1.567 | 54.8 | 1.815 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
14X14 | 0.0177 | 0.45 | 0.054 | 1.36 | 75.14 | 1.417 |
16X16 | 0.016 | 0.4 | 0.047 | 1.188 | 55 | 1.28 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 71.2 | 1.6 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 69.4 | 1.6 |
20X20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
20X20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
20X20 | 0.014 | 0.35 | 0.036 | 0.92 | 52.5 | 1.225 |
20X20 | 0.016 | 0.4 | 0.034 | 0.87 | 46.9 | 1.6 |
20X20 | 0.0177 | 0.45 | 0.0322 | 0.82 | 41.7 | 2.025 |
22X22 | 0.012 | 0.3 | 0.034 | 0.854 | 54.76 | 0.99 |
24X24 | 0.014 | 0.35 | 0.028 | 0.708 | 44.77 | 1.47 |
30X30 | 0.014 | 0.35 | 0.0195 | 0.5 | 34.6 | 1.84 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 63.9 | 1.4 |
30X30 | 0.0094 | 0.24 | 0.0243 | 0.62 | 72.1 | 0.84 |
35X35 | 0.0079 | 0.2 | 0.021 | 0.526 | 52.5 | 0.7 |
35X35 | 0.0098 | 0.25 | 0.0187 | 0.475 | 42.92 | 1.09 |
40X40 | 0.0079 | 0.2 | 0.017 | 0.435 | 46.9 | 0.8 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
40X40 | 0.014 | 0.35 | 0.011 | 0.285 | 20.14 | 2.45 |
50X50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
50X50 | 0.0079 | 0.2 | 0.012 | 0.308 | 36.76 | 1 |
60X60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
60X60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
60X60 | 0.007 | 0.18 | 0.0096 | 0.243 | 33 | 0.972 |
80X80 | 0.047 | 0.12 | 0.0078 | 0.1975 | 38.7 | 0.576 |
80X80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
100X100 | 0.0039 | 0.1 | 0.006 | 0.154 | 36.76 | 0.5 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
100X100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
120X120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
120X120 | 0.003 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.384 |
150X150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
150X150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
165X165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
180X180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
180X180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
200X200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
200X200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
250X250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
270X270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
300X300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
325X325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
400X400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
500X500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
500X500 | 0.0012 | 0.03 | 0.0008 | 0.0208 | 16.76 | 0.225 |
635X635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
