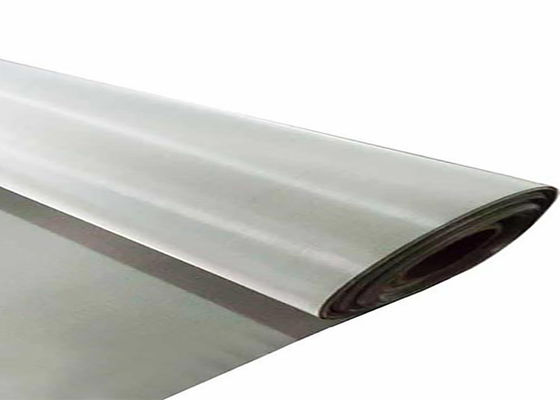

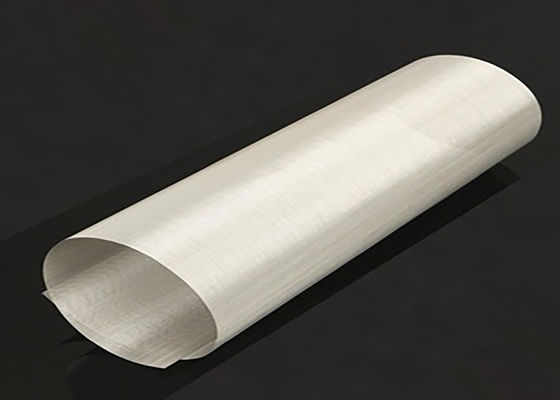

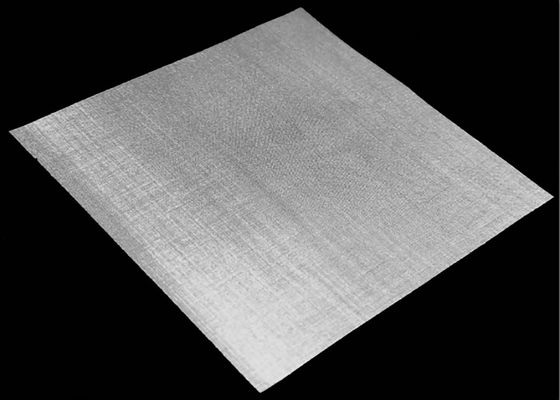

18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh

18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh
18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh 18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh 18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh

Large Image :  18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh

Product Details:
Place of Origin: Hebei
Brand Name: R&K
Certification: SGS
Model Number: SS-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 squaremeter
Price: Negotiate
Packaging Details: inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time: 5-8 workday
Payment Terms: L/C, D/P, T/T, Western Union,PayPal
Supply Ability: 1000 squaremeter per week
Detailed Product Description
Material: 304 Stainless Steel Usage: Filter / Chmical Industry
Weave Style: Plain Weave Technique: Woven
Color: Silver Advantage: Superior Wire
High Light:

SGS Filter Screen Mesh

,

18 Gauge Filter Screen Mesh

,

4X4 Filter Screen Mesh

18 Gauge Filter Screen Mesh , Fine Steel Wire Mesh Corrosion Resistance Superior Wire



Description of the stainless steel mesh



Our factory produces stainless steel wire mesh with SUS302, 304, 316, 304L and 316L stainless steel wire materials.

Typical weaving patterns for stainless steel wire mesh: plain weave, twill weave, Dutch weave.

General use: stainless steel wire mesh, with excellent acid, alkali, heat and corrosion resistance, widely used in oil, chemical, food, pharmaceutical processing, mining, metallurgy, solid, liquid and gas sorting and screening, airspace , machine manufacturing, etc.



Stainless steel: stainless steel, with wear resistance, heat resistance, acid resistance and corrosion resistance. Many different grades of stainless steel are used for wire cloth. T304 is the most common, but others are used for specific applications to take advantage of the unique properties of each grade. Wire mesh made of stainless steel is widely used in the mining, chemical, food and pharmaceutical industries.
Our stainless steel wire mesh products are generally made of stainless steels 302, 304, 304L, 316, 316L, 321 and 430. We produce wire mesh in various forms. Weaving is determined according to the specific requirements of the customer, such as material, wire diameter, mesh size, width and length.

Plain weave: Each weft thread passes through one and one warp thread, each warp thread passes through one and one weft thread, and each weft thread has warp threads of the same diameter.
Features: square hole, high circulation, relatively high opening area, so the pressure drop during filtration is small, suitable for various filtration below 63μm.



Stainless steel mesh according to weaving classification:



1. plain weave

2. twill weave

3. stainless steel wire mesh, split plain weave. Twill weave, stainless steel wire mesh size 20 mesh - 630 mesh. Material: SUS304, 304l, SUS316, SUS316L, 31 0, 310S, SUS302, etc.

Feature of stainless steel mesh



Stainless steel is resistant to high temperatures, acids, corrosion and abrasion. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical, etc., mainly used for gas, liquid filter and other media separation.



Stainless steel is resistant to high temperatures, acids, corrosion and abrasion. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical, etc., mainly used for gas, liquid filter and other media separation.



Main purpose of stainless steel mesh:



► Chemicals: acid-base solution filtration, chemical experiments, chemical particle filtration, corrosive gas filtration, corrosive dust filtration, etc.

► Petroleum: petroleum purification, oil slurry filtration, separation of impurities, etc.

► Medicine: Chinese medicine decoction filtration, solid particle filtration, drug purification, etc.

► Electronics: circuit board structure frame, electronic components, acid and alkali batteries, radiation protection modules, etc.

► Printing: ink filtration, toner filtration, toner purification, etc.

► Machinery: vibrating screen, etc.



Parameter of stainless steel mesh



mesh Wire Diameter Aperture Open Area Weight
Inch MM Inch MM (%) (kg /Square meter)
1x1 0.08 2.03 0.92 23.37 92 2
2X2 0.063 1.6 0.437 11.1 87.4 2.5
3X3 0.054 1.37 0.279 7.09 83.8 2.7
4X4 0.047 1.19 0.203 5.16 81.2 2.7
5X5 0.041 1.04 0.159 4.04 79.5 2.6
8X8 0.02 0.5 0.105 2.675 71 1
9X9 0.02 0.5 0.091 2.32 67.7 1.1
10X10 0.025 0.64 0.075 1.91 74.9 2
12X12 0.02 0.508 0.063 1.6 75.9 1.5
12X12 0.022 0.55 0.062 1.567 54.8 1.815
14X14 0.02 0.508 0.051 1.3 71.9 1.8
14X14 0.0177 0.45 0.054 1.36 75.14 1.417
16X16 0.016 0.4 0.047 1.188 55 1.28
16X16 0.018 0.457 0.0445 1.13 71.2 1.6
18X18 0.017 0.432 0.0386 0.98 69.4 1.6
20X20 0.02 0.24 0.03 0.76 76 0.56
20X20 0.016 0.33 0.034 0.86 72.2 1.1
20X20 0.014 0.35 0.036 0.92 52.5 1.225
20X20 0.016 0.4 0.034 0.87 46.9 1.6
20X20 0.0177 0.45 0.0322 0.82 41.7 2.025
22X22 0.012 0.3 0.034 0.854 54.76 0.99
24X24 0.014 0.35 0.028 0.708 44.77 1.47
30X30 0.014 0.35 0.0195 0.5 34.6 1.84
30X30 0.012 0.305 0.0213 0.54 63.9 1.4
30X30 0.0094 0.24 0.0243 0.62 72.1 0.84
35X35 0.0079 0.2 0.021 0.526 52.5 0.7
35X35 0.0098 0.25 0.0187 0.475 42.92 1.09
40X40 0.0079 0.2 0.017 0.435 46.9 0.8
40X40 0.01 0.254 0.015 0.38 59.9 1.3
40X40 0.014 0.35 0.011 0.285 20.14 2.45
50X50 0.0055 0.14 0.0145 0.368 72.4 0.48
50X50 0.0079 0.2 0.012 0.308 36.76 1
60X60 0.0047 0.12 0.012 0.303 71.6 0.42
60X60 0.0059 0.15 0.0107 0.273 64.5 0.65
60X60 0.007 0.18 0.0096 0.243 33 0.972
80X80 0.047 0.12 0.0078 0.1975 38.7 0.576
80X80 0.0055 0.14 0.0069 0.117 45.5 0.76
100X100 0.0039 0.1 0.006 0.154 36.76 0.5
100X100 0.0045 0.114 0.0055 0.14 55.1 0.59
100X100 0.004 0.102 0.006 0.152 59.8 0.49
120X120 0.0028 0.07 0.0057 0.147 67.7 0.29
120X120 0.003 0.08 0.0052 0.132 38.7 0.384
150X150 0.0024 0.06 0.0043 0.11 64.7 0.26
150X150 0.0028 0.07 0.0039 0.1 58.8 0.38
165X165 0.0019 0.05 0.0041 0.104 67.5 0.2
180X180 0.0019 0.05 0.0035 0.091 64.5 0.22
180X180 0.0024 0.06 0.0031 0.081 57.4 0.32
200X200 0.0019 0.05 0.003 0.077 60.6 0.24
200X200 0.0024 0.06 0.0026 0.067 52.7 0.35
250X250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270X270 0.0016 0.04 0.0021 0.054 57.4 0.21
300X300 0.0016 0.04 0.0018 0.045 53.5 0.23
325X325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400X400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500X500 0.0009 0.025 0.001 0.0258 50.7 0.15
500X500 0.0012 0.03 0.0008 0.0208 16.76 0.225
635X635 0.0007 0.018 0.0008 0.022 55 0.1





18 Gauge Fine Steel Wire SGS 4X4 Filter Screen Mesh 0
