Product Details:
Payment & Shipping Terms:
|
Usage: | Filter | Weave Style: | Plain Weave / Twill Weave |
---|---|---|---|
Aperture: | 500 Micron | Color: | Silver |
Advantage: | High Strength | Type: | Wire Cloth |
Hole Shape: | Square Hole | Material: | SUS Stainless Steel |
High Light: | woven wire cloth mesh,woven wire mesh sheets |

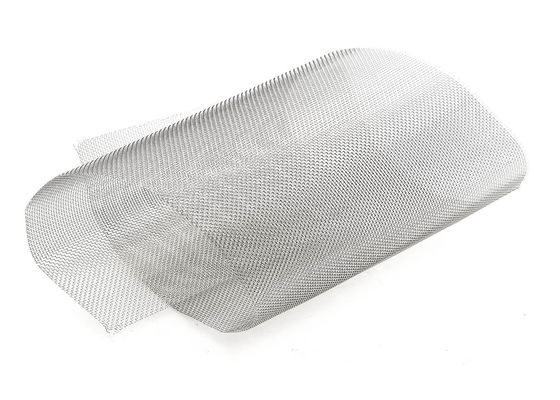

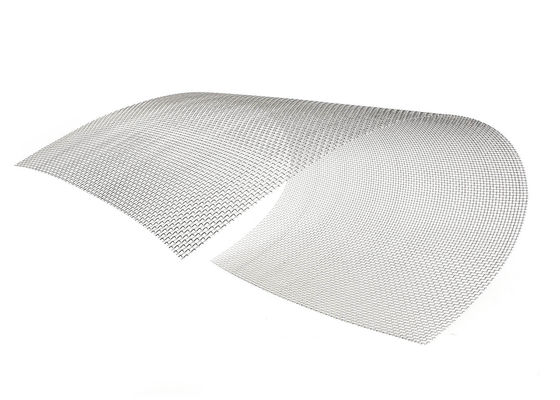

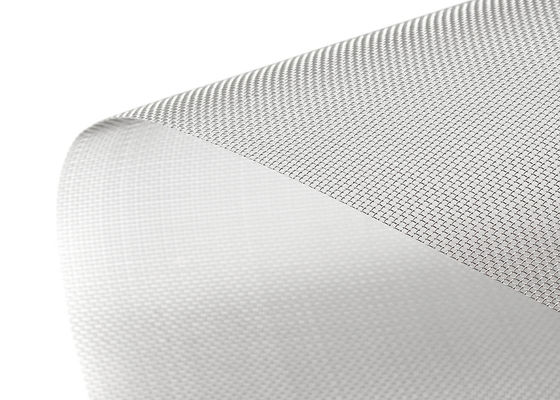

SUS 316 Plain Wave Stainless Steel Screen Wire Mesh Filters For Chmical Industry
Stainless steel wire cloth, also known as stainless steel wire mesh, barbed wire, is widely used for filtering. They are also used as screens, filler plates, window guards, vibrating screens, wall coverings and cabinet decorations.
Wire mesh has the ability to perform in an industrial environment, can enhance the aesthetics of architectural design and has multiple functions, which can meet multiple functions. Usually contained in signs, railing fillers, cabinet linings, factory screens, and in other applications.
Stainless steel wire mesh
Material: SUS304, SUS316, SUS316L.SUS309, SUS310S
Type: plain weave, twill weave, Dutch weave.
Mesh: 1-625 mesh (ordinary size: 80 mesh, 100 mesh, 150 mesh, 250 mesh, 300 mesh, 325 mesh)
Aperture: 11-0.026mm
Standard size: width: 0.1-8 meters, length: 10 meters, 15 meters, 30 meters
Uses: used in petroleum, chemical, mining, aerospace, food industry, environmental protection
Woven wire mesh has a variety of materials, wire diameter, mesh, weaving methods, can be cut into special plates according to application and engineering requirements.
Parameter of stainless steel mesh
mesh | Wire Diameter | Aperture | Open Area | Weight | ||
Inch | MM | Inch | MM | (%) | (kg /Square meter) | |
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
8X8 | 0.02 | 0.5 | 0.105 | 2.675 | 71 | 1 |
9X9 | 0.02 | 0.5 | 0.091 | 2.32 | 67.7 | 1.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
12X12 | 0.022 | 0.55 | 0.062 | 1.567 | 54.8 | 1.815 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
14X14 | 0.0177 | 0.45 | 0.054 | 1.36 | 75.14 | 1.417 |
16X16 | 0.016 | 0.4 | 0.047 | 1.188 | 55 | 1.28 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 71.2 | 1.6 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 69.4 | 1.6 |
20X20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
20X20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
20X20 | 0.014 | 0.35 | 0.036 | 0.92 | 52.5 | 1.225 |
20X20 | 0.016 | 0.4 | 0.034 | 0.87 | 46.9 | 1.6 |
20X20 | 0.0177 | 0.45 | 0.0322 | 0.82 | 41.7 | 2.025 |
22X22 | 0.012 | 0.3 | 0.034 | 0.854 | 54.76 | 0.99 |
24X24 | 0.014 | 0.35 | 0.028 | 0.708 | 44.77 | 1.47 |
30X30 | 0.014 | 0.35 | 0.0195 | 0.5 | 34.6 | 1.84 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 63.9 | 1.4 |
30X30 | 0.0094 | 0.24 | 0.0243 | 0.62 | 72.1 | 0.84 |
35X35 | 0.0079 | 0.2 | 0.021 | 0.526 | 52.5 | 0.7 |
35X35 | 0.0098 | 0.25 | 0.0187 | 0.475 | 42.92 | 1.09 |
40X40 | 0.0079 | 0.2 | 0.017 | 0.435 | 46.9 | 0.8 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
40X40 | 0.014 | 0.35 | 0.011 | 0.285 | 20.14 | 2.45 |
50X50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
50X50 | 0.0079 | 0.2 | 0.012 | 0.308 | 36.76 | 1 |
60X60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
60X60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
60X60 | 0.007 | 0.18 | 0.0096 | 0.243 | 33 | 0.972 |
80X80 | 0.047 | 0.12 | 0.0078 | 0.1975 | 38.7 | 0.576 |
80X80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
100X100 | 0.0039 | 0.1 | 0.006 | 0.154 | 36.76 | 0.5 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
100X100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
120X120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
120X120 | 0.003 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.384 |
150X150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
150X150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
165X165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
180X180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
180X180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
200X200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
200X200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
250X250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
270X270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
300X300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
325X325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
400X400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
500X500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
500X500 | 0.0012 | 0.03 | 0.0008 | 0.0208 | 16.76 | 0.225 |
635X635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
