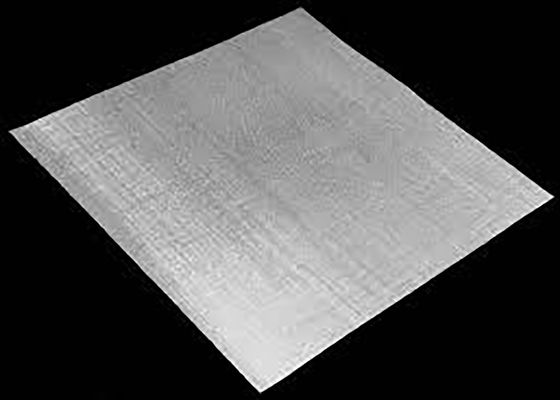

150 micron 304 stainless steel twilled woven wire mesh filter screen
Types of Woven Wire Cloth
MARKET GRADE-Wire Cloth Most common specifications of industrial wire cloth. Used in a wide variety of applications. Usually woven in a square weave or twill weave.
MILL GRADE-Wire Cloth Used mostly in sifting and sizing applications. Higher percent of open area compared to market grade, but less than that of tensile bolting. Usually woven in a square weave.
BOLTING GRADE-Wire Cloth Used in sifting and sizing applications and general filtration applications. It has a higher percentage of open area than both market and mill grade. It is typically used when maximum throughput is crucial. Usually woven in a square weave. Sometimes referred to as TBC or Tensile bolting cloth.

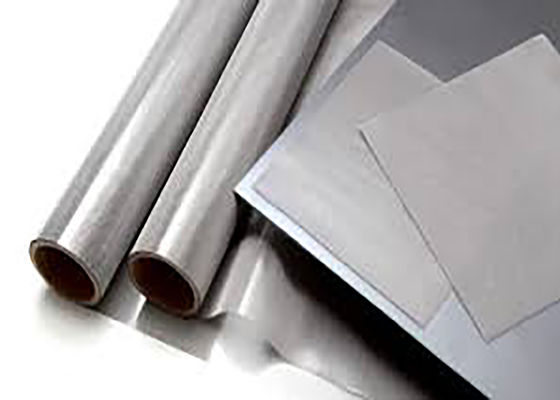

Stainless steel woven mesh roll
Production type: plain weave, twill weave, Dutch weave.
Standard length: 30 meters
Grid per inch: 1-600mesh (normal and twill), 12-2800mesh (Netherlands)
Standard width: 1000mm, 1220mm, 1535mm
Thousands of woven wire mesh for different wire and aperture, it is widely used in many industrial fields
Feature of green coated stainless steel wire mesh
Grid accurate, repeatable, wear resistant, high strength, long service life
Uniform structure, no curl, easy to use, uniform screen thickness
Antistatic, acid and alkali resistant, corrosion resistant, acid and alkali resistant, temperature resistant, abrasion resistant and other attributes.
High quality stainless steel Type 304 and 316.
Superior character of anti-corrosiveness and rust resistance.
Electrically welded for firm welding point, structure and strong collectivity.
Uniform meshes and flat even surface.
A Variety of meshes and sizes selection.
For example
- Building grid
- Filter
- Flying screen / safety net
- Food processing / drying
- Screening / Screening
- Jungle fire protection
Package of the stainless steel wire mesh
A roll wrapped in kraft paper and then placed in a carton or tray;
Sheets are in a wooden box or tray.
Parameter of stainless steel mesh
| mesh |
Wire Diameter |
Aperture |
Open Area |
Weight |
| Inch |
MM |
Inch |
MM |
(%) |
(kg /Square meter) |
| 1x1 |
0.08 |
2.03 |
0.92 |
23.37 |
92 |
2 |
| 2X2 |
0.063 |
1.6 |
0.437 |
11.1 |
87.4 |
2.5 |
| 3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
83.8 |
2.7 |
| 4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
81.2 |
2.7 |
| 5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
79.5 |
2.6 |
| 8X8 |
0.02 |
0.5 |
0.105 |
2.675 |
71 |
1 |
| 9X9 |
0.02 |
0.5 |
0.091 |
2.32 |
67.7 |
1.1 |
| 10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
74.9 |
2 |
| 12X12 |
0.02 |
0.508 |
0.063 |
1.6 |
75.9 |
1.5 |
| 12X12 |
0.022 |
0.55 |
0.062 |
1.567 |
54.8 |
1.815 |
| 14X14 |
0.02 |
0.508 |
0.051 |
1.3 |
71.9 |
1.8 |
| 14X14 |
0.0177 |
0.45 |
0.054 |
1.36 |
75.14 |
1.417 |
| 16X16 |
0.016 |
0.4 |
0.047 |
1.188 |
55 |
1.28 |
| 16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
71.2 |
1.6 |
| 18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
69.4 |
1.6 |
| 20X20 |
0.02 |
0.24 |
0.03 |
0.76 |
76 |
0.56 |
| 20X20 |
0.016 |
0.33 |
0.034 |
0.86 |
72.2 |
1.1 |
| 20X20 |
0.014 |
0.35 |
0.036 |
0.92 |
52.5 |
1.225 |
| 20X20 |
0.016 |
0.4 |
0.034 |
0.87 |
46.9 |
1.6 |
| 20X20 |
0.0177 |
0.45 |
0.0322 |
0.82 |
41.7 |
2.025 |
| 22X22 |
0.012 |
0.3 |
0.034 |
0.854 |
54.76 |
0.99 |
| 24X24 |
0.014 |
0.35 |
0.028 |
0.708 |
44.77 |
1.47 |
| 30X30 |
0.014 |
0.35 |
0.0195 |
0.5 |
34.6 |
1.84 |
| 30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
63.9 |
1.4 |
| 30X30 |
0.0094 |
0.24 |
0.0243 |
0.62 |
72.1 |
0.84 |
| 35X35 |
0.0079 |
0.2 |
0.021 |
0.526 |
52.5 |
0.7 |
| 35X35 |
0.0098 |
0.25 |
0.0187 |
0.475 |
42.92 |
1.09 |
| 40X40 |
0.0079 |
0.2 |
0.017 |
0.435 |
46.9 |
0.8 |
| 40X40 |
0.01 |
0.254 |
0.015 |
0.38 |
59.9 |
1.3 |
| 40X40 |
0.014 |
0.35 |
0.011 |
0.285 |
20.14 |
2.45 |
| 50X50 |
0.0055 |
0.14 |
0.0145 |
0.368 |
72.4 |
0.48 |
| 50X50 |
0.0079 |
0.2 |
0.012 |
0.308 |
36.76 |
1 |
| 60X60 |
0.0047 |
0.12 |
0.012 |
0.303 |
71.6 |
0.42 |
| 60X60 |
0.0059 |
0.15 |
0.0107 |
0.273 |
64.5 |
0.65 |
| 60X60 |
0.007 |
0.18 |
0.0096 |
0.243 |
33 |
0.972 |
| 80X80 |
0.047 |
0.12 |
0.0078 |
0.1975 |
38.7 |
0.576 |
| 80X80 |
0.0055 |
0.14 |
0.0069 |
0.117 |
45.5 |
0.76 |
| 100X100 |
0.0039 |
0.1 |
0.006 |
0.154 |
36.76 |
0.5 |
| 100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
55.1 |
0.59 |
| 100X100 |
0.004 |
0.102 |
0.006 |
0.152 |
59.8 |
0.49 |
| 120X120 |
0.0028 |
0.07 |
0.0057 |
0.147 |
67.7 |
0.29 |
| 120X120 |
0.003 |
0.08 |
0.0052 |
0.132 |
38.7 |
0.384 |
| 150X150 |
0.0024 |
0.06 |
0.0043 |
0.11 |
64.7 |
0.26 |
| 150X150 |
0.0028 |
0.07 |
0.0039 |
0.1 |
58.8 |
0.38 |
| 165X165 |
0.0019 |
0.05 |
0.0041 |
0.104 |
67.5 |
0.2 |
| 180X180 |
0.0019 |
0.05 |
0.0035 |
0.091 |
64.5 |
0.22 |
| 180X180 |
0.0024 |
0.06 |
0.0031 |
0.081 |
57.4 |
0.32 |
| 200X200 |
0.0019 |
0.05 |
0.003 |
0.077 |
60.6 |
0.24 |
| 200X200 |
0.0024 |
0.06 |
0.0026 |
0.067 |
52.7 |
0.35 |
| 250X250 |
0.0016 |
0.04 |
0.0024 |
0.0616 |
60.6 |
0.2 |
| 270X270 |
0.0016 |
0.04 |
0.0021 |
0.054 |
57.4 |
0.21 |
| 300X300 |
0.0016 |
0.04 |
0.0018 |
0.045 |
53.5 |
0.23 |
| 325X325 |
0.0014 |
0.035 |
0.0017 |
0.0432 |
55.3 |
0.2 |
| 400X400 |
0.0012 |
0.03 |
0.0013 |
0.0335 |
52.7 |
0.18 |
| 500X500 |
0.0009 |
0.025 |
0.001 |
0.0258 |
50.7 |
0.15 |
| 500X500 |
0.0012 |
0.03 |
0.0008 |
0.0208 |
16.76 |
0.225 |
| 635X635 |
0.0007 |
0.018 |
0.0008 |
0.022 |
55 |
0.1 |
