Product Details:
Payment & Shipping Terms:
|
Material: | 304 Stainless Steel | Usage: | Filter |
---|---|---|---|
Weave Style: | Plain Weave | Aperture: | 0.1mm |
Color: | Silver | Advantage: | Food Grade |
Type: | Wire Cloth | Hole Shape: | Square Hole |
High Light: | woven wire cloth mesh,woven wire mesh sheets |

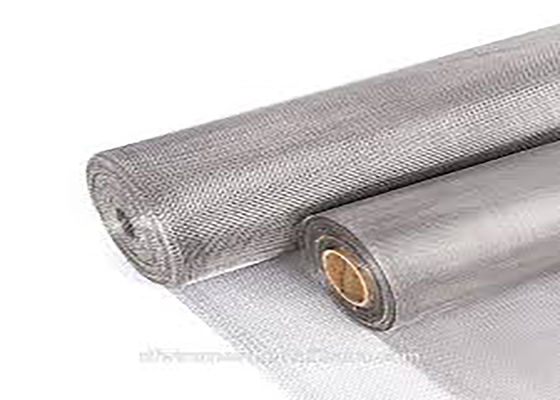

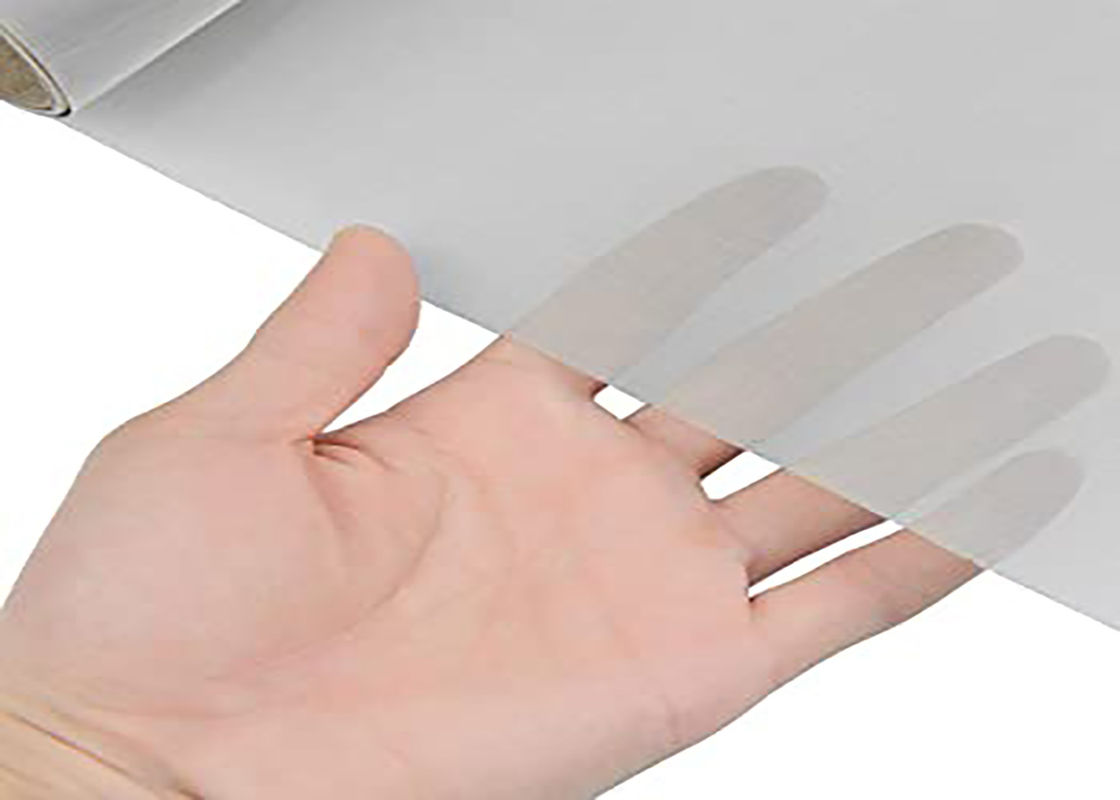

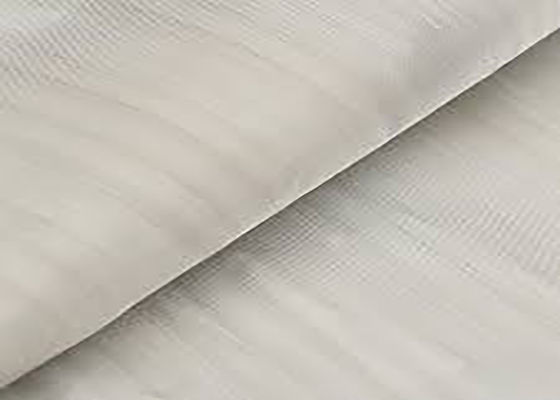

Mining 250 micron 635 mesh stainless steel woven wire mesh with excellent heat resisting
Stainless steel wire mesh is widely used in filtration, sieving, ventilation, drying, purification or separation around the world. Because of its wear resistance, heat resistance, acid resistance, corrosion resistance. We offer industries including food industry, chemical, pharmaceutical, environmental and primary industries, classic machinery and factory construction, consumer goods, and aerospace. In all industries, we offer our customers the highest standards of technical grid application consulting. We always provide you with the ideal product for every application
Product Features
Temperature resistance, acid resistance, alkali resistance.
The oil-water separation filter has a temperature resistance of 260 ° C
An acid resistance of 86%, and an alkali resistance of 90%.
Its function is to separate the water and oil in the oil.
It has a small resistance to the oil and allows the oil to pass smoothly.
It has a large resistance to the water. 10KG pressure water cannot pass through, so it plays the role of oil-water separation.
Types of Woven Wire Cloth
MARKET GRADE-Wire Cloth Most common specifications of industrial wire cloth. Used in a wide variety of applications. Usually woven in a square weave or twill weave.
MILL GRADE-Wire Cloth Used mostly in sifting and sizing applications. Higher percent of open area compared to market grade, but less than that of tensile bolting. Usually woven in a square weave.
BOLTING GRADE-Wire Cloth Used in sifting and sizing applications and general filtration applications. It has a higher percentage of open area than both market and mill grade. It is typically used when maximum throughput is crucial. Usually woven in a square weave. Sometimes referred to as TBC or Tensile bolting cloth.
Name: |
Stainless steel wire mesh,Stainless steel mesh screen,Stainless steel filter wire mesh, Metal wire mesh, Stainless steel square wire mesh |
Material: | Stainless steel wire mesh 201/304/304L/316/316L/431/321 |
mesh count: | 2-400 |
Wire diameter: | 0.05mm-1.8mm |
Width: | 0.5m-6m customized |
Feature: |
Due to high content of Ni and Cr, it is with good oxidation resistance, orrosion resistance, acid and alkali resistance, high temperature resistance. The maximum service temperature is 1200 |
Application: |
Mainly used in petroleum, electronics, chemical industry, medicine, textile, food, mahinery, building, nuclear,power, aerospace, military industry etc. |
Parameter of stainless steel mesh
mesh | Wire Diameter | Aperture | Open Area | Weight | ||
Inch | MM | Inch | MM | (%) | (kg /Square meter) | |
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
8X8 | 0.02 | 0.5 | 0.105 | 2.675 | 71 | 1 |
9X9 | 0.02 | 0.5 | 0.091 | 2.32 | 67.7 | 1.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
12X12 | 0.022 | 0.55 | 0.062 | 1.567 | 54.8 | 1.815 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
14X14 | 0.0177 | 0.45 | 0.054 | 1.36 | 75.14 | 1.417 |
16X16 | 0.016 | 0.4 | 0.047 | 1.188 | 55 | 1.28 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 71.2 | 1.6 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 69.4 | 1.6 |
20X20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
20X20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
20X20 | 0.014 | 0.35 | 0.036 | 0.92 | 52.5 | 1.225 |
20X20 | 0.016 | 0.4 | 0.034 | 0.87 | 46.9 | 1.6 |
20X20 | 0.0177 | 0.45 | 0.0322 | 0.82 | 41.7 | 2.025 |
22X22 | 0.012 | 0.3 | 0.034 | 0.854 | 54.76 | 0.99 |
24X24 | 0.014 | 0.35 | 0.028 | 0.708 | 44.77 | 1.47 |
30X30 | 0.014 | 0.35 | 0.0195 | 0.5 | 34.6 | 1.84 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 63.9 | 1.4 |
30X30 | 0.0094 | 0.24 | 0.0243 | 0.62 | 72.1 | 0.84 |
35X35 | 0.0079 | 0.2 | 0.021 | 0.526 | 52.5 | 0.7 |
35X35 | 0.0098 | 0.25 | 0.0187 | 0.475 | 42.92 | 1.09 |
40X40 | 0.0079 | 0.2 | 0.017 | 0.435 | 46.9 | 0.8 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
40X40 | 0.014 | 0.35 | 0.011 | 0.285 | 20.14 | 2.45 |
50X50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
50X50 | 0.0079 | 0.2 | 0.012 | 0.308 | 36.76 | 1 |
60X60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
60X60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
60X60 | 0.007 | 0.18 | 0.0096 | 0.243 | 33 | 0.972 |
80X80 | 0.047 | 0.12 | 0.0078 | 0.1975 | 38.7 | 0.576 |
80X80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
100X100 | 0.0039 | 0.1 | 0.006 | 0.154 | 36.76 | 0.5 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
100X100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
120X120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
120X120 | 0.003 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.384 |
150X150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
150X150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
165X165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
180X180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
180X180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
200X200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
200X200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
250X250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
270X270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
300X300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
325X325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
400X400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
500X500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
500X500 | 0.0012 | 0.03 | 0.0008 | 0.0208 | 16.76 | 0.225 |
635X635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
