410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style

410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style
410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style

Large Image :  410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style

Product Details:
Place of Origin: Hebei
Brand Name: R&K
Certification: SGS
Model Number: SS-22
Payment & Shipping Terms:
Minimum Order Quantity: 1 squaremeter
Price: Negotiate
Packaging Details: inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time: 5-8 workday
Payment Terms: L/C, D/P, T/T, Western Union,PayPal
Supply Ability: 1000 squaremeter per week
Detailed Product Description
Material: 304 Stainless Steel Usage: Filter
Weave Style: Plain Weave Aperture: 0.1mm
Color: Silver Advantage: High Temperature Resistant
Type: Wire Cloth Hole Shape: Square Hole
High Light:

woven wire cloth mesh

,

woven wire mesh sheets

410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style






There are many types of stainless steel mesh, in addition to the commonly used 304, 316, there are other categories, such as 410 material, 430 material and so on.



410 stainless steel wire mesh is magnetic and has good corrosion resistance, and 430 stainless steel wire mesh has good stress corrosion and oxidation resistance.



410/430 stainless steel wire mesh has better thermal conductivity than austenitic stainless steel series. Its thermal expansion coefficient is smaller than austenite. Thermal fatigue resistance, adding stable element titanium, the mechanical properties of welded parts are good.

Magnetic, also called magnetic stainless steel wire mesh, stainless steel wire mesh, magnetic stainless steel wire mesh.



Grade C Si Mn P S Ni Cr
SUS410 ≤0.15% ≤1.00% ≤1.00% ≤0.03% ≤0.04% ≤0.60% 11.50~13.50%
SUS430 ≤0.12% ≤0.75% ≤1.00% ≤0.040% ≤0.030% ≤0.60% 16.00~18.00%

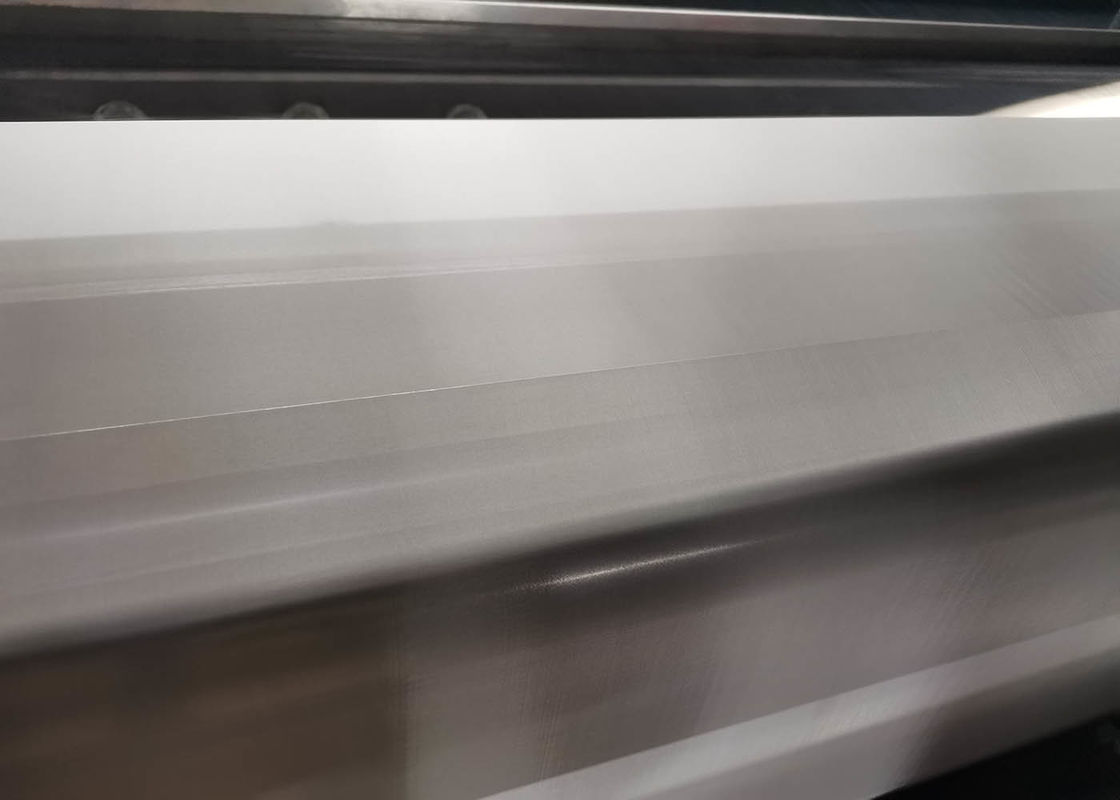

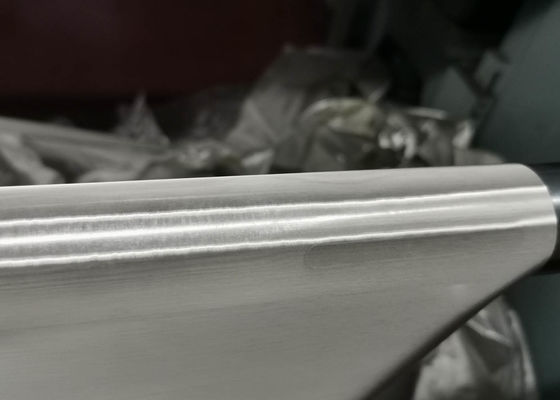

410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 0410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 1






Package of the stainless steel wire mesh

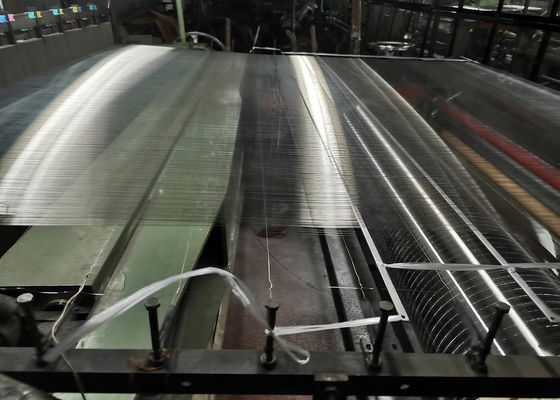

410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 2410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 3






Parameter of stainless steel mesh



mesh Wire Diameter Aperture Open Area Weight
Inch MM Inch MM (%) (kg /Square meter)
1x1 0.08 2.03 0.92 23.37 92 2
2X2 0.063 1.6 0.437 11.1 87.4 2.5
3X3 0.054 1.37 0.279 7.09 83.8 2.7
4X4 0.047 1.19 0.203 5.16 81.2 2.7
5X5 0.041 1.04 0.159 4.04 79.5 2.6
8X8 0.02 0.5 0.105 2.675 71 1
9X9 0.02 0.5 0.091 2.32 67.7 1.1
10X10 0.025 0.64 0.075 1.91 74.9 2
12X12 0.02 0.508 0.063 1.6 75.9 1.5
12X12 0.022 0.55 0.062 1.567 54.8 1.815
14X14 0.02 0.508 0.051 1.3 71.9 1.8
14X14 0.0177 0.45 0.054 1.36 75.14 1.417
16X16 0.016 0.4 0.047 1.188 55 1.28
16X16 0.018 0.457 0.0445 1.13 71.2 1.6
18X18 0.017 0.432 0.0386 0.98 69.4 1.6
20X20 0.02 0.24 0.03 0.76 76 0.56
20X20 0.016 0.33 0.034 0.86 72.2 1.1
20X20 0.014 0.35 0.036 0.92 52.5 1.225
20X20 0.016 0.4 0.034 0.87 46.9 1.6
20X20 0.0177 0.45 0.0322 0.82 41.7 2.025
22X22 0.012 0.3 0.034 0.854 54.76 0.99
24X24 0.014 0.35 0.028 0.708 44.77 1.47
30X30 0.014 0.35 0.0195 0.5 34.6 1.84
30X30 0.012 0.305 0.0213 0.54 63.9 1.4
30X30 0.0094 0.24 0.0243 0.62 72.1 0.84
35X35 0.0079 0.2 0.021 0.526 52.5 0.7
35X35 0.0098 0.25 0.0187 0.475 42.92 1.09
40X40 0.0079 0.2 0.017 0.435 46.9 0.8
40X40 0.01 0.254 0.015 0.38 59.9 1.3
40X40 0.014 0.35 0.011 0.285 20.14 2.45
50X50 0.0055 0.14 0.0145 0.368 72.4 0.48
50X50 0.0079 0.2 0.012 0.308 36.76 1
60X60 0.0047 0.12 0.012 0.303 71.6 0.42
60X60 0.0059 0.15 0.0107 0.273 64.5 0.65
60X60 0.007 0.18 0.0096 0.243 33 0.972
80X80 0.047 0.12 0.0078 0.1975 38.7 0.576
80X80 0.0055 0.14 0.0069 0.117 45.5 0.76
100X100 0.0039 0.1 0.006 0.154 36.76 0.5
100X100 0.0045 0.114 0.0055 0.14 55.1 0.59
100X100 0.004 0.102 0.006 0.152 59.8 0.49
120X120 0.0028 0.07 0.0057 0.147 67.7 0.29
120X120 0.003 0.08 0.0052 0.132 38.7 0.384
150X150 0.0024 0.06 0.0043 0.11 64.7 0.26
150X150 0.0028 0.07 0.0039 0.1 58.8 0.38
165X165 0.0019 0.05 0.0041 0.104 67.5 0.2
180X180 0.0019 0.05 0.0035 0.091 64.5 0.22
180X180 0.0024 0.06 0.0031 0.081 57.4 0.32
200X200 0.0019 0.05 0.003 0.077 60.6 0.24
200X200 0.0024 0.06 0.0026 0.067 52.7 0.35
250X250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270X270 0.0016 0.04 0.0021 0.054 57.4 0.21
300X300 0.0016 0.04 0.0018 0.045 53.5 0.23
325X325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400X400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500X500 0.0009 0.025 0.001 0.0258 50.7 0.15
500X500 0.0012 0.03 0.0008 0.0208 16.76 0.225
635X635 0.0007 0.018 0.0008 0.022 55 0.1



410 430 Material Stainless Steel Wire Mesh Woven Wire Mesh Plain Weave Style 4
