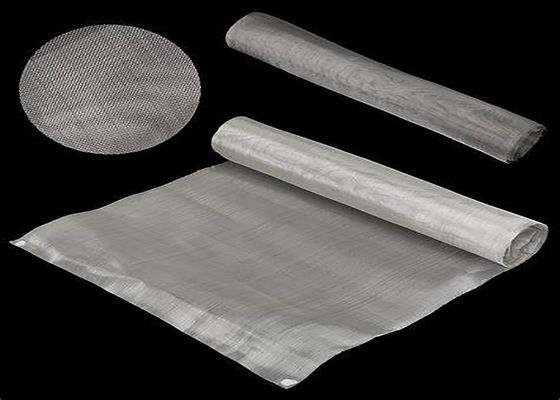

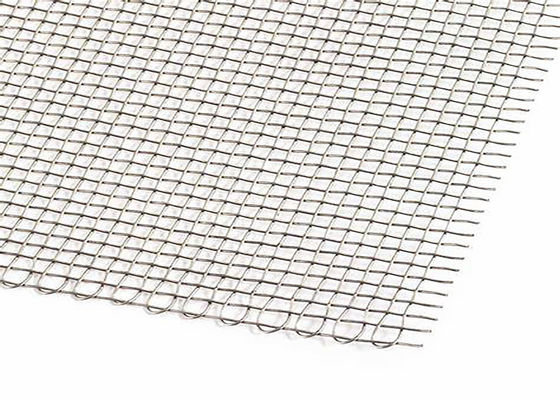

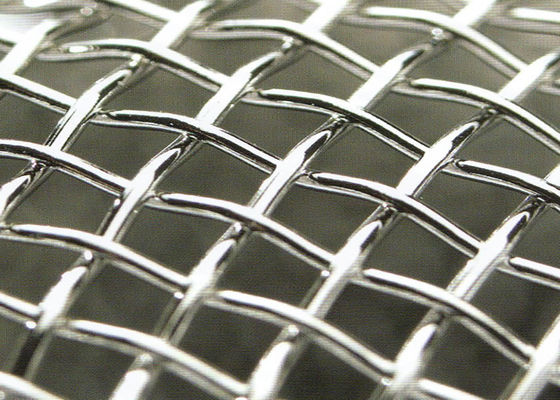

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Large Image : 18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Product Details:

Place of Origin:	China
Brand Name:	R&K
Certification:	SGS
Model Number:	18 mesh

Payment & Shipping Terms:

Minimum Order Quantity:	30 squaremeter
Price:	Negotiate
Packaging Details:	plastic bag ,Outer package:carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	30 squaremeter per day

Contact Now

Detailed Product Description

Material:	304 Stainless Steel Wire Mesh	Color:	Silver
Mesh:	18 Mesh	Width:	Max To 2.5 Meter
Length:	Normal 30 Meters	Advantage:	Preservative
High Light:	galvanized woven wire mesh , woven wire mesh sheets

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Wire mesh can be used for various screening, construction, protection and filtration applications. In addition, the wire cloth also helps: EMI/FEI shielding, belt manufacturing, light diffusion, heat and flame diffusion, plastic extrusion, banknotes and banknote watermarks, and optical lens manufacturing.

Industrial wire mesh and wire mesh applications include: construction screens, HVAC units, discharge of pulp and other mixtures, and sorting and screening machines.

There are many types of stainless steel nets, and some nets are used for decoration. Applications include residential fireplace guards, residential and commercial kitchen cabinets. By comparing the material with the opening size of the mesh itself, a hard cloth can also be used to determine the particle size of the material.

Some screens can also serve some industries, including electronics, mining, industrial manufacturing, battery manufacturing, automobile manufacturing, food and beverage, pulp and paper, petrochemical processing, HVAC, pharmaceuticals, flooring, mining, household appliances and screens print.

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter 0

Package

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter 1

Specification

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
