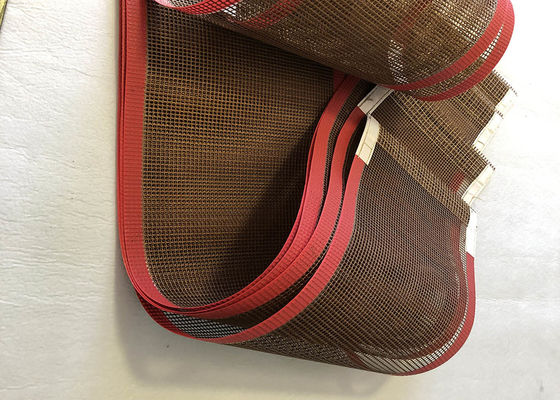

High Temperature 260℃ Composite Ptfe Conveyor Belt

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

High Temperature 260℃ Composite Ptfe Conveyor Belt

High Temperature 260℃ Composite Ptfe Conveyor Belt
High Temperature 260℃ Composite Ptfe Conveyor Belt High Temperature 260℃ Composite Ptfe Conveyor Belt High Temperature 260℃ Composite Ptfe Conveyor Belt

Large Image :  High Temperature 260℃ Composite Ptfe Conveyor Belt

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: R&K
Certification: SGS,ISO FDA
Model Number: R&K-Teflen Conveyor Belts
Payment & Shipping Terms:
Minimum Order Quantity: 30 Square meters
Price: Negotiable
Packaging Details: cartons;cases;as your requirement
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Detailed Product Description
Material Feature: High Temperature 260 ℃ Structure: Belt Conveyor
Material: PTFE Condition: New
After-sales Service Provided: Online Support Dimension(l*w*h): Customer Request
High Light:

260 degree ptfe conveyor belt

,

ptfe conveyor belt high temperature

,

composite ptfe conveyor belt

High Temperature 260 ℃ PTFE Teflen Coated Fiberglass Open Mesh Conveyor Belt





Product Introduction



All of our conveyor belt meshes are made of fine glass fiber or Kevlar fiber as the basic weaving material, and are processed by imported advanced weaving machines and coated. The excellent PTFE resin can be used as a variety of mesh materials for conveyor belts. Our mesh conveyor belt is a new multi-purpose composite material with extremely high performance.



Product Addvantages



Excellent resistance temperature
Weather resistance
Resistant to aging.
Excellent chemical resistance.
Strong acid, strong base, aqueous solution and various organic solvents.
Excellent non-stick surface,
Low coefficient of friction
High insulation performance
Anti-ultraviolet and anti-static
It is non-toxic and can resist almost all medical products



Product Application



Non-woven fabric, textile printing, silk printing, dyeing machine dryer.
Used in clothing fabrics, high frequency and ultraviolet dryers.
Conveyor belt of hot air dryer, baking of various foods, quick-freezing machine.
Used for glazing and waxing of factory-glazed paper.
Used for cardboard production partitions, etc.



Connector



The joints of Teflen mesh conveyor belt are mainly soft joints (bull nose joints) and steel buckle joints

A variety of Teflen high-temperature cloth joints, such as butt joint, lap joint,

Thinning lap joints, steel buckle joints, etc.



Hemming style



Teflen turning film covering, Kevlar covering, Teflen covering etc.

Mesh belt supplement: Due to the different width of the equipment, it is recommended to use double weft because of the ultra-wide mesh belt.



Product specification



Section number Grid size colour thickness Weight Temperature resistance Maximum width tensile strength
YJ -6002 2x2mm black 0.7mm 450g/m2 -70~320C 4000mm 350/310N/cm
YJ- 6003 4x4mm black 1.0mm 400g/m2. -70~320C 4000mm 390/320N/cm
YJ- 6004 4x4mm cream color 1.0mm 450g/m2 -70~320C 4000mm 390/320N/cm
YJ-6007 4x4mm brown 1.2mm 600g/m2 -70~320C 4000mm 895/370N/cm
YJ- 6008 4x4mm black 1.0mm 500g/m2 -70~320C 4000mm 395/370N/cm
YJ-6010 4x4mm cream color 1.0mm 500g/m2 -70~320C 4000mm 900/600N/cm
YJ-6012 4x4mm cream color 1.0mm 550g/m2 -70~320C 4000mm 395/370N/cm
YJ-6013 10x10mm cream color 1.2mm 450g/m2 -70~320C 4000mm 360/300N/cm
YJ-6014 0.5x1mm cream color 0. .5mm 420g/m2 -70~320C 4000mm 310/290N/cm



High Temperature 260℃ Composite Ptfe Conveyor Belt 0High Temperature 260℃ Composite Ptfe Conveyor Belt 1
