SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm

SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm
SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm

Large Image :  SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: R&K
Certification: SGS,ISO FDA
Model Number: R&K-Teflen Conveyor Belts
Payment & Shipping Terms:
Minimum Order Quantity: 30 Square meters
Price: Negotiable
Packaging Details: cartons;cases;as your requirement
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Detailed Product Description
Material Feature: Heat Resistant Structure: Belt Conveyor
Material: PTFE Condition: New
After-sales Service Provided: Online Support Dimension(l*w*h): Customer Request
Power(w): 0.4kW - 22kW Voltage: 220/380V
High Light:

SGS ptfe belt

,

ptfe belt 1*1mm

,

ptfe belt 2*2.5mm

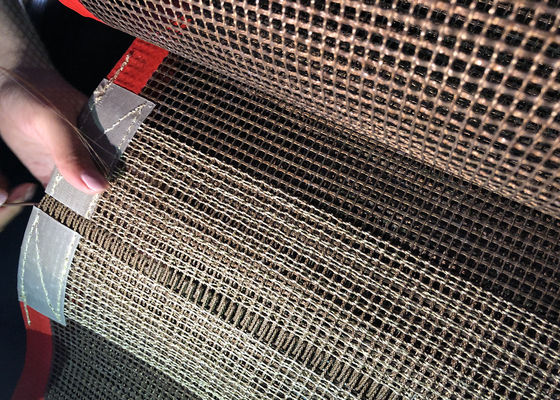

PTFE coated 1*1mm 2*2.5mm 4*4mm Fiberglas Mesh Belt Conveyor Belt



Product Introduction



mesh conveyor belt is made of suspended tetrafluoroethylene (commonly known as plastic king) emulsion as raw material, impregnated with high-performance glass fiber mesh cloth, is a kind of high-performance, multi-purpose composite material new products. Because of its excellent performance, it is widely used in paper making, food, environmental protection, clothing, chemical industry, glass, medicine, electronics, insulation, grinding wheel slicing, machinery and other fields.



The joints of Teflen mesh conveyor belt are mainly soft joints (bull nose joints) and steel buckle joints

A variety of Teflen high-temperature cloth joints, such as butt joint, lap joint,

Thinning lap joints, steel buckle joints, etc.



Product Properties



1. Used between -196 ~ 300 C degrees, with weather resistance and anti-aging

2. Resistant to chemical corrosion, resistant to strong acids, strong bases, aqua regia and various organic solvents

3. Non-adhesive: It is not easy to adhere to any substance, and it is easy to clean various oil stains, stains or other attachments attached to its surface

4. Dimensional stability: The extension coefficient is less than five thousand, the strength is high, and it has good mechanical properties

5. Resistant to bending fatigue, can be used for smaller wheel diameters in machinery

6.Resistant brightener, non-toxic, almost resistant to all pharmaceutical items

7. Fire and flame retardant: long-term use under high temperature, without cracking or aging

8. The air permeability of the mesh conveyor belt is excellent, which can reduce the consumption of heat sources and improve the drying efficiency.



Product Application



Dry machine for non-woven textile,textile printing,silk-printing and dying machine
Shrinking machine for garment fabric,high-frequency and UV dryer
Conveyor belt for hot-air dryer,various of food baking,quick-frozen machinery.
Oilling machine for paper glazing and waxing,plant engineering
Separating sheet for hardboard production

Textile, printing and dyeing: Printing drying, dyeing drying, fabric shrinkage drying, non-woven drying, Oven Conveyor Belt Silk Screen,

Printing: Loose Dryer, offset printing machine, UV series light solid machine, paper through oil drying, UV drying, plastic products silk screen drying, oven conveyor belt

Other: High Cycle drying, microwave drying, freezing and thawing of all types of food, baking, thermal shrinkage of packaging products, general moisture drying, solvent-based fast drying of ink oven guide belt



Hemming style



Teflen turning film covering, Kevlar covering, Teflen covering etc.

Mesh belt supplement: Due to the different width of the equipment, it is recommended to use double weft because of the ultra-wide mesh belt.



Product specification



Section number Grid size colour thickness Weight Temperature resistance Maximum width tensile strength
YS -6002 2x2mm black 0.7mm 450g/m2 -70~320C 4000mm 350/310N/cm
YS- 6003 4x4mm black 1.0mm 400g/m2. -70~320C 4000mm 390/320N/cm
YS- 6004 4x4mm cream color 1.0mm 450g/m2 -70~320C 4000mm 390/320N/cm
YS-6007 4x4mm brown 1.2mm 600g/m2 -70~320C 4000mm 895/370N/cm
YS- 6008 4x4mm black 1.0mm 500g/m2 -70~320C 4000mm 395/370N/cm
YS-6010 4x4mm cream color 1.0mm 500g/m2 -70~320C 4000mm 900/600N/cm
YS-6012 4x4mm cream color 1.0mm 550g/m2 -70~320C 4000mm 395/370N/cm
YS-6013 10x10mm cream color 1.2mm 450g/m2 -70~320C 4000mm 360/300N/cm
YS-6014 0.5x1mm cream color 0. .5mm 420g/m2 -70~320C 4000mm 310/290N/cm



SGS FDA Certified Ptfe Belt 1*1mm 2*2.5mm 4*4mm 0
