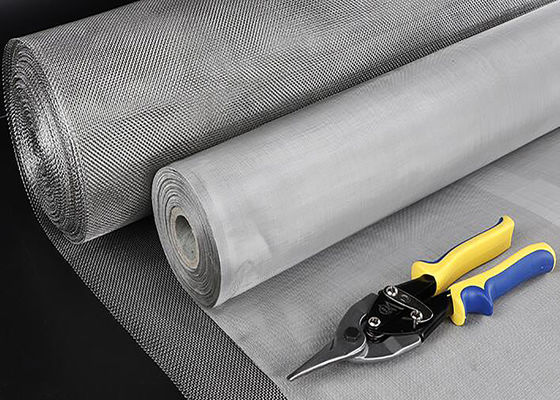

304 316 Stainless Steel Screen Printing Mesh 1.2 Meters Width
Product Introduction
| Material |
Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material) |
| Wire Diameter |
0.015-1mm (we have our own wire drawing workshop for serve mesh production) |
| Mesh No |
3-635 Mesh (' Mesh' means the numbers of hole in one inch line) |
| Weave type |
Plain Weave,Twilled weave,dutch weave |
| Roll Width |
1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request) |
| Roll Length |
15m,30m,60m,100m,200m |
Procuct Feaures
Square hole,warp wire and weft wire are of equal size.
Accurate in mesh size,high flow rate.
High efficient screeing,good stability,high opening rate,Low pressure loss.
flat surface,wear-resistant,good air permeability,firm in structure,easy to clean.
Product Application
1. Accurate mesh, good production reproducibility;
2. Good acid, alkali and corrosion resistance;
3. High strength, tensile force, toughness and wear resistance, long service life;
4. Unified structure, no curl, easy to use, uniform thickness, anti-static;
5. High temperature oxidation resistance, 304 stainless steel screen nominal temperature of 800 degrees Celsius,
6 normal temperature processing, that is, easy plastic processing, so that the use of stainless steel screen diversification;
7. High finish, no surface treatment, easy maintenance!
Product Specification
| Specification |
Mesh/inch |
Wire Dia.(μm) |
Open area Ratio(%) |
Aperture(μm) |
Thickness(μm) |
Calendered Thickness(μm) |
Theoretical Ink(cm³/m²) |
| 40*40*160 |
40 |
160 |
56.0 |
475 |
300-320 |
As order |
179.1 |
| 60*60*120 |
60 |
120 |
51.3 |
303 |
230-245 |
As order |
123.2 |
| 80*80*120 |
80 |
120 |
39.0 |
198 |
235-245 |
As order |
92.9 |
| 80*80*90 |
80 |
90 |
52.0 |
228 |
175-180 |
As order |
103.0 |
| 80*80*50 |
80 |
50 |
71.0 |
268 |
95-100 |
As order |
78.0 |
| 100*100*100 |
100 |
100 |
36.8 |
154 |
195-205 |
As order |
77.2 |
| 120*120*80 |
120 |
80 |
39.0 |
132 |
155-165 |
As order |
65.8 |
| 150*150*60 |
150 |
60 |
41.7 |
109 |
115-124 |
As order |
50.0 |
| 165*165*35 |
165 |
35 |
60.0 |
119 |
70-75 |
As order |
48.0 |
| 165*165*45 |
165 |
45 |
50.1 |
109 |
88-93 |
As order |
45.1 |
| 165*165*50 |
165 |
50 |
45.6 |
104 |
97-105 |
As order |
45.6 |
| 180*180*45 |
180 |
45 |
46.4 |
96 |
88-93 |
As order |
41.5 |
| 180*180*50 |
180 |
50 |
42.0 |
91 |
98-104 |
As order |
41.7 |
| 200*200*40 |
200 |
40 |
46.9 |
87 |
82-84 |
As order |
43.0 |
| 200*200*50 |
200 |
50 |
37.0 |
77 |
98-103 |
As order |
42.0 |
| 230*230*35 |
230 |
35 |
46.7 |
75 |
72-76 |
50-67 |
37.0 |
| 250*250*40 |
250 |
40 |
36.8 |
62 |
86-86 |
50-80 |
34.0 |
| 250*250*30 |
250 |
30 |
49.7 |
72 |
64-68 |
40-58 |
30.0 |
| 250*250*35 |
250 |
35 |
43.0 |
67 |
76-78 |
57-70 |
32.0
|
| 270*270*35 |
270 |
35 |
39.4 |
59 |
76-80 |
58-70 |
30.0 |
| 300*300*30 |
300 |
30 |
41.7 |
55 |
66-68 |
40-59 |
28.0 |
| 325*325*30 |
325 |
30 |
38.0 |
48 |
66-68 |
45-60 |
24.0 |
| 325*325*28 |
325 |
28 |
41.2 |
50 |
63-64 |
40-56 |
26.4 |
| 325*325*23 |
325 |
23 |
49.8 |
55 |
49-53 |
37-41 |
25.4 |
| 350*350*25 |
350 |
25 |
43.0 |
48 |
52-54 |
41-50 |
18.7 |
| 400*400*23 |
400 |
23 |
40.7 |
41 |
50-54 |
35-48 |
19.0 |
| 400*400*18 |
400 |
18 |
51.3 |
46 |
36-40 |
28-30 |
20.0 |
| 500*500*18 |
500 |
18 |
41.7 |
33 |
36-40 |
23-29 |
15.3 |
