77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow

77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow
77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow 77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow

Large Image :  77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow

Product Details:
Place of Origin: HEBEI China
Brand Name: R&K
Certification: FDA,SGS,ISO 9001
Model Number: J825
Payment & Shipping Terms:
Minimum Order Quantity: 10meters
Price: Negotiable
Packaging Details: 1.We always use poly bag for the goods which ship by air, so that customer can save freight free. 2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping. 3.There also have some customer request us to use the
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Printing: Polyester Screen Printing,Silk Screen Printing Material: 100% Polyester,100% Polyester Screen Printing Mesh
Mesh Count: 18mesh-420mesh Color: White/Yellow
Application: Screen Printing Product Name: 100% Polyester Silk Screen Printing Mesh
High Light:

FDA silk screen printing mesh

,

77t silk screen printing mesh

,

195 mesh silk screen

77t 195 Mesh Count 42g/M 35% Opening Yellow Silk Screen Printing Mesh For Printing



Product description





100% monofilament polyester printing mesh
Weave Style Plain Weave
Martiral 100% ployester
Monofilament Style Yes
Width 0.6m-3.65m
Mesh Count 25-400 mesh/inch
Thread Diameter 250-31 micron
Mesh Opening

700-25 micron







Product introduction





Screen printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed. One color is printed at a time, so several screens can be used to produce a multicoloured image or design.
1. Used for screening and filtering under acid and alkali environmental conditions, as mud mesh in the petroleum industry, chemical fiber industry, as a screen filter, and electroplating.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as mud mesh in petroleum industry, as sieve in chemical and chemical fiber industry, and as pickling mesh in electroplating industry. The factory can design and produce various types of products according to user needs.


Product specification

Specification Mesh/inch Wire Dia.(μm) Open area Ratio(%) Aperture(μm) Thickness(μm) Calendered Thickness(μm) Theoretical Ink(cm³/m²)
40*40*160 40 160 56.0 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39.0 198 235-245 As order 92.9
80*80*90 80 90 52.0 228 175-180 As order 103.0
80*80*50 80 50 71.0 268 95-100 As order 78.0
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39.0 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50.0
165*165*35 165 35 60.0 119 70-75 As order 48.0
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42.0 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43.0
200*200*50 200 50 37.0 77 98-103 As order 42.0
230*230*35 230 35 46.7 75 72-76 50-67 37.0
250*250*40 250 40 36.8 62 86-86 50-80 34.0
250*250*30 250 30 49.7 72 64-68 40-58 30.0
250*250*35 250 35 43.0 67 76-78 57-70 32.0




Product Application



1.Costume screen printing: T-shirt screen printing, Fashion screen printing, Sportswear screen printing, Swimwear screen printing, etc.

Luggage, Shoes and Hats screen printing: Computer Bag screen printing, Handbags screen printing, Shopping bags screen printing, Luggage screen printing, Wallets screen printing, composite packaging materials screen printing, Canvas Shoes screen printing, hat/cap screen printing, etc.

2.Home Textiles screen printing: Scarves screen printing, Pillow screen printing, Tablecloths screen printing, Sleeping Bags screen printing, Bedclothes screen printing, Curtains screen printing, Seat screen printing, etc.

3.Advertising Gifts screen printing: Mouse Pad screen printing, Textile Slippers screen printing, Coasters screen printing, Bar Cushion screen printing, Paintings screen printing, Flags screen printing, Umbrella screen printing, etc.

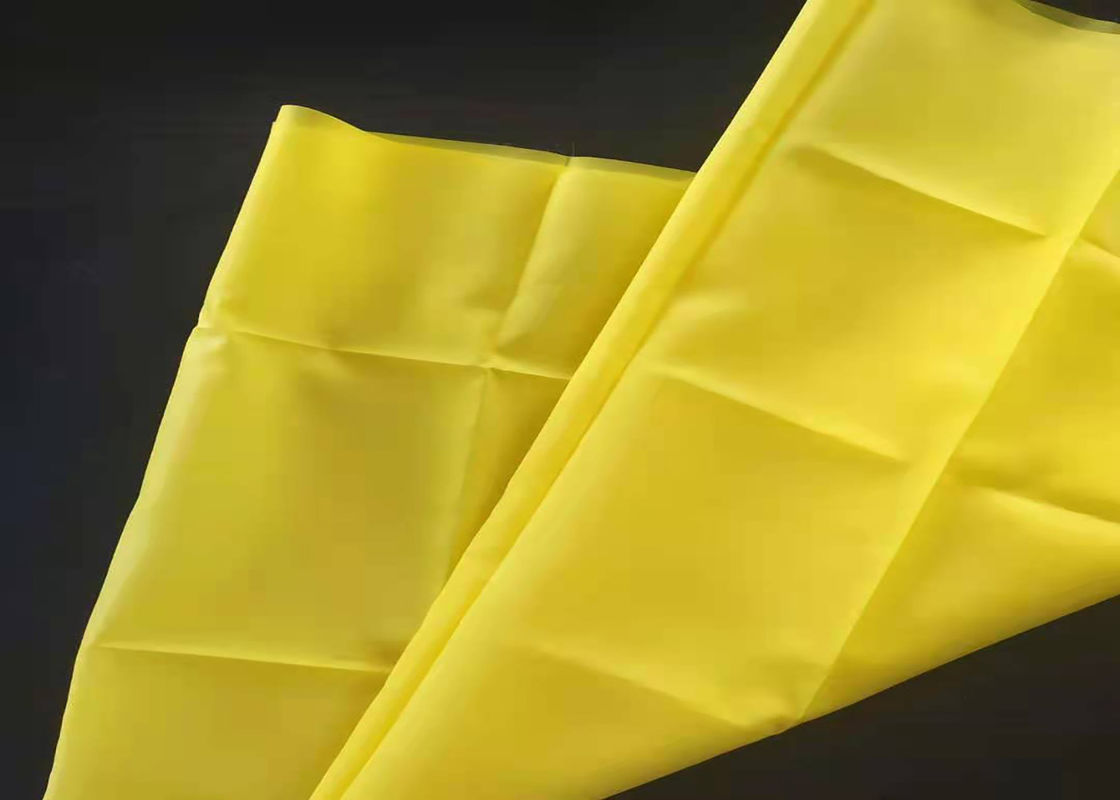

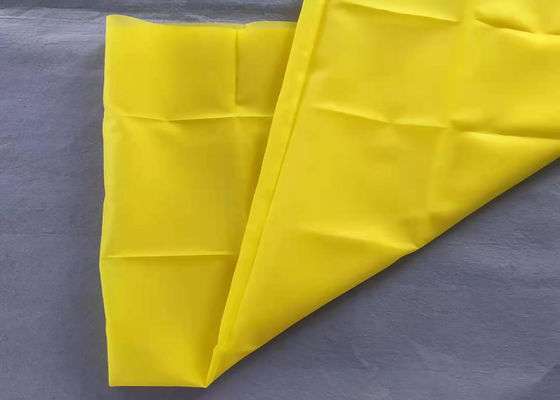

Photo show



77t 195 Mesh Count 42g/M 35% Opening Silk Screen Printing Mesh Yellow 0
