High Tension Polyester Screen Mesh Plain Weave Faster Tension Stability

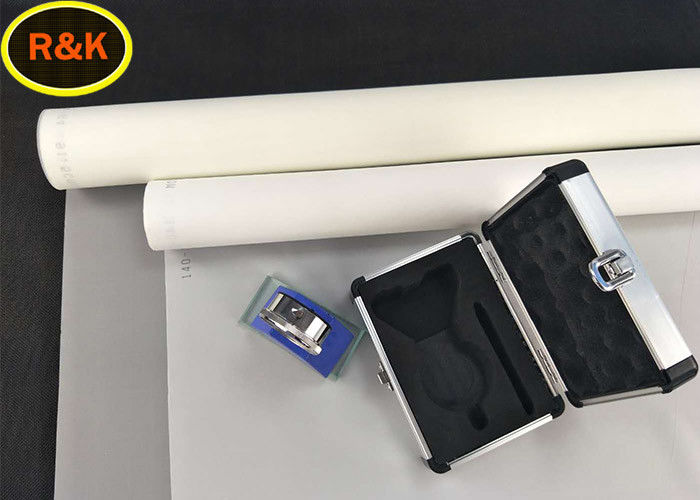

Large Image : High Tension Polyester Screen Mesh Plain Weave Faster Tension Stability

Product Details:

Place of Origin:	Hebei
Brand Name:	R&K
Certification:	FDA
Model Number:	P-07

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiate
Packaging Details:	Packed in plastic bags and then in cartons.
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union，PayPal
Supply Ability:	1000 square meter per week

Contact Now

Detailed Product Description

Material:	100% Polyester	Application:	Filter
Weave Type:	Plain Weave	Elasticity:	Low
Monofilament Style:	Yes	Feature:	High Tension
Product Name:	Polyester Screen Mesh
High Light:	polypropylene filter mesh , polyester screen mesh

25 micron white 100% polyester material micron filter mesh screen

Description

Polyester is a synthetic fiber derived from coal, air, water and petroleum. Polyester fibers were developed by a 20th century laboratory and formed by a chemical reaction between an acid and an alcohol. In this reaction, two or more molecules combine to form a macromolecule whose structure repeats over its entire length. Polyester fibers can form very stable and strong very ionic molecules.

Application

Polyester mesh is widely used in

1. Air filter in air conditioning filter
2. Liquid filter for milk, juice, cheese, soy, etc.
3. Flour, solid mesh for grinding
We can drill down into filter bags, filter trays and filter filters.

Features

The tension is faster and will not damage the threads.
Improve fabric strength.
Faster tension stability.
Higher tension thresholds and breakthrough points.
Reduce tension loss during stretching.
The turnaround time from the screen room to the print shop is shorter.
The registration is improved due to the stable tension.

Parameters of food grade polyester mesh

Fabric number	Mesh count		Thread diameter	Mesh opening	fabric thickness	weight	width
NO.	Cm mesh/inch		micron	micron	micron	g/m2	inch
DPP5	5T	13	450	1550	850	259	45,50
DPP6	6T	15	400	1270	760	246	45,50
DPP7	7T	18	350	1080	660	220	45,50
DPP8	8T	20	350	900	660	251	45,50,62
DPP9	9T	23	350	760	670	282	45,50,62
DPP10	10T	25	300	700	570	231	45,50,62,65,72
DPP12	12T	30	300	530	580	277	45,50,62
DPP14	14T	36	200	515	360	143	45,50,72
DPP15	15T	38	250	420	470	240	45,50,62,72
DPP16	16T	41	200	425	380	164	45,50,62,72,
DPP18	18T	46	180	375	330	150	45,50,62,72,
DPP19	19T	48	150	375	260	110	45,50,62,72
DPP20	20T	50	150	350	260	115	45,50,62,72
DPP21	21T	53	150	325	270	121	45,50,62,72
DPP24	24T	61	150	270	280	138	45,50,62,72
DPP27	27T	68	120	250	230	100	45,50,62,72
DPP28	28T	71	120	240	230	103	45,50,62,72
DPP29	29T	74	120	225	230	107	45,50,62,72
DPP30	30T	76	120	215	230	111	45,50,62,72
DPP34	34T	86	100	195	180	87	45,50,62,72
DPP36	36T	91	100	180	180	92	45,50,62,72
DPP39	39T	99	64	190	115	40	45,50,62,72
DPP40	40T	102	100	150	190	103	45,50,62,72
DPP43	43T	110	80	150	155	71	45,50,62,72
