20 Micron Polyester Filter Mesh Screen For Pond Filter Acid Resistant

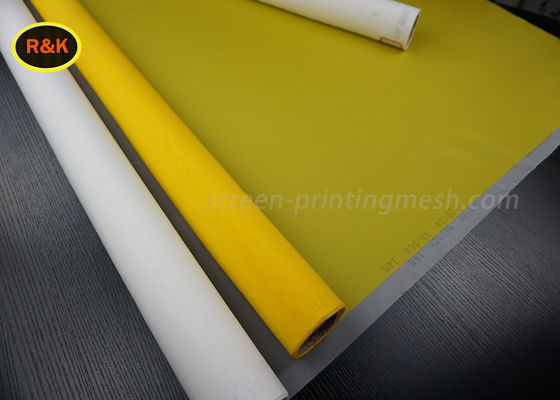

Large Image : 20 Micron Polyester Filter Mesh Screen For Pond Filter Acid Resistant

Product Details:

Place of Origin:	HEBEI ,CHINA
Brand Name:	R&K
Certification:	MSDS,ROSH,SGS,ISO 9001
Model Number:	R-180T

Payment & Shipping Terms:

Minimum Order Quantity:	20 micron polyester filter mesh MOQ 100 METERS
Price:	Negotiable
Packaging Details:	plastic bag inside,and the carton box and woven bag or stretch film outside.
Delivery Time:	20 micron mesh delivery time:5-8 work days
Payment Terms:	L/C, T/T, Western Union,PayPal,T/A,Credit Card
Supply Ability:	100,000 meter per months

Contact Now

Detailed Product Description

Product Name:	Polyester Filter Mesh Screen Roll	Material:	100% Polyester Mono Filament Yarn
Mesh Count:	460 Mesh Per Inch (180 T Per Cm)	Thread Diameter:	55 Micron
Roll Width:	41'' 45'' 65'' 74'' 90'',max Width 144''	Roll Length:	40-100 Mesh,big Roll 1000-2000 Meters
Place Of Origin:	HEBEI,CHINA	MOQ:	100 METERS
High Light:	polypropylene filter mesh , polyester screen mesh

20 Micron Polyester Filter Mesh Screen For Pond Filter Acid Resistant

Details of the polyester filter mesh:

Reking wire mesh always use the high quality to meet our client request, we have about 150sets machine to produce this kind of mesh, we use the advanced weaving looms and high quality imported and domestic raw material.

below is the details about this mesh:

Material: 100% polyester mono filament yarn

Certification:FDA,MSDS,ROSH,SGS,ISO 9001

Mesh: 180T/460 mesh per inch

Thread diameter: 27 micron

Color: white is popular,other color is for particular purpose.

Aperture size: 20 micron - 800 micron

We can produce the mesh from 10T - 180T, the popular specification are 43T-80/ 54T-64/64T-55/90T-48/100T-40/120T-31/140T-34/150T-31/180T-27.

Advantages:

Acid resistant,

Good filter value,

Precision filteration,

Heat resistant, the highest degree about 180 ℃-230℃

Strong Water-proof

Durable in water.

Lack of money than other mesh

Specification of the polyester filter mesh:

Mesh Count Diameter (Mesh/cm µm)

Mesh Count (Mesh/inch)

Weave

Aperture (µm)

Thread Diameter (µm)

Opening (%)

Thickness (µm)

Thickness Tollerance (+/- µm)

Theoretical Ink (cm3/m2)

Weight (g/m2

39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	2:2	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	2:2	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70PW(HD)	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	2:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-31PW(S)	420	1:1	23	31	15	48	2	7	36
PW:(Plain Weave);TW:(Twill Weave); S T HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request.
