Product Details:
Payment & Shipping Terms:
|
Product Name: | White Color Food Grade Liquid Filter 200 Mesh Nylon Micron Filter Mesh | Hole Shape: | Square |
---|---|---|---|
Usage: | Liquid Filter | Weave Style: | Plain Weave |
Technique: | Woven | Feature: | Corrosion Resistance |
Color: | White | Grade: | Food Grade |
Mesh Count: | 200 Mesh | ||
High Light: | 200 mesh nylon filter cloth mesh,200 mesh nylon filter cloth,MSDS nylon filter cloth mesh |

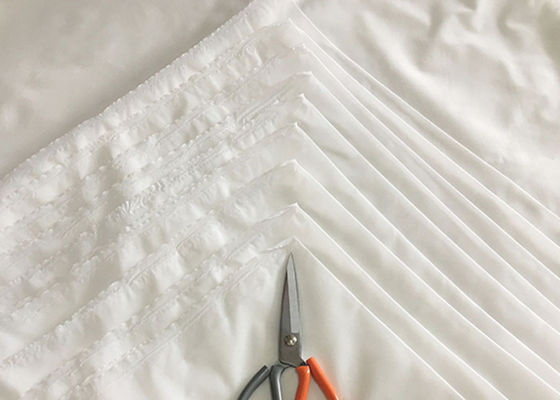

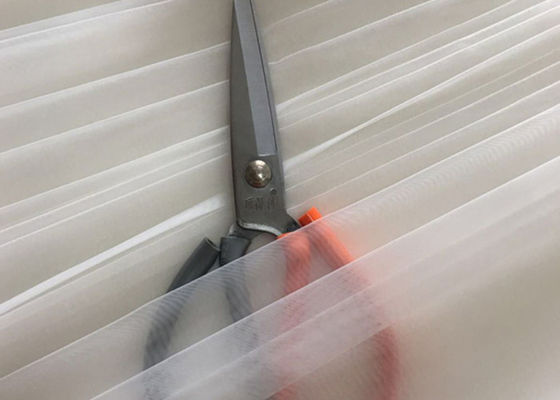

White Color Food Grade Liquid Filter 200 Mesh Nylon Micron Filter Mesh
Product Introduction
The specifications of woven mesh are mainly mesh number, wire diameter, aperture, width, etc. Nylon mesh has many types and different uses, so the specifications are not the same. Generally speaking, the mesh number used for screening and filtering is 60 meshes. -420 mesh, there is a corresponding ratio parameter between the wire diameter and the mesh, the smaller the diameter, the smaller the wire diameter; the larger the mesh used for fishing.
Nylon mesh specifications: 100 mesh, 120 mesh, 140 mesh, 150 mesh, 180 mesh, 200 mesh, 250 mesh, 300 mesh, 350 mesh, 400 mesh, 500 mesh.
Product Specification
Fabric number | Mesh count | Thread diameter | Mesh opening | Opening | Thickness | Weight | |
No. | cm | inch | um | micron | % | um | g/m2 |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 861 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
12 | 30 | 300 | 533 | 41 | 585 | 234 | |
JPP14 | 14 | 35 | 250 | 464 | 42 | 470 | 190 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
16 | 40 | 250 | 375 | 36 | 485 | 217 | |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
20 | 50 | 200 | 300 | 36 | 385 | 173 | |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 128 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 61 | 118 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 61 | 109 | 41 | 98 | 46 |
JPP64 | 64 | 160 | 61 | 95 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 89 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 43 | 57 | 32 | 65 | 35 |
JPP120 | 120 | 305 | 43 | 40 | 23 | 70 | 42 |
JPP130 | 130 | 330 | 43 | 34 | 20 | 75 | 45 |
JPP140 | 140 | 355 | 38 | 33 | 21 | 67 | 48 |
JPP150 | 150 | 380 | 38 | 29 | 19 | 68 | 51 |
JPP165 | 165 | 420 | 35 | 26 | 18 | 62 | 47 |
Product Features
Nylon wire mesh has the characteristics of high tensile strength, good resilience, good abrasion resistance, strong alkali resistance, dilute acid and solvent resistance, etc.
Softening point: 170℃-180℃ Melting point: 210℃-215℃.
Product Application
Liquid filtration, powder filtration, petroleum, mining, pharmaceuticals, chemical plants, paint impurities, ink impurities, oil product impurities filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, fishery, impurities filtration, juice beverages and soy products Filtering, food and other industrial screens and filtering, dust-proof cloth and other applications are very wide.
Selection of nylon mesh number:
Used to filter soybean milk and medicine residue, recommended 100 mesh-150 mesh
Used to filter milk and juice, 250 mesh is recommended
Used to filter wine, 300 mesh is recommended
Used to filter paint, 80-100 mesh is recommended for primer and 150-250 mesh for topcoat
Used to filter wine and tea, 250 mesh is recommended
Used to filter drinking water and suspended particles, 400-500 mesh is recommended
Used to filter tap water, 500 mesh is recommended
