Product Details:
Payment & Shipping Terms:
|
Product Name: | White 30-500 Mesh Monofilament Nylon Screen Mesh Filter | Hole Shape: | Square |
---|---|---|---|
Usage: | Liquid Filter | Technique: | Woven |
Feature: | Corrosion Resistance | Width: | 1-3.65m |
Length: | 50m Per Roll | Micron: | 5 50 100 Micoron |
Type: | Filter Cloth | Wave Stlye: | Plain Weave |
High Light: | monofilament 5 micron nylon filter cloth,white 5 micron nylon mesh,30mesh 5 micron nylon filter cloth |

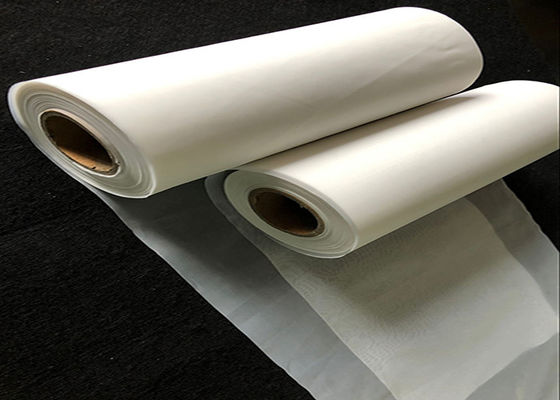

White 30-500 Mesh Monofilament Nylon Screen Mesh Filter
Product Introduction
The nylon filter imesh s mainly made of P.P fiber woven and formed into one body. Acid and alkali resistance, good corrosion resistance. It is a material with low resistance, can be cleaned repeatedly, and is extremely economical. The captured long and short fibers and dust particles are easy to clean, and the filtration efficiency is not affected by cleaning. Good impact resistance.Nylon mesh is a chemical fiber woven mesh made of nylon yarn, nylon yarn, polyester yarn, nanofiber yarn and other chemical fibers as raw materials and mechanically processed by wire mesh.
Chinese name:Nylon mesh
Foreign name:Nylon mesh
Material:Nylon yarn, nylon yarn, polyester yarn, nylon yarn
Special points:High toughness, good elasticity, corrosion resistance, oil resistance
Use the way:Industrial filtration, petroleum, chemical, printing
Performance characteristics:
Nylon mesh has the characteristics of high toughness, good elasticity, corrosion resistance, oil resistance, water resistance, abrasion resistance, high temperature resistance, and weather resistance; it also has the characteristics of good insulation and low lubrication coefficient.
Product Specification
Fabric number | Mesh count | Thread diameter | Mesh opening | Opening | Thickness | Weight | |
No. | cm | inch | um | micron | % | um | g/m2 |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 861 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
12 | 30 | 300 | 533 | 41 | 585 | 234 | |
JPP14 | 14 | 35 | 250 | 464 | 42 | 470 | 190 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
16 | 40 | 250 | 375 | 36 | 485 | 217 | |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
20 | 50 | 200 | 300 | 36 | 385 | 173 | |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 128 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 61 | 118 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 61 | 109 | 41 | 98 | 46 |
JPP64 | 64 | 160 | 61 | 95 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 89 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 43 | 57 | 32 | 65 | 35 |
JPP120 | 120 | 305 | 43 | 40 | 23 | 70 | 42 |
JPP130 | 130 | 330 | 43 | 34 | 20 | 75 | 45 |
JPP140 | 140 | 355 | 38 | 33 | 21 | 67 | 48 |
JPP150 | 150 | 380 | 38 | 29 | 19 | 68 | 51 |
JPP165 | 165 | 420 | 35 | 26 | 18 | 62 | 47 |
Product Application
It is widely used in industrial filtration, petroleum, chemical, printing and other products with complete specifications and excellent quality. Special specifications can be customized. And silk screen printing, paint filtration, fishing and other industries. Nylon mesh has the effect of high temperature resistance and alkali resistance, and the polyethylene mesh has the effect of acid resistance, and each has its own advantages.
Nylon filter cloth features the greatest abrasion resistance among the other three frequently used filter fabrics including polypropylene, polyester and cotton. It is often found in filtration applications of abrasive dusts and wet abrasive solids where abrasion resistance plays an important factor.
Product Features
It has high tension threshold and breaking point |
It has high modulus, low elongation monofilament nylon yarn |
It has resist to chemicals, abrasion, heat and moisture |
Minimal tension loss during stretching process |
Improved registration due to stable fabric tension |
Good antistatic |
No surface treatment |
