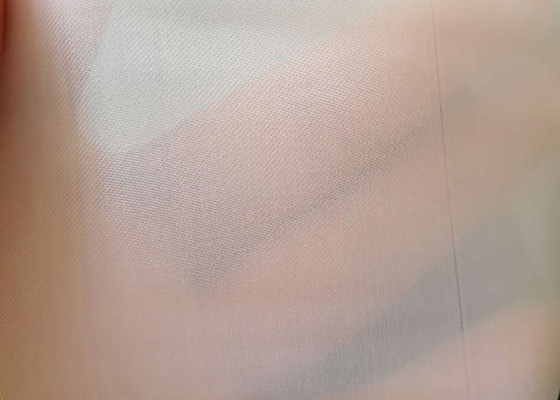

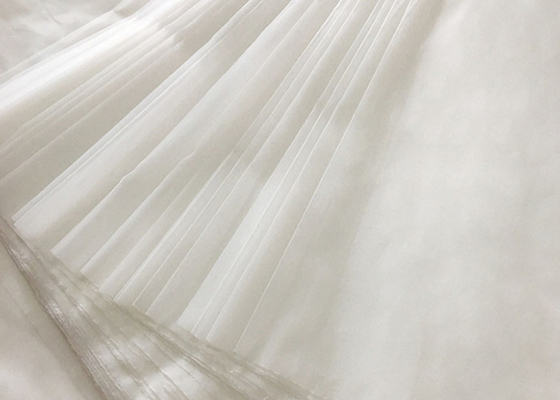

Acid Alkali Resistant Filter Mesh Roll Micron Grade

Acid Alkali Resistant Filter Mesh Roll Micron Grade
Acid Alkali Resistant Filter Mesh Roll Micron Grade Acid Alkali Resistant Filter Mesh Roll Micron Grade

Large Image :  Acid Alkali Resistant Filter Mesh Roll Micron Grade

Product Details:
Place of Origin: HEBEI ,CHINA
Brand Name: R&K
Certification: MSDS,ROSH,SGS,ISO 9001
Model Number: R&K-Nylon mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: 1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Hole Shape: Square Usage: Liquid Filter
Weave Style: Plain Woven Nylon Mesh Technique: Woven
Feature: Corrosion Resistance Color: White
High Light:

acid resistant filter mesh roll

,

alkali resistant filter mesh roll

,

micron grade filter mesh roll

And Alkali Resistant Micron Grade Ultra-Fine Filter Plain Woven Nylon Polyester Mesh Roll



Product Introduction



Our polyester nylon filter screen mesh is divided into different meshes COUNT and different wire diameters, which is the number of threads in ordinary times. The number of threads in the fabric refers to the number of threads per inch. Our nets are flat woven with uniform square holes. The warp threads extend longitudinally in the fabric. The weft or weft crosses the width of the fabric at right angles to the fabric. Since the monofilament fabric produced has the same yarn diameter and the same count in the warp and weft directions, the mesh is square.



Product Specification



Fabric
number
Mest
count
Thread
diameter
Mesh
opening
Fabric
thickness
Weight
NO. cm mesh/inch micron micron micron g/m2
JPP5 5 12 500 1500 850 271
JPP6 6 16 400 1267 780 208
JMG7 7 18 350 1079 675 186
JPP8 8 20 350 900 685 212
JPP9 9 24 250 860 455 145
JPP10 10 25 300 700 576 195
JPP12 12 30 250 583 470 162
JPP12 12 35 300 533 585 234
JPP14 14 40 300 414 595 273
JPP16 16 40 200 425 370 139
JPP16 16 50 250 375 485 217
JPP20 20 50 150 350 375 98
JPP20 20 50 200 300 385 173
JPP24 24 60 150 267 285 117
JPP28 28 70 120 237 215 87
JPP30 30 76 120 213 225 94
JPP32 32 80 100 213 165 69
JPP36 36 90 100 178 178 78
JPP40 40 100 100 150 190 87
JPP43 43 110 80 152 135 60
JPP48 48 120 80 130 145 62
JPP56 56 140 60 120 85 44
JPP59 59 150 60 110 98 46
JPP64 64 160 60 100 105 50
JPP72 72 180 50 90 82 39
JPP80 80 200 50 75 90 43
JPP100 100 250 40 60 65 35
JPP120 120 305 40 43 70 42
JPP130 130 330 40 37 75 45
JPP200 200 500 39 25 66 76


Product Features

5–236 meshes for different filtration requirements.
Available for filter disc, filter tube, filter belt and filter bags.
Plain weave or twill weave options.
Excellent in liquid, powder, dust, gas and other element filtration.
Alternative to polyester (PA) filter mesh.


Product Application

These multifunctional precision woven fabrics meet the strict technical requirements in automotive, biomedical, chemical processing and water treatment applications. Common applications include molded filters for air and fuel filter elements, fuel nozzles and liquid filter bags. As you can see, woven mesh is often used for filtration applications.


Product Characteristic



Excellent abrasion resistance.
Excellent cake release.
Fine particle filtration.
Ideal for low temperature.
High tensile strength.
Good elasticity is ideal for continuous flexing purposes.
Suitable for caustic alkali atmosphere like dyestuffs.
Working temperature: 248 °F (constant); 275 °F (surge).


How to choose


Mesh Count is the number of threads per inch in the direction of warp and weft of the fabric.The mesh count is indentical in both warp and weft direction for Share Fitration's woven mesh.



Thread Diameter is specified as the diameter of the thread in microns.Yarn sizes in both warp and weft directions are the same.



Mesh Opening is the size or space between threads.The mesh opening is the result of the combination of the mesh count and yarn size.Mesh opening will determine the size or amount of material that will pass through the fabric.
