Low Elongation Thermal Screen Printing Mesh Roll 33 - 420 Mesh / Inch

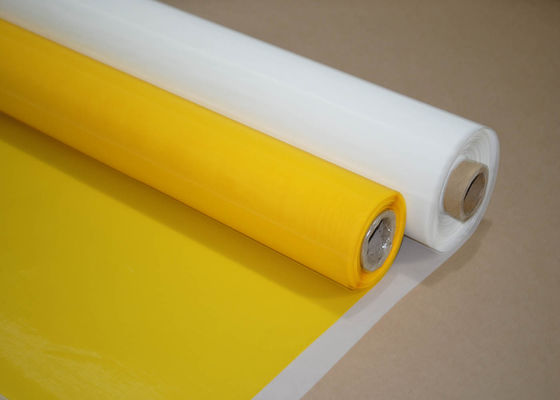

Large Image : Low Elongation Thermal Screen Printing Mesh Roll 33 - 420 Mesh / Inch

Product Details:

Place of Origin:	Hebei , China
Brand Name:	R&K
Certification:	FDA SGS
Model Number:	R&K-Ljsan

Payment & Shipping Terms:

Minimum Order Quantity:	50 Meter/Meters Thermal Screen Printing Mesh
Price:	negotiation
Packaging Details:	in cartons,plastic film packaging or as customer's request
Delivery Time:	3-10 days
Payment Terms:	L/C,T/T,Paypal, Western Union,Trade Assurance.
Supply Ability:	15000 Meter/Meters per Week Thermal Screen Printing Mesh

Contact Now

Detailed Product Description

Material:	100%polyester	Printing:	Polyester Screen Printing
Roll Width:	Max Width 3.05meter	Length:	30M/roll,50M/roll Or As Require Textile Screen Printing Mesh
Brand Name:	R&K	Mesh Count:	33-420 Mesh/inch
High Light:	thermal screen roll , stainless steel bolting cloth

Low Enlongation Hot Sale Thermal Screen Printing Mesh From Factory Outlet

Description For Thermal Screen Printing Mesh:

Polyester mesh is the carrier of the directly plate making and printing.Polyester printing mesh are widly used in ceramic print,glass print,textile print,graphic print, it is plain weave mesh,twill weave is not available on the printing industry.

Material	100% polyester ,monofilament yarn
Mesh count	13T/30mesh/inch - 165T/420 mesh/inch
Max width.	the max width upto 3.60 meter.high mesh upto 3.05meter
Color	white , yellow , red .
Quality	With high quality domectic and imported raw material,advanced weaving looms and test instruments.

Specification For Thermal Screen Printing Mesh:

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56

Features For Thermal Screen Printing Mesh:

Low-enlongation;
Heat and moisture;
Abrasion;
Fast printing speeds;
No surface treatment;
Improved registration due to stable tension;
High tenson threshold and braking point;
Faster tension stabilization;
Improved fabric strength;
Loss tension loss during the strentching process;

Application For Thermal Screen Printing Mesh:

Polyester printing mesh is mainly used in ceramic decorative pinting industry,Printing on glass,CD/DVD printing,image printing,large post printing,medical equipment printing,membrane switches printing,packing & plastic printing,PCB,and textile& garment printing industry.
