120 160 180 Mesh Polyester Silk Screens Printing Monofilament Mesh Roll

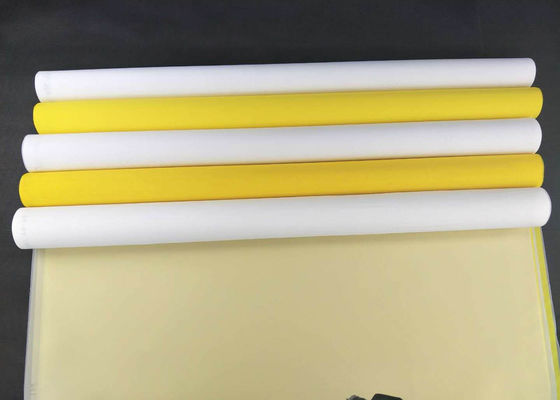

Large Image : 120 160 180 Mesh Polyester Silk Screens Printing Monofilament Mesh Roll

Product Details:

Place of Origin:	HEBEI CHINA
Brand Name:	R&K
Certification:	ISO9001,FDA
Model Number:	J 685

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiable
Packaging Details:	carton box, or ask your request
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union,PayPal,Credit Card,T/A
Supply Ability:	2000 square meters per day

Contact Now

Detailed Product Description

Material:	100% Polyester	Nylon Mesh:	120 Mesh
Weave Type:	Plain	Monofilament Style:	Yes
Printing:	Polyester Screen Printing,Silk Screen Printing	Mesh Count:	18mesh-420mesh
High Light:	silk screen fabric mesh , silk screen mesh roll

120 160 180 Mesh Polyester Silk Screens Printing Monofilament Mesh Roll

Descriptions of the mesh:

We are factory of polyester screen printing mesh, nylon screen printing mesh,monofilament screen printing mesh.
Specification from 10T to 180T.wide from 50cm to 3.7m.

We have white yellow black orange colors. All can made as your required specifcation. Tension is high can used for pcb. glass,bottle.ceramic.VCD.DVD. textile and cloth printing.

Brand Name:R&K
Place of Origin:China
Quality Inspection:ISO9001 FDA SGS
Port:Xingang, Tianjin
Minimum Order Quantity: 1m
Supply Ability:50000m per month
Payment Terms.L/C.T/T.paypal:western union.Ali express

Material	100 % polyester
Mesh	120 mesh
Color	white,yellow
MOQ	1 aquare meterl

Specifications of the polyester mesh:

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh/Inch)	Weave	Aperture(μm)	Thread Diameter(μm)	Opening(%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37

Adavantages of the polyester mesh:

Faster tensioning without damage to the threads,
Improved fabric strength;
Faster tension stabilization;
Higher tension threshold and breaking point:
L ess tension loss during the stretching process:
Faster turnaround time from the screen room to the pressroom;
Improved registration due to stable tension;
Faster printing speeds.

Application of the polyester mesh:

CD/DVD Printing,

Ceramic Decorating,

Graphic Screen Printing, Package Printing.

Printed Electronics.

Printing on Glass.

Solar Cell Printing,

Textile Printing, etc.
