Product Details:
Payment & Shipping Terms:
|
Colour: | White,Yellow | Material: | 100% Polyester |
---|---|---|---|
Printing: | Silk Screen Printing | Weave Type: | Plain |
Monofilament: | Yes | Usage: | Ceramic Industries |
High Light: | polyester screen mesh,polypropylene filter mesh |

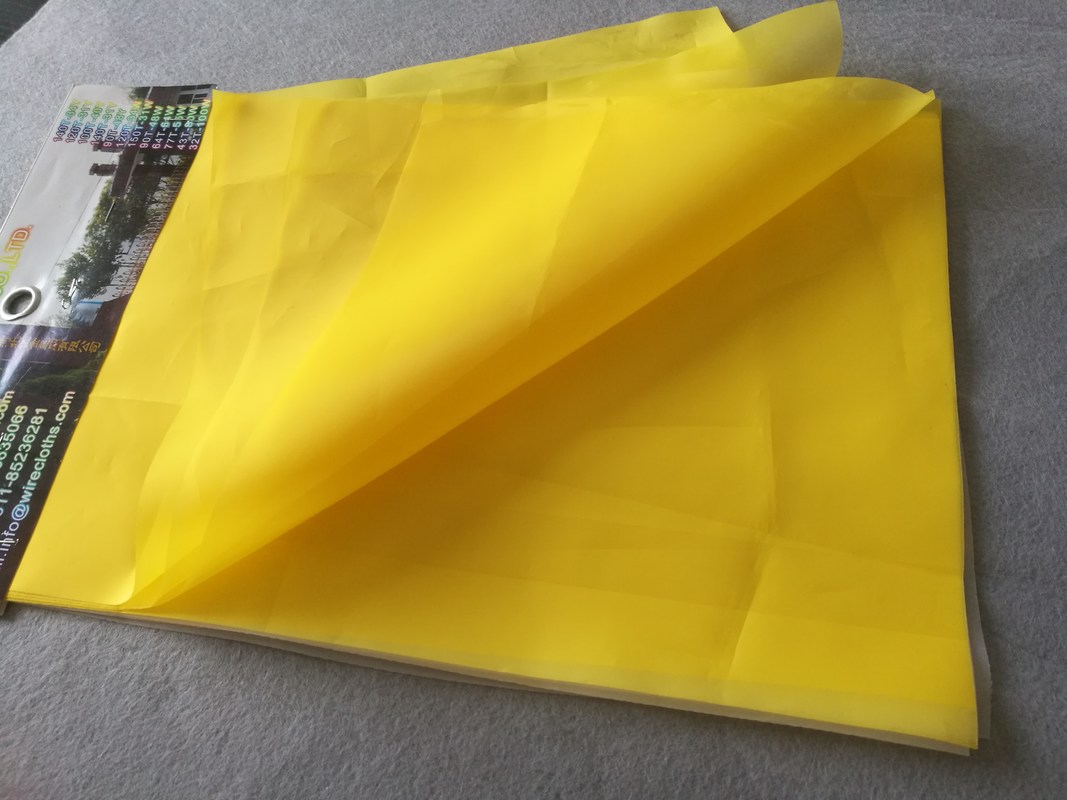

77T-48W Polyester Monofilament Silk Screen Printing Bolting Cloth For Ceramic Industries
Descriptions of Polyester Monofilament Silk Screen Printing mesh :
Polyester printing screen is also called, printing screen, polyester screen printing screen, high tension screen printing screen, glass screen printing screen, circuit board screen printing screen, high tension monofilament polyester screen, PCB screen printing screen, thickening printing Screen, textile printing screen, ceramic flower paper screen printing screen, LCD screen printing screen, T-shirt printing screen, etc.
Name:77T-48W Polyester Monofilament Silk Screen Printing Bolting Cloth For Ceramic Industries | |
Material:100% polyester | Mesh count:10T-165T(25-420mesh) |
Width:0.6M-3.9M | Mesh diameter:31-250um |
Weave Type:plain | Mesh color:White/yellow |
Monofilament Style:yes | Mesh width:105-360cm |
Application:Screen printing | Stretch tension:0-30N |
Features of Polyester Monofilament Silk Screen Printing mesh :
Manufactured with advanced weaving technology and imported equipment;
Resistant to chemicals and abrasion;
Easy to clean, long life and reusable;
Good ink leakage
Small tensile elongation and good dimensional stability;
Heat resistance, low hygroscopicity,
The mesh openings are uniform and the mesh size is standard.
Our company manufacture various specification mesh specially used in T-shirt Printing. This kind of mesh is plain weaved polyester mono-filament yarn. The characters of this mesh contain high strength, low elongation, good tension stability, high quality, and reasonable price. The mesh has been used widely in T-shirt industries in China.
Specification | |||||||
Model | Mesh/cm | Mesh/inch | Aperture (micron) |
Thread Dia. (micron) |
Open Area (%) |
Thickness (micron) |
Theoretical Ink (cm3/m2) |
10-250 | 10 | 25 | 743 | 250 | 55 | 495 | 274 |
12-140 | 12 | 30 | 686 | 140 | 68 | 277 | 189 |
13-150 | 13 | 33 | 619 | 150 | 64 | 300 | 128 |
16-140 | 16 | 40 | 461 | 140 | 58 | 238 | 139 |
21-80 | 21 | 55 | 296 | 80 | 69 | 120 | 79 |
21-150 | 21 | 55 | 326 | 150 | 46 | 260 | 118 |
22-80 | 22 | 56 | 356 | 80 | 66 | 136 | 90 |
24-80 | 24 | 60 | 320 | 80 | 63 | 136 | 86 |
24-100 | 24 | 60 | 316 | 100 | 57 | 170 | 65 |
28-140 | 28 | 70 | 217 | 140 | 40 | 195 | 76 |
32-55 | 32 | 80 | 257 | 55 | 67 | 103 | 67 |
32-64 | 32 | 80 | 248 | 64 | 63 | 95 | 56 |
32-100 | 32 | 80 | 212 | 100 | 46 | 170 | 73 |
36-90 | 36 | 92 | 183 | 90 | 44 | 150 | 65 |
39-55 | 39 | 100 | 177 | 55 | 56 | 88 | 55 |
43-80 | 43 | 110 | 149 | 80 | 41 | 130 | 53 |
47-55 | 47 | 120 | 152 | 55 | 51 | 88 | 48 |
48-70 | 48 | 122 | 133 | 70 | 41 | 115 | 47 |
53-55 | 53 | 135 | 133 | 55 | 50 | 86 | 42 |
54-64 | 54 | 137 | 115 | 64 | 39 | 100 | 39 |
54-70 | 54 | 137 | 109 | 70 | 35 | 116 | 40 |
61-64 | 61 | 155 | 90 | 64 | 31 | 101 | 30 |
64-55 | 64 | 160 | 98 | 55 | 38 | 98 | 36 |
64-64 | 64 | 160 | 85 | 64 | 30 | 115 | 34 |
68-55 | 68 | 175 | 85 | 55 | 34 | 85 | 28 |
68-64 | 68 | 175 | 78 | 64 | 28 | 105 | 30 |
72-48 | 72 | 182 | 90 | 48 | 36 | 78 | 33 |
72-55 | 72 | 182 | 85 | 55 | 30 | 90 | 27 |
80-48 | 80 | 200 | 72 | 48 | 33 | 74 | 25 |
90-48 | 90 | 230 | 56 | 48 | 25 | 78 | 19 |
100-40 | 100 | 255 | 58 | 40 | 33 | 63 | 21 |
110-40 | 110 | 280 | 48 | 40 | 27 | 64 | 17 |
120-31 | 120 | 305 | 49 | 31 | 35 | 49 | 17 |
120-34 | 120 | 305 | 45 | 34 | 30 | 55 | 16 |
130-34 | 130 | 330 | 40 | 34 | 27 | 55 | 15 |
140-31 | 140 | 355 | 36 | 31 | 26 | 48 | 12 |
140-34 | 140 | 355 | 31 | 34 | 20 | 53 | 10 |
150-31 | 150 | 380 | 32 | 31 | 23 | 49 | 11 |
150-34 | 150 | 380 | 23 | 34 | 13 | 55 | 6.5 |
165-31 | 165 | 420 | 23 | 31 | 15 | 48 | 7 |
Note:The above theoretic data is for reference only,and thickness tollerance |
