HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Material: | 100% Polyester | Application: | Filter |
---|---|---|---|
Weave Type: | Plain Weave | Elasticity: | Low |
Monofilament Style: | Yes | Feature: | Anti-Static |
Product Name: | Multi Function Polyester Screen Mesh High Temperature Resistance Low Elasticity | ||
High Light: | polyester filter fabric,polyester screen mesh |

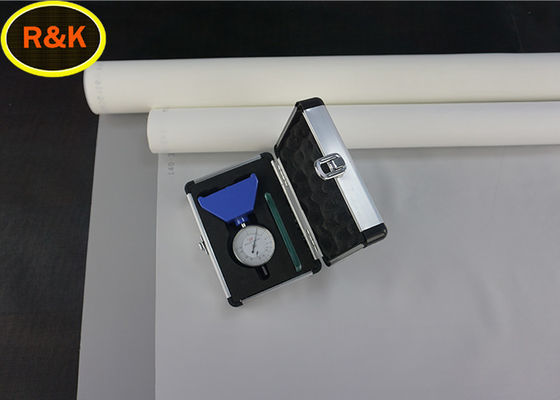

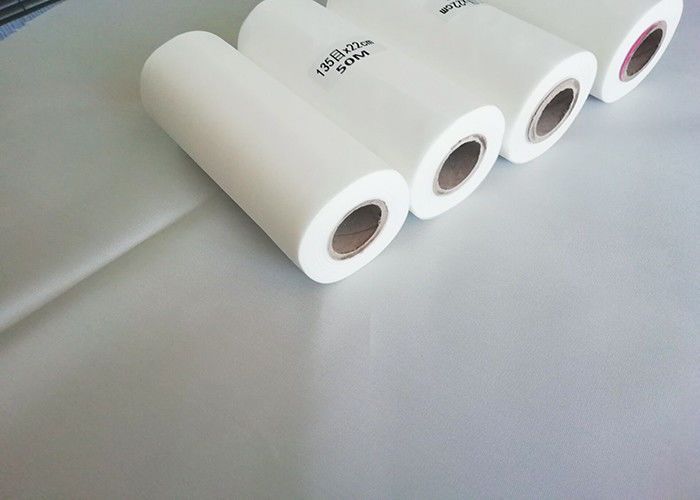

High temperature resistance monofilament polyester screen mesh
Description of monofilament polyester screen mesh
Monofilament polyester filters (low elongation) offer a wide range of mesh counts and significant advantages over traditional polyester woven mesh.
The single wire mesh is woven from yarn and the yarn is extruded from the heated polyester into a single strand of conventional monofilament. Polyester mesh fabrics stretch under tension: the higher the tension level, the more the yarn stretches. In the case of excessive tension, the thread reaches the "plastic deformation" point and the screen will no longer maintain tension. Our polyester screens are of high quality and precision, ranging from 25 mesh to 460 mesh/inch.
Our polyester monofilament woven mesh screens have excellent tear resistance and high fabric tension can be achieved with almost any commercially available stretching system. Very good dimensional stability ensures a highly repeatable tension.
Precisely weaving dimensionally stable threads produces fabrics with predictable and tight tolerance counts and mesh openings for consistent registration and clear resolution.
Application of polyester filter mesh
1. Liquid filtration
2. Dust collection or separation
3. Dry and wet filter bags
4. Screening
5. Milling
6. Automovie
7. Medical
8. Food
9. Pharmaceutical
10. White goods
11. Injection molding
12. Filter belt
13. Speaker and microcomputer front
14. Waterproof acoustic equipment
15. Interior design
16. Clothing
17. Refine
18. Decoration
Product Features
Low elongation polyester is a wide range of products we currently produce, and our products have significant advantages over traditional polyester monofilaments.
Parameters of food grade polyester mesh
Fabric number | Mesh count | Thread diameter | Mesh opening | fabric thickness | weight | width | |
NO. | Cm mesh/inch | micron | micron | micron | g/m2 | inch | |
DPP5 | 5T | 13 | 450 | 1550 | 850 | 259 | 45,50 |
DPP6 | 6T | 15 | 400 | 1270 | 760 | 246 | 45,50 |
DPP7 | 7T | 18 | 350 | 1080 | 660 | 220 | 45,50 |
DPP8 | 8T | 20 | 350 | 900 | 660 | 251 | 45,50,62 |
DPP9 | 9T | 23 | 350 | 760 | 670 | 282 | 45,50,62 |
DPP10 | 10T | 25 | 300 | 700 | 570 | 231 | 45,50,62,65,72 |
DPP12 | 12T | 30 | 300 | 530 | 580 | 277 | 45,50,62 |
DPP14 | 14T | 36 | 200 | 515 | 360 | 143 | 45,50,72 |
DPP15 | 15T | 38 | 250 | 420 | 470 | 240 | 45,50,62,72 |
DPP16 | 16T | 41 | 200 | 425 | 380 | 164 | 45,50,62,72, |
DPP18 | 18T | 46 | 180 | 375 | 330 | 150 | 45,50,62,72, |
DPP19 | 19T | 48 | 150 | 375 | 260 | 110 | 45,50,62,72 |
DPP20 | 20T | 50 | 150 | 350 | 260 | 115 | 45,50,62,72 |
DPP21 | 21T | 53 | 150 | 325 | 270 | 121 | 45,50,62,72 |
DPP24 | 24T | 61 | 150 | 270 | 280 | 138 | 45,50,62,72 |
DPP27 | 27T | 68 | 120 | 250 | 230 | 100 | 45,50,62,72 |
DPP28 | 28T | 71 | 120 | 240 | 230 | 103 | 45,50,62,72 |
DPP29 | 29T | 74 | 120 | 225 | 230 | 107 | 45,50,62,72 |
DPP30 | 30T | 76 | 120 | 215 | 230 | 111 | 45,50,62,72 |
DPP34 | 34T | 86 | 100 | 195 | 180 | 87 | 45,50,62,72 |
DPP36 | 36T | 91 | 100 | 180 | 180 | 92 | 45,50,62,72 |
DPP39 | 39T | 99 | 64 | 190 | 115 | 40 | 45,50,62,72 |
DPP40 | 40T | 102 | 100 | 150 | 190 | 103 | 45,50,62,72 |
DPP43 | 43T | 110 | 80 | 150 | 155 | 71 | 45,50,62,72 |
