HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Feature: | Highly Resistant To Corrosion | Material: | 304 Stainless Steel |
---|---|---|---|
Hole Shape: | Square Hole | Usage: | Test Sieve |
Weave Style: | Plain Weave | Filter Rate: | 90% |
High Light: | mesh basket strainer,food grade mesh bags |
Full range of mesh number 0.2 micron of stainless steel wire mesh test sieves

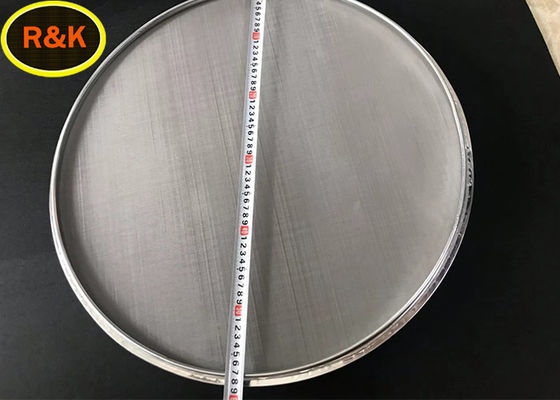

Description of stainless steel test sieve
The well-proven woven wire mesh screen consists of a sturdy stainless steel screen frame for high stability for reliable screening. Paying close attention to the specific requirements of the grid, the screen fabric is precisely attached to the frame and tensioned.
Screens can be easily combined with all other screen brands. Each sieve leaving our company will be accompanied by a test report or a special inspection certificate that meets national and international standards according to your requirements.
Our test sieves come in a variety of diameters, mesh sizes and varieties.
Stainless steel test sieve Feature
Stainless steel screen frame for high dimensional stability
High alloy stainless steel, highly resistant to corrosion and easy to clean
Screen sizes from 20 microns to 125 mm
Permanently tight mesh fabric
Excellent product quality due to extensive optical inspection
Since the O-ring is placed in the groove designed for this purpose, it has maximum stability and optimum sealing when used in the frit stack.
Clear and precise marking of screens with full traceability based on individualized laser engraving
Test Sieve Specification | ||
Sieve Material | AISI304/316/316L,etc. | |
Technology | Woven | |
Standard | ASTM E11-09 ISO3310-1 | |
Sieve Diameter | 3" 6" 8" 10" 12" 200mm 300mm | |
Frame | Material | Brass , stainless steel ,galvanized, etc. |
Height (full) | 1-3/4'' -- 2-5/8'' | |
Sieve Shape | Round | |
Mesh opening / Aperture | 5--500mesh 10--200μm |
