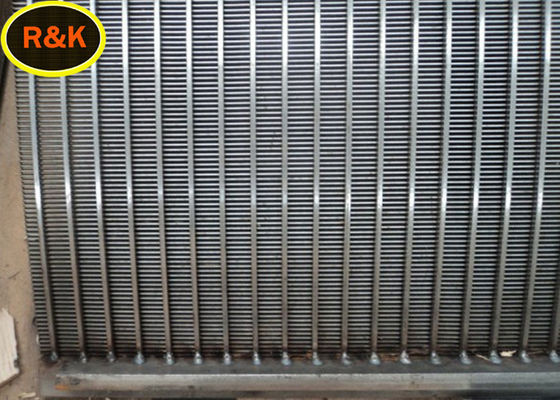

Corrosion-resistant stainless steel wedge wire screen for filtering coal
Description of wedge wire screen
The wedge wire mesh is made by winding a longitudinal line around a longitudinally placed support rod. All wires and rods are resistance welded at each contact point. Various combinations of wire, support rods, flow direction and various grooves (fixed or variable) allow AMACS to design screens based on your exact specifications. We produce wedge wire mesh for a variety of industries including well production, water treatment, food and beverage, oil and gas, pulp and paper, mineral and aggregate processing, refining and petrochemicals.
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
Application of mine screen
Widely used in mining, petroleum, chemical, construction, machinery accessories, protective nets, packaging nets, barbecue nets, barbecue oven nets, sintering furnace nets, hardware products nets, handicraft nets, vibrating screens, baskets Use nets, food machinery nets, cookware nets, wall nets, grain, roads, railways, infrastructure nets, grading screening for solid materials, filtration of liquids and muds, civil use, etc.
Feature of wedge wire mesh
• Handling high pressure and heavy duty bearings
• Consistent and ultra-flat screen surface
• Suitable for highly corrosive applications
• Suitable for aseptic applications
• Bulk material stainless steel
• Coating other metal alloys
• Molding line
