Product Details:
Payment & Shipping Terms:
|
Feature: | Durable | Type: | Welded Mesh |
---|---|---|---|
Filter Rating: | 99% | Application: | Filter Coal |
Weave Style: | Welded | Sample: | Offer Sample |
High Light: | sieve mesh sheets,water well screen |

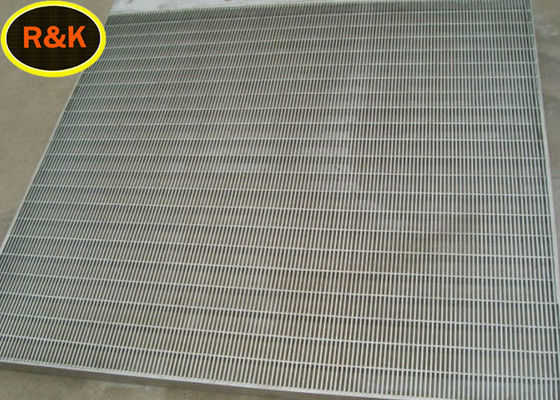

High-strength stainless steel wedge wire screen for filtering coal
Description of wedge wire screen
We are a major supplier of cylindrical wedge screens, flat and curved wire mesh in China. These screen components are tailored to specific specifications and are designed for wastewater/process water treatment, quarry screening, mine screening and other industrial screening.
Our engineering department ensures that each product meets the specific needs of our customers, as well as consultants and wedge screens.
Material: Made of various galvanized steel or stainless steel, resistant to chemicals and heat. Also suitable for high temperature and high pressure alloys.
The wedge wire mesh is formed by winding a longitudinal wire around a support rod placed longitudinally. All wires and rods are resistance welded at each contact point.
Various combinations of contours and support rods, as well as various apertures between the lines and rods, allow us to design screens based on your technical or cosmetic specifications. Plates, cylinders, tubes and baskets, inlet screens, profile lines and wedge-shaped wire filter elements are new screens made by Atlas. These innovative products enable you to get the most cost-effective wedge mesh and wire mesh
Feature of wedge wire mesh
Stainless steel 304 ring wire bending structure. The metal screen bends the curved shape instead of the flat plate. The inclined curved surface design significantly increases the screening and dewatering capacity of the feed. Profile screen elbows are an ideal alternative to perforated metal or woven mesh screens for milling and sizing in the sugar and starch industry, as well as food processing applications. The wedge screen is stronger than the woven mesh filter and maintains precise screening at high pressures of the material.
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
