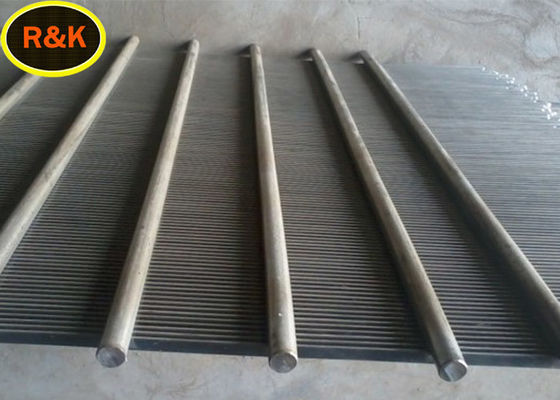

Stainless steel wedge wire welded mesh sifting sieve bend screen for water treatment
Description of wedge wire screen
The wedge plate is designed in a unique way to meet customer requirements. This wedge wire plate is a steel welded structure. It is mainly used for filtration, separation and retention. It is one of the most cost-effective solutions for screening applications. The widespread use of wedge panels is also due to the fact that the grooves formed by the V-shaped surface lines prevent clogging. The high opening area of the wedge panel provides excellent capacity. It also has high tensile strength and extended service life. It is one of the most attractive solutions for separating solids, dewatering, and dispensing from liquids. It also provides a strong structure due to the welding of each intersection.
Application of wedge wire mesh
Used for separation, sizing, dewatering and sieving of liquids, gases and solids in oil wells, wells and the chemical industry.
Feature of the wedge wire mesh
1. The tapered cone opening becomes very wide, increasing the dewatering capacity
2. Non-blocking, unlike the grid, only two points of contact can fix the particles
3. The slot size ranges from .001 to .500.
4. Robust and capable of carrying heavier loads without support structure
5. One-piece structure
6. Flexibility in production, manufacturing and molding
7. Various building materials
8. Low maintenance cost and easy to clean
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
