Product Details:
Payment & Shipping Terms:
|
Filter Rating: | 99% | Application: | Filter Coal |
---|---|---|---|
Weave Style: | Welded | Sample: | Offer Sample |
Product Name: | Wedge Wire Mesh | Hole Shape: | Wedge |
Usage: | Filtration&Separator | Type: | Filter Cylinder |
High Light: | water filter pipe,water well screen |

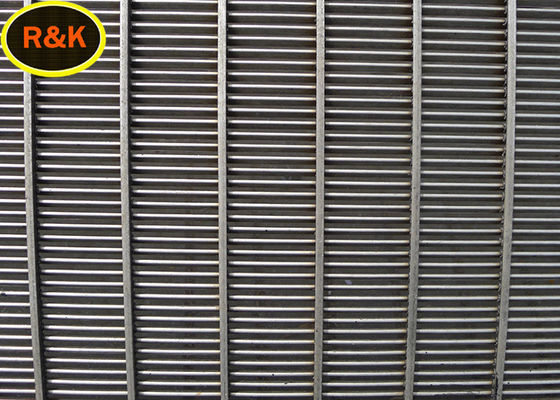

304 Johnson wedge wire water well filter stainless steel screen
Description of wedge wire screen
The wedge wire mesh is a high capacity fractionation and dewatering screen that supports the separation of solid and liquid slurries by combining fluid action, gravity and centrifugal forces. The product's unique features include easy-to-replace deck sections, wear resistance, no power, low operating costs, reversible screens and efficient handling of high volume materials. These screens are designed to maximize performance by combining high quality materials and designs to provide high dewatering performance. These screens are mainly used in the coal industry, but they are used in mineral and industrial applications.
Provides the advantages of a wedge mesh compared to other types of screening
1. The tapered cone opening becomes very wide, increasing the dewatering capacity
2. Non-blocking, unlike the grid, only two points of contact can fix the particles
3. The slot size ranges from .001 to .500.
4. Robust and capable of carrying heavier loads without support structure
5. One-piece structure
6. Flexibility in production, manufacturing and molding
7. Various building materials
8. Low maintenance cost and easy to clean
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
