Product Details:
Payment & Shipping Terms:
|
Filter Rating: | 99% | Application: | Filter Coal |
---|---|---|---|
Weave Style: | Welded | Product Name: | Wedge Wire Mesh |
Hole Shape: | Wedge | Usage: | Filtration&Separator |
Type: | Filter Cylinder | Width: | Customize Size |
High Light: | water filter pipe,sieve mesh sheets |

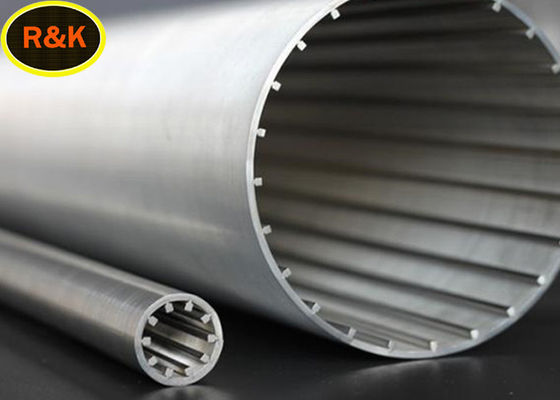

v shape wedge wire wrapped stainless steel micro screen filter mesh
Description of wedge wire screen
We produce wedge wire mesh and wire mesh products to meet a wide range of needs. Various production methods can be implemented to handle the flow direction and strength of the product. Our screen products feature externally-circumferential wedge lines that are supplied externally to the interior. The internal wedge line can face the support rod for internal to external applications. A support structure can be included to enhance strength. Screens can be constructed to allow parallel or vertical flow.
The wedge mesh is particularly well structured to meet the needs of high volume filtration. These screens are self-cleaning and are rugged and reusable. A sieve bent with a wedge wire perpendicular to the flow direction enables water to fall through the screen to collect as fresh water, while the angle and flow enable the solids and branches to slide. Wedge screens are effective in wastewater treatment, dewatering equipment and other applications. Flat screens are used in operations similar to those of screen bending and sewage separation systems.+
Application of a wedge mesh compared to other types of screening
Industrial wedge wire: coal processing, mineral refining, gold, aggregate, gravel, abrasive, cement, clay, pulp and paper, wood products, steel coke, sinter, iron, construction, agriculture, chicken, food processing, sugar, Brewing, matting, grain processing, animal feed, fertilizer, rendering, health, chemical, petroleum, paint, plastic and vibration.
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
