400 Mesh Polyester Screen Printing Mesh For Pcb

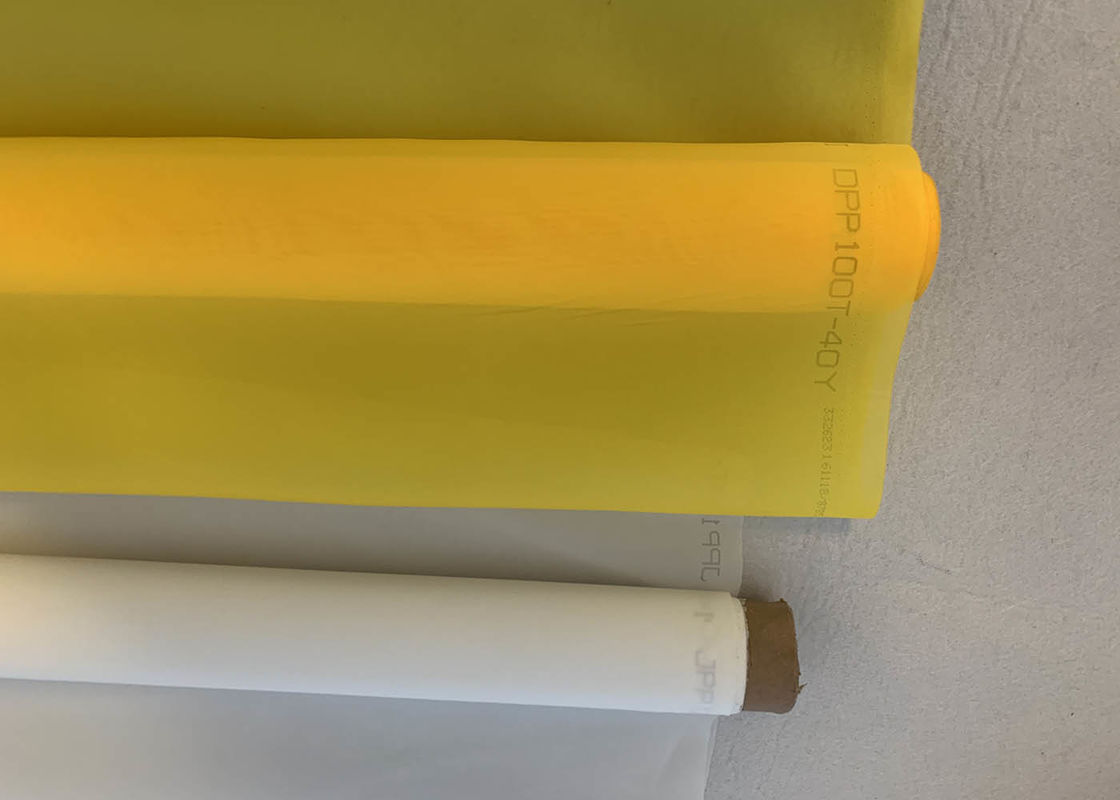

Large Image : 400 Mesh Polyester Screen Printing Mesh For Pcb

Product Details:

Place of Origin:	Hebei, China (Mainland)
Brand Name:	R&K
Certification:	FDA / SGS / ISO:9001
Model Number:	R&K-Polyester Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	1meter
Price:	Negotiable
Packaging Details:	Carton covered with woven bag;If large quantity,wooden case.
Delivery Time:	7-15 days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	5000 Meters per month

Contact Now

Detailed Product Description

Product Name:	400 Mesh Polyester Silk Ink Screen Printing Mesh For PCB	Weave Type:	Plain
Aperture:	20μm-1000μm	Mesh Count:	18 Mesh-420 Mesh
Monofilament:	Yes	Material:	100% Polyester
Usage:	PCB Printing	Packing:	Carton
Type:	Silk Ink Screen Printing Mesh	Width:	1.27m , 1.45m ,1.65m
High Light:	acid resistant polyester screen printing mesh , pcb polyester screen printing mesh , screen printing mesh fabric 400 mesh

400 Mesh Polyester Silk Ink Screen Printing Mesh For PCB

How to choose the polyester mesh

specification	Usage
24T	Beach towels,Pennant inks,Giltter inks,Thicker inks
34T,36T,39T,43T	Textile inks,Opaque inks textile,T-shirts
49T,48T,54T,55T	Textile inks,Finer textile design,Water based inks
62T,64T,68T,72T	Enamel inks,Very fine textile ink or course plastisol ink printing
77T	Paper & Board inks & textile
90T,100T	Vinyl inks,Plastic inks,Plastisol inks,Solvent based
110T,120T,140T	Halftone printing,Paper & Board Vinyl Plastic
150T,165T	U.V. Printing,Or very fine halftone work,solvent inks

Product Specification

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
12-250	30	1:1	583	250	49	490	20	228	117
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
16-200	40	1:1	425	200	46	400	18	172	148
20-120PW(T)	50	1:1	380	120	58	210	11	122	76
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	1:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-34PW(S)	420	1:1	23	31	15	48	2	7	36
180-27PW(S)	460	1:1	23	27	16	43	2.5	7	31

Product Features

1. High durability and best tensility: all threads are the best domestic or imported.
2. Nice appearance, standard size: all are imported worldly advanced production lines from Switzerland.
3. Clean and never depigment
4. Faster turnaround time from the screen room to the pressroom
5. Good diathermancy
6. High air permeability
7. Acid resistance and Alkali resistance
8. Long working life & Hard wear

Product Application

T-shirt, Luggage, Shoes and Hats screen printing: Computer Bag, Handbags, Shopping bags, Luggage, wallets, composite packaging materials, Canvas Shoes, hat/cap screen printing, etc.

Advertising Gifts screen printing: Mouse Pad Textile Slippers, Coasters, Bar Cushion, Paintings, Flags, Umbrella screen printing,etc.

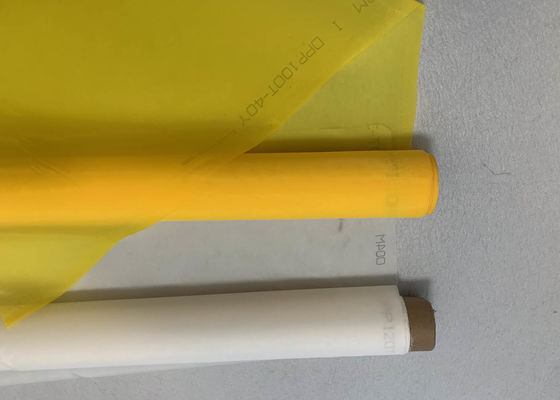

400 Mesh Polyester Screen Printing Mesh For Pcb 0
