Fine Stainless Steel Screen Printing Mesh For Thermal Acoustic Engine

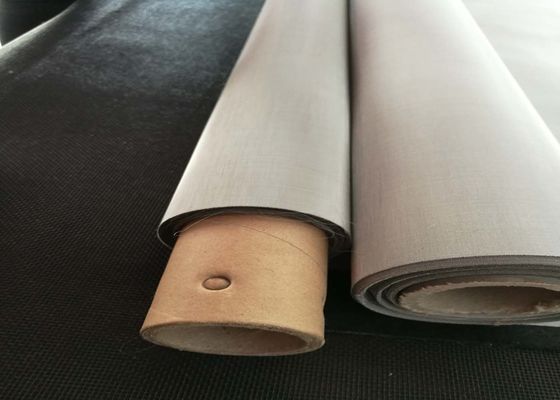

Large Image : Fine Stainless Steel Screen Printing Mesh For Thermal Acoustic Engine

Product Details:

Place of Origin:	Hebei , China
Brand Name:	R&K
Certification:	FDA
Model Number:	R&K-L

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	negotiation
Packaging Details:	a.High mesh count:Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet b.Low mesh count:Packed in rolls,Then with waterproof and woven bags,Finally in wooden case c.Sheet shape:Inside with plastic film and outside with
Payment Terms:	L/C , T/T , Western Union , Paypal , Trade Assurance
Supply Ability:	300 Square Meter/Square Meters per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire	Weave Style:	Plain,dutch,twill
Wire Diameter:	0.018mm-2.5mm	Length:	30m Per Roll Or As Required
Mesh:	1-3200mesh	Sample:	1 M Is Free
Colour:	Gray	Applications:	Filters
High Light:	polyester bolting cloth , stainless steel bolting cloth

Fine Stainless Steel 100 Mesh 0.025mm Wire Mesh for Thermal Acoustic Engine

Descriptions of stainless steel wire mesh:

1. Material: Stainless steel wire mesh used AISI302, 304,304L,316,316L,430,309,310S,904L,2205,2507 etc stainless steel wire as raw material.

2. Wire Diameter: 0.015-1.8mm

3. Mesh Count: Plain weave can be woven up to 400 mesh ; Twill weave can be woven from 400 to 635mesh ; Dutch weave can be woven up to 3200mesh.

4. Aperture: 0.03-10mm

5. Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.

6. Features of stainless steel wire mesh:

Corrosion resistance.

Anti-acid and alkali

Anti-high temperture.

Good filter performance.

Long using life

7. Application:

In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.

Specification:

Stainless Steel Wire Mesh
Mesh/inch	Wire Diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385
Width of Stainless Steel Wire Mesh: 0.6m-1.5m
