T Shirt Printing 110 Mesh 165T Polyester Screen Printing Mesh

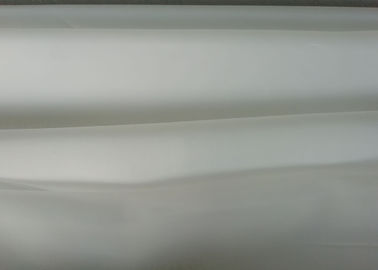

Large Image : T Shirt Printing 110 Mesh 165T Polyester Screen Printing Mesh

Product Details:

Place of Origin:	HEBEI ,CHINA
Brand Name:	R&K
Certification:	MSDS,ROSH,SGS,ISO 9001
Model Number:	R&K-Polyester mesh

Payment & Shipping Terms:

Minimum Order Quantity:	20 meters
Price:	Negotiable
Packaging Details:	1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time:	7~15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Meters per month

Contact Now

Detailed Product Description

Weave Type:	Plain	Elasticity:	Low
Material:	100% Polyester	Mesh Opening:	25-1068um Printing Mesh
Specification:	6T-165T	Usage:	Silk Screen Printing
High Light:	polyester printing screen , polyester silk screen

Chemical Resistant 110 Mesh Polyester Screen Printing Mesh For T Shirt Printing

Product Introduction

The polyester screen is made of chemical synthetic fibers,It belongs to polyester series.Polyester Screen Printing Mesh It is a type of woven polyester which is extracted from yarn by using a particular mechanism of heating of the polyester. Thus, the heater form is made in a single filament threaded form. The extruded form of thread filament is the manufactured and is spun according to the required diameter.

Material	100% polyester
Thickness	55-365 Micron
opening size	100micron
width	115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm
Thread diameter	31-200 Micron

Product Features

1 . Screen printing is highly adaptable and has a wide range of applications

2 . Screen printing can not only print in monochrome, but also register and screen color printing.

3 . The light resistance of screen printing products is stronger than that of other types of printed products, and it is more suitable for outdoor advertising and signage.

4 . Screen printing can be used for large-area printing. Today's screen printing products can reach a maximum size of 3 meters × 4 meters, or even larger

Product Application

1 . Polyester printing mesh can be applied to T-shirt, clothing printing

2 . Polyester printing mesh can be applied to Flatbed Textile

3 . Polyester printing mesh can be applied to home appliance printing

4 . Polyester printing mesh can be applied to glass containers printing

Product Specification

Mesh Count Diameter (Mesh/cm μm)	Mesh Count(Mesh/inch)	Aperture(μm)	Thread Diameter(μm)
13-150PW(SL)	33	619	150
21-80PW(S)	55	296	80
21-150PW(SL)	55	326	150
24-100PW(T)	60	316	100
28-140PW(SL)	70	217	140
32-55PW(S)	81	257	55
32-64PW(S)	81	248	64
32-100PW(T)	81	212	100
36-90PW(T)	92	183	90
39-55PW(S)	100	177	55
40-80PW(T)	103	166	80
43-80PW(T)	110	149	80
47-45PW(S)	120	166	80
47-55PW(S)	120	152	55
48-70PW(T)	122	133	70
53-45PW(S)	135	143	45*2
53-55PW(S)	135	133	70
54-64PW(T)	137	115	64
54-70PW(HD)	137	109	70
61-64PW(T)	155	90	64

Product Weave

The most common weaving pattern in Plain screen printing mesh is called "plain weave" and will be designated on labels as "PW." It is a simple over-and-under weaving pattern. "Twill weave (TW)" is used to create thicker, sturdier screens and relies on complex patterns of weaving, which vary depending on the manufacturer. Twill weave mesh will be thicker than plain weave even if the mesh count is identical. The Screen Printing Technical Foundation compared the different weave's performance and found that twill weave transferred somewhat less ink than plain weave.

T Shirt Printing 110 Mesh 165T Polyester Screen Printing Mesh 0
