HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Payment & Shipping Terms:
|Usage:||Liquid Filter||Weave Style:||Plain Woven Nylon Mesh|
fda Nylon Filter Mesh,
90 micron Nylon Filter Mesh,
200 micron Nylon Filter Mesh

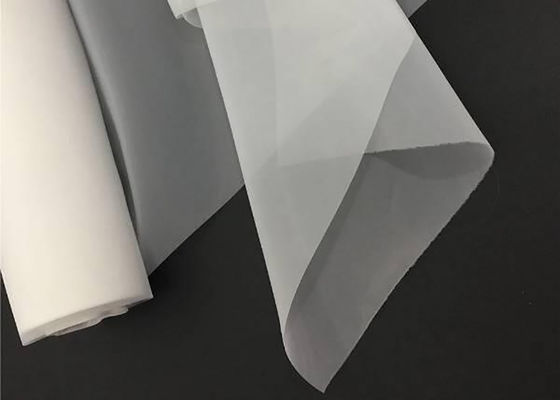

Compliance With FDA Food Grade 90 200 Micron Nylon Filter Mesh Flour Mesh
Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications
This can have plain weave or double warp structure and can be used in Filtration, Screening, Sifting or Milling applications from the production of filter bags, and screens to being injection moulded as special filter applications.
Material:FDA food grade commercial nylon mesh
Mesh opening:5-1950 micron
Weave Style:Plain Weave
Thread Diameter:31-550 micron
Roll length:30-70m or customized
Roll width:1m, 1.25m, 2.5m, 2.95m or customized
Usage:liquid filter, air filter, dust filter
Type:filter mesh, filter cloth, mine sieving mesh, filter disc, filter cylinder
5–236 meshes for different filtration requirements.
Available for filter disc, filter tube, filter belt and filter bags.
Plain weave or twill weave options.
Excellent in liquid, powder, dust, gas and other element filtration.
Alternative to polyester (PA) filter mesh.
Nylon filter mesh are widely used in:
medical and laboratory.
infusion and transfusion filters
arterial and venous filters in oxygenator reservoirs and blood bag
Making nylon filter bags
Non-toxic,odorless,tasteless,high strength,high elongtation
wear resistant ,high strength,good filtration(high air permeability)
Service long life time.
Bulk mesh in stock.
sample are available for you.
Custom-make.(quantity,color, width and so on,as your request)
we are the big stable factory,welcome you to visit our plant.
|It has high tension threshold and breaking point|
|It has high modulus, low elongation monofilament nylon yarn|
|It has resist to chemicals, abrasion, heat and moisture|
|Minimal tension loss during stretching process|
|Improved registration due to stable fabric tension|
|No surface treatment|
Mesh Count is the number of threads per inch in the direction of warp and weft of the fabric.The mesh count is indentical in both warp and weft direction for Share Fitration's woven mesh.
Thread Diameter is specified as the diameter of the thread in microns.Yarn sizes in both warp and weft directions are the same.
Mesh Opening is the size or space between threads.The mesh opening is the result of the combination of the mesh count and yarn size.Mesh opening will determine the size or amount of material that will pass through the fabric.
1. We always use poly bag for the goods which ship by air, so that customer can save freight free
2. Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3. There also have some customer request us to use the carton to packing their goods
4. We can according to customer's requirements
