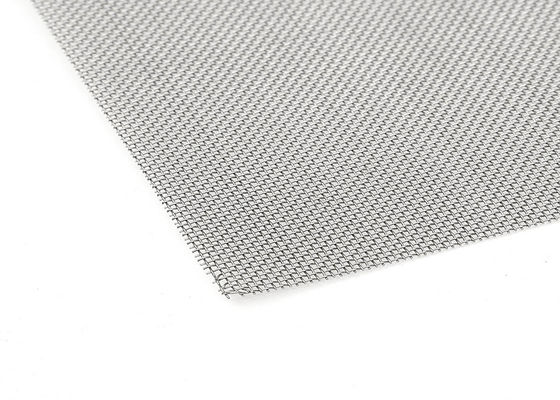

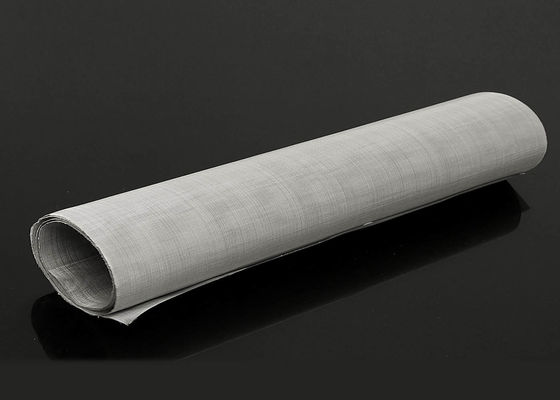

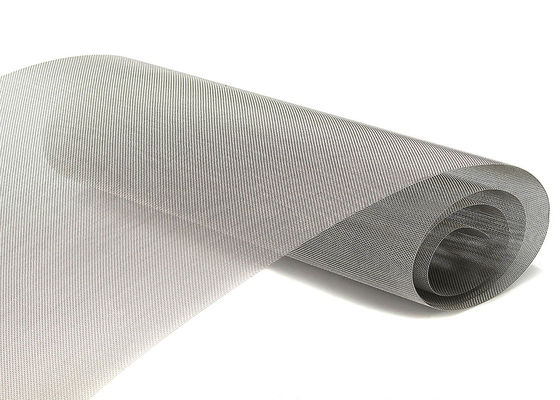

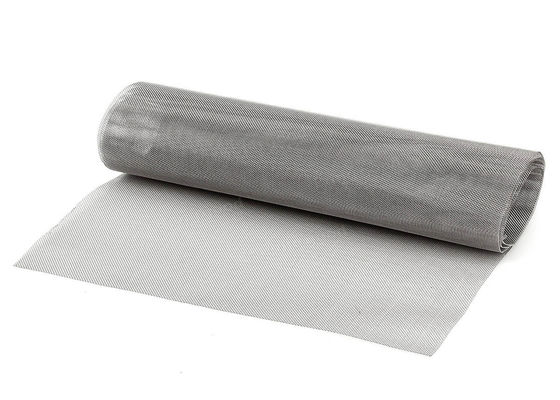

33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter

33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter
33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter 33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter 33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter 33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter

Large Image :  33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter

Product Details:
Place of Origin: Hebei,China
Brand Name: R&K
Certification: ISO9001:2008,SGS,FDA
Model Number: R&K-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1m
Price: negotiation
Packaging Details: Packing by rolls or folded then plastic bags inside carton or other packages according to the customers' demand.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.
Supply Ability: 2000 square meter per month
Detailed Product Description
Material: Stainless Steel 304 ,316 Weave Type: Plain/Twill/Dutch
Mesh Count: 1-400 Width: 1m
Color: Silver Application: Filtration
High Light:

80 Micron ss wire mesh

,

316 grade ss wire mesh

,

33um ss wire mesh

Stainless Steel 304 316 Wire Mesh Weaving Net / Cloth 80 Micron Mesh Sieve For Filter





Description of stainless steel wire mesh:



Material: SUS302, 304, 304L, 316, 316L, 310s
Material: stainless steel wire, stainless steel plate
Stainless steel crimped wire mesh
Stainless steel crimped wire mesh (3 sheets)



Stainless steel mesh material is divided into 304, 304L, 316, 316L, 310, 310s and other metal wires.

The different is depends on the nickel content.

Nickel (Ni), the higher the content, the more corrosion-resistant, the worst is no nickel, which is basically equivalent to 201.
x nickel means the percentage of nickel in stainless steel. It is customary to think that nickel content "=8% stainless steel is 304 stainless steel

201----2Ni
302----4Ni
304----8Ni
316----10Ni
316L----12Ni



Features of stainless steel wire mesh:



The surface is smooth, rust-proof, corrosion-resistant, non-toxic, hygienic and environmentally friendly. Uses: Hospitals, pasta, meat barbecues, life-use flower baskets, fruit basket series are mainly made of stainless steel wire mesh, using electrolytic polishing technology for surface treatment, the surface is as bright as a mirror.



Stainless steel is heat-resistant, acid-resistant, corrosion-resistant and wear-resistant. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine and other industries, mainly for gas and liquid filtration and other media separation.


Application of stainless steel wire mesh :


Material: stainless steel woven mesh, copper mesh, mat mesh, stainless steel sintered mesh, stainless steel square mesh, metal plate mesh, expanded metal mesh, perforated mesh and other metal meshes.
Stainless steel edging mesh
Hemming material: stainless steel plate.
Product shape: rectangle, square, circle, oval, ring, rectangle, hat, waist, special shape
Stainless steel spot welded mesh
Material: stainless steel woven mesh, copper mesh, mat-type mesh, stainless steel sintered mesh, stainless steel square mesh, metal plate mesh, expanded metal mesh, perforated mesh and other metal meshes.
Product structure: single-layer, double-layer, three-layer, four-layer, five-layer, multi-layer.
Processing size: 6 mm to 650 mm.
Product classification: single-layer filter mesh, multi-layer spot welded filter mesh, edging filter mesh, combined filter mesh.
Stainless steel mesh tube
Material: stainless steel woven mesh, stainless steel square mesh.
Features: It is made of single-layer or multi-layer metal mesh. The number of layers and the number of meshes constituting the wire mesh are determined according to different use conditions and purposes. High concentricity,
Withstand high pressure, good straightness, stainless steel material, without any burrs, long service life.



Specification of the stainless steel wire mesh:



Stainless steel mesh is classified according to species: 1. Stainless steel plain weave mesh. 2. Stainless steel twill mesh. 3. Stainless steel bamboo pattern net. 4. Five-shed stainless steel mesh. 5. Stainless steel punching net. 6. Stainless steel crimped wire mesh. 7. Stainless steel chain link fence. 8. Stainless steel expanded metal mesh. 9. Stainless steel welded wire mesh. 10. Stainless steel hexagonal net. 11. Stainless steel mat type net. 12. Stainless steel barbecue net. 13. Stainless steel mine screen. 14. Stainless steel tortoise shell net.



Mesh/Inch Wire Diameter Aperture Open Area Weight
(kg/Square
meter)
Inch MM Inch MM
1*1 0.08 2.03 0.92 23.37 92 2
2*2 0.063 1.6 0.437 11.1 87.4 2.5
3*3 0.054 1.37 0.279 7.09 83.8 2.7
4*4 0.047 1.19 0.203 5.16 81.2 2.7
5*5 0.041 1.04 0.159 4.04 79.5 2.6
10*10 0.025 0.64 0.075 1.91 74.9 2
12*12 0.02 0.508 0.063 1.6 75.9 1.5
14*14 0.02 0.508 0.051 1.3 71.9 1.8
16*16 0.018 0.457 0.445 1.13 71.2 1.6
18*18 0.017 0.432 0.386 0.98 69.4 1.6
20*20 0.02 0.24 0.03 0.76 76 0.56
20*20 0.016 0.33 0.034 0.86 72.2 1.1
30*30 0.12 0.305 0.213 0.54 63.9 1.4
30*30 0.0094 0.24 0.243 0.62 72.1 0.84
40*40 0.01 0.254 0.015 0.38 59.9 1.3
50*50 0.0055 0.14 0.0145 0.368 72.4 0.48
60*60 0.0047 0.12 0.012 0.303 71.6 0.42
60*60 0.0059 0.15 0.0107 0.273 64.5 0.65
80*80 0.0055 0.14 0.0069 0.117 45.5 0.76
100*100 0.0045 0.114 0.0055 0.14 55.1 0.59
100*100 0.004 0.102 0.006 0.152 59.8 0.49
120*120 0.0028 0.07 0.0057 0.147 67.7 0.29
150*150 0.0024 0.06 0.0043 0.11 64.7 0.26
150*150 0.0028 0.07 0.0039 0.1 58.8 0.38
165*165 0.0019 0.05 0.0041 0.104 67.5 0.2
180*180 0.0019 0.05 0.0035 0.091 64.5 0.22
180*180 0.0024 0.06 0.0031 0.081 57.4 0.32
200*200 0.0019 0.05 0.003 0.077 60.6 0.24
200*200 0.0024 0.06 0.0026 0.067 52.7 0.35
250*250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270*270 0.0016 0.04 0.0021 0.054 57.4 0.21
300*300 0.0016 0.04 0.0018 0.045 53.5 0.23
325*325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400*400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500*500 0.0009 0.025 0.001 0.0258 50.7 0.15
635*635 0.0007 0.018 0.0008 0.022 55 0.1

33um Weaving Net / Cloth 80 Micron Ss Wire Mesh Sieve For Filter 0
