Product Details:
Payment & Shipping Terms:
|
Weave Type: | Plain | Monofilament Style: | Yes |
---|---|---|---|
Printing: | Silk Screen Printing | Material: | Polyester |
Mesh Count: | 200 Mesh | Width: | 1.27m , 1.45m ,1.65m |
Product Name: | Ceramics Printing Use Polyester Silk Screen Printing Mesh | Usage: | Ceramics Printing |
High Light: | FDA certification silk screen printing mesh,1.45m width silk screen printing mesh,200 monofilament polyester mesh |

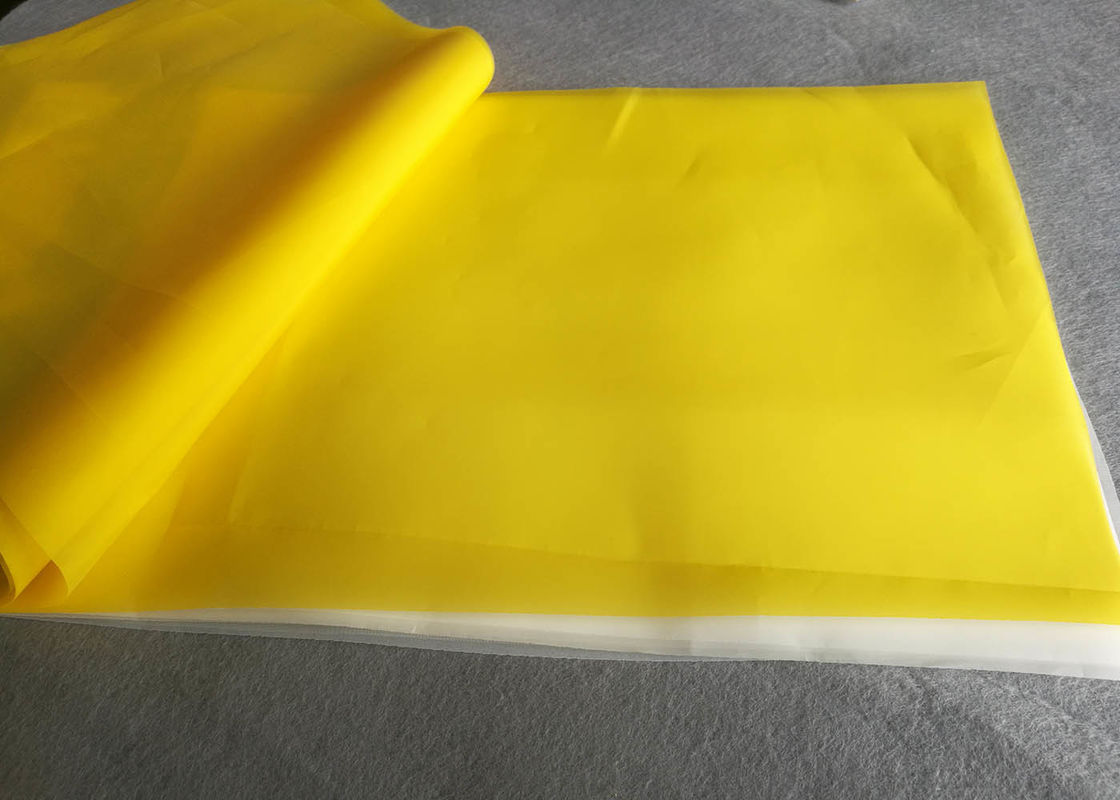

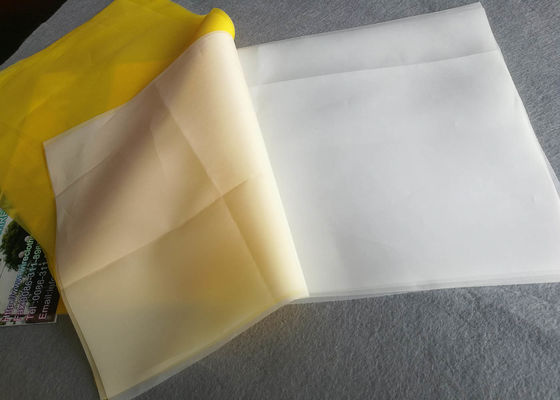

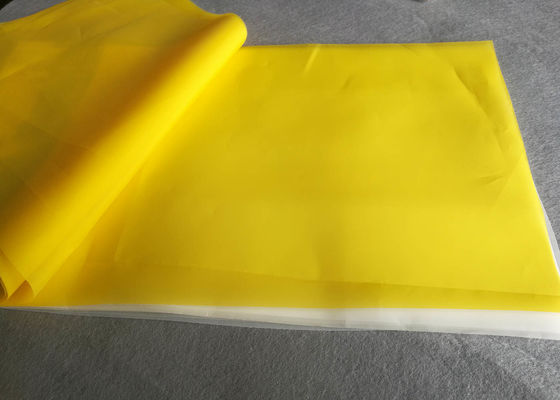

Monofilament 200 Mesh Nylon Silk Screen Printing Mesh
Product Introduction
The mesh is the size or spacing between threads. The mesh opening is the result of the combination of the number of meshes and the yarn size. The opening of the mesh will determine the size or amount of material passing through the fabric.
Material:100% polyester
Width:105cm,115m,127cm,136cm,145cm,157cm,165cm,188cm,220cm,360cm
Color:white,yellow,black
Tensile strength:25N/cm-85N/cm
Product Details
Product specification
Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
12-250 | 30 | 1:1 | 583 | 250 | 49 | 490 | 20 | 228 | 117 |
13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
16-200 | 40 | 1:1 | 425 | 200 | 46 | 400 | 18 | 172 | 148 |
20-120PW(T) | 50 | 1:1 | 380 | 120 | 58 | 210 | 11 | 122 | 76 |
21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
140-34TW(T) | 355 | 1:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 |
150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
165-34PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
180-27PW(S) | 460 | 1:1 | 23 | 27 | 16 | 43 | 2.5 | 7 | 31 |
Product Application
Provide silk screen, which can be used for textile printing, plate printing, electronic printing, ceramics, glass, color paper printing, backing and advertising and filtering.
Our screen printing net is made of polyester monofilament yarn.
