Product Details:
Payment & Shipping Terms:
|
Material: | Nylon | Color: | Yellow / White |
---|---|---|---|
Usage: | Filter Paint | Filter Rating: | 27 % - 80 % Filter Mesh |
Hole Shape: | Square | Type: | Filter Mesh |
Product Name: | Nylon Mesh Screen | ||
High Light: | nylon mesh filter fabric,fine nylon mesh |

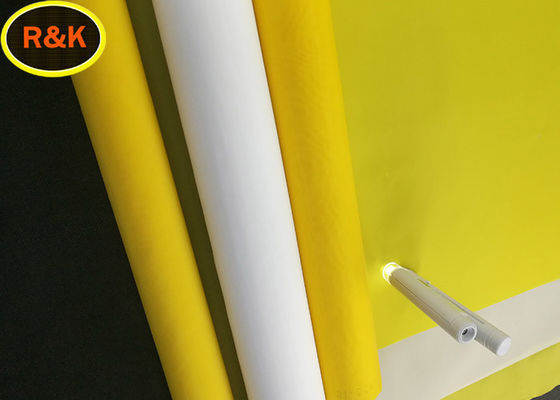

100 micron nylon sieve cloth mesh manufacturer for filter
Description of nylon mesh
Monofilament synthetic fibers can be woven very precisely to produce industrial textiles with a narrow pore distribution. This precision weaving process produces fine mesh fabrics with pore sizes (hole sizes) as small as 50 microns and strand and thickness tolerances of +/- 10%.
The structure of the plastic sheet is determined by the type of yarn, the size of the yarn and the number of yarns. Monofilament yarns are a single continuous filament that produces a relatively smooth surface. In the plain weave structure, the through holes of the monofilament fabric provide minimal flow restriction and surface loading of the particles.
Features:
Chemical resistance.
Monofilament structure for thinner pore sizes.
Fine meshes provide better filtering performance.
Better ductility and resilience.
Can be used with perforated or woven filter media.
Suitable for filtering hard and high viscosity liquids.
Easy to clean and maintain.
Cost-effective.
Plastic frames and metal frames are available.
Uses:
Widely used in industrial filtration, petroleum, chemical, printing, screen printing, construction, fisheries and other industries.
Specifications:
Nylon mesh can be supplied in a variety of sizes depending on the application. Typically, nylon mesh for filtration and screening applications has fine pores and fine wire diameters, while nylon mesh for fishing and agricultural applications has larger mesh spacing and roving.
Product Parameters
Nylon Filter Mesh | |||||||
Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
NO. | cm mesh/inch | micron | micron | % | micron | g/m2 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JMG7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 35 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 40 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 50 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
