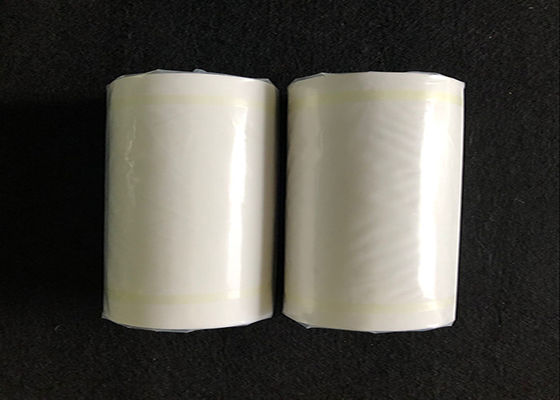

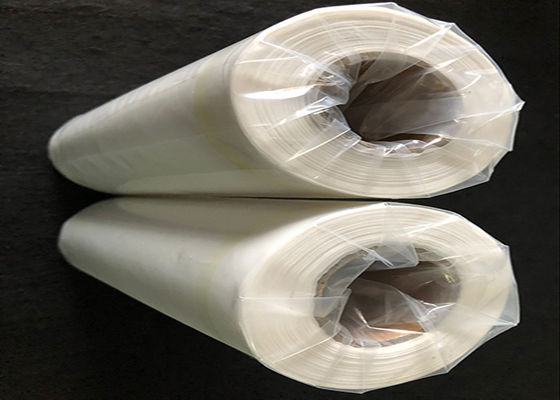

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll

Large Image : 0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	FDA/SGS/ISO:9001
Model Number:	R&K-Nylon Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10m
Price:	Negotiable
Packaging Details:	Waterproof inside,then carton,if large quantity,wooden case.
Delivery Time:	5-10days according to quantity
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000m per month

Contact Now

Detailed Product Description

Product Name:	0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll	Material:	Nylon
Width:	0.2 M	Length:	30/50m
Weave Style:	Plain Weave / Twill Weave	Mesh Count:	30-300 Mesh
Color:	White/ Yellow	Certificate:	FDA
Aperture:	23-619 Micorns	Filter Tube:	Customize
High Light:	nylon mesh filter fabric , fine nylon mesh

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll

Product Introduction and feature:

The nylon screen material is environmentally friendly. Non-doped recycled materials, not easy to deform, long service life, environmentally friendly and healthy, up to food-grade standards
Corrosion-resistant, durable, nylon mesh has the characteristics of high toughness, good elasticity, oil resistance, abrasion resistance, etc.
Wide range of applications, suitable for liquid filtration, powder filtration, paint filtration, ink filtration and other oily products filtration, suitable for alcohol filtration, food filtration, industrial filtration, etc.

Nylon mesh filtering is performed by linear codes in the mesh size range from 7 microns to 1920 microns. Linear code widths range from a minimum of 36 inches to a maximum of 60 inches, depending on mesh size and inventory. In addition to mesh openings, the following table also provides the following features: opening area, number of meshes (threads per inch), and thread diameter. This monofilament woven mesh material is nylon 6/6, which has effective wear resistance and alkali resistance.
Softening point: 170 ° C to 230 ° C (338 ° F to 446 ° F)
Melting point: 210 ° C to 250 ° C (410 ° F to 482 ° F)

Product Application

Office building, meeting room, hospital, shopping mall, stadium, airport etc. Large civil building ventilation system;
General plant ventilation and air conditioning system;
Clean room ventilation and air conditioning system in the primary filter

Product Specification

Nylon Filter Mesh(Nylon filter cloth/Nylon woven mesh)
Fabric number	Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
NO.	cm mesh/inch		micron	micron	%	micron	g/m2
JPP5	5	12	500	1500	56	850	271
JPP6	6	16	400	1267	58	780	208
JMG7	7	18	350	1079	57	675	186
JPP8	8	20	350	900	52	685	212
JPP9	9	24	250	860	60	455	145
JPP10	10	25	300	700	49	576	195
JPP12	12	30	250	583	49	470	162
JPP12	12	35	300	533	41	585	234
JPP14	14	40	300	414	34	595	273
JPP16	16	40	200	425	46	370	139
JPP16	16	50	250	375	36	485	217
JPP20	20	50	150	350	49	375	98
JPP20	20	50	200	300	36	385	173
JPP24	24	60	150	267	41	285	117
JPP28	28	70	120	237	44	215	87
JPP30	30	76	120	213	41	225	94
JPP32	32	80	100	213	46	165	69
JPP36	36	90	100	178	41	178	78
JPP40	40	100	100	150	36	190	87
JPP43	43	110	80	152	43	135	60
JPP48	48	120	80	130	38	145	62
JPP56	56	140	60	120	44	85	44
JPP59	59	150	60	110	42	98	46
JPP64	64	160	60	100	37	105	50
JPP72	72	180	50	90	41	82	39
JPP80	80	200	50	75	36	90	43
JPP100	100	250	40	60	36	65	35
JPP120	120	305	40	43	25	70	42
JPP130	130	330	40	37	23	75	45
