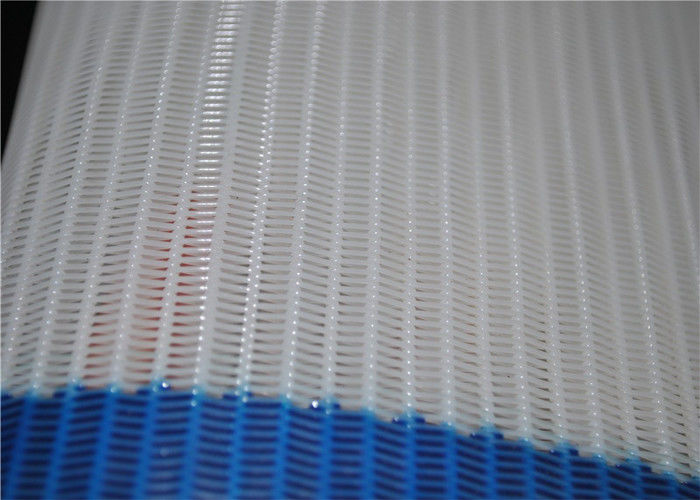

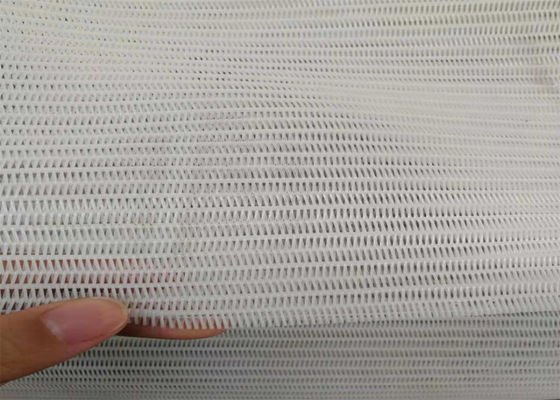

White Customized Width And Ring Diameter Polyester Spiral Dry Mesh Belt
Product Introduce
It is suitable for drying packaging paper, cultural paper, board paper and pulp board with large basis weight. It is used in papermaking, coal mine, food, medicine, printing and dyeing and rubber products industries. It can also be used as a conveyor belt and a mesh belt for compound machines.
Large Loop Polyester Mesh Belt Spiral Link Dryer Fabric for Food Stuff Processingwith loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen.
According to loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt,Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.
Product Features
1. Good air permeability
2. Stable property against heat and moisture
3. Low thermal shrinking
4. Unique structure help the solid granule get easily off the belt after filtration
5. Safe for food processing applications
6. High dimensional and diagonal stability,good air ventilation.
Product Applications
Spiral belts are mainly used in filtration or separation applications for municipal projects for example waste water treatment, and various sludge belt press liquid filtration applications. Our products are suitable for most mechanical dewatering cases of various materials.
polyester spiral dryer belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
polyester spiral dryer belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
polyester spiral dryer belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.
Material advantages
Advantages of our spiral belts are focusing on: strength, flat surface, good air permeability, stable property against heat and moisture, low thermal shrinking, less elongation at heat and a long lifespan.
Product Specification
| Loop Weave Model |
Wire / Thread Diameter (mm) |
Thickness(mm) |
Weight(kg/m2) |
Air Permeability
(m3/m2h) |
| Warp |
Weft |
| Large Loop 4070B |
0.9 |
1.1 |
3 |
1.7 |
20500+-1500 |
| Large Loop 4070A |
0.9 |
1.1 |
3 |
1.9 |
5250+-500 |
| Medium Loop 3868B |
0.7 |
0.9 |
2.5 |
1.4 |
18500+-1500 |
| Medium Loop 3868A |
0.7 |
0.9 |
2.5 |
1.7 |
4750+-500 |
| Small Loop 3252B |
0.5 |
0.7 |
1.9 |
1.1 |
15000+-1500 |
| Small Loop 3252A |
0.5 |
0.7 |
1.9 |
1.4 |
4000+-500 |
