Product Details:
Payment & Shipping Terms:
|
Name: | Polyester Linear Screen Polyester Woven Dryer Mesh Belt For Paper Mills | Surface: | Smooth |
---|---|---|---|
Advantage: | High Wear Resistance | Color: | White And Blue |
Usage: | Dryer And Filter | Function: | Paper Mill Dryer Belt |
Material: | 100% Polyester | Series: | Plain Woven Mesh |
Three-Shed Lain Woven Mesh: | Yes | Application: | Paper Mills |
High Light: | linear screen polyester spiral mesh,wear resistance polyester spiral mesh,high wear resistance polyester mesh belt |

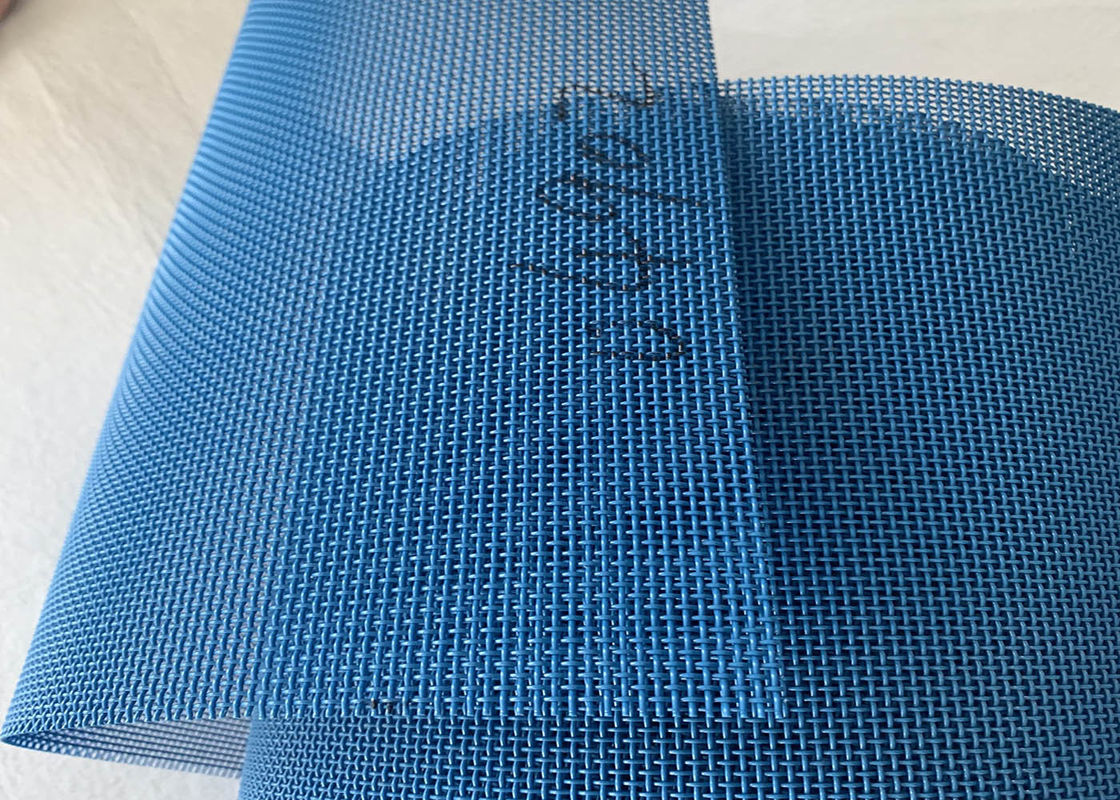

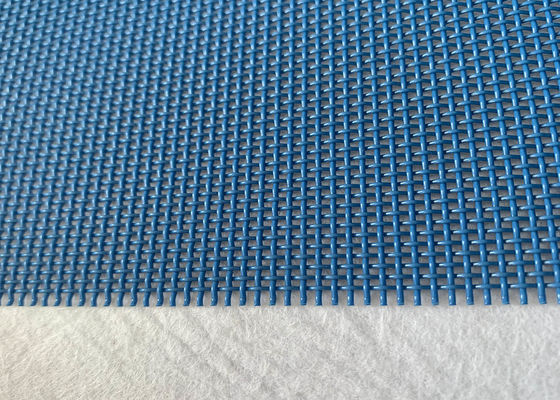

Polyester Linear Screen Polyester Woven Dryer Mesh Belt For Paper Mills
Product Introduce
polyester pulp washing fabric
Mainly used for horizontal belt type pulp washing machine, vacuum pulp washing machine and drum wash pulp machine.
Polyester Plain Weave Fabric
Plain Woven Polyester Mesh Series
Two-shed and three-shed plain woven mesh are mainly used in making paper pulp, packing paper, fiber paper and other special wire mesh products
Product Features
The size and diagonal stability are high, and the ventilation is good.
Seamless-the seams have exactly the same strength as the belt
Smooth, seamless filter or conveying surface.
Durable, stable performance, high strength and good cake yield.
Heat and high temperature resistance (180 degrees).
Filled or unfilled to achieve different filtering characteristics.
Superheated resin sealing edge, long lasting, no marking, economical solution
Can be easily repaired on site
The unique structure makes it easier for the filtered solid particles to leave the belt
Tear resistance, shrinkage resistance, abrasion resistance
Safe for food processing applications
Product Applications
polyester spiral dryer belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
polyester spiral dryer belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
polyester spiral dryer belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.
Product Specification
Series | Fabric Model | Thread Diameter | Density | Strength | Weight | Thick- | Air Perme-ation 3/m2h | ||||
mm | (pieces/cm) | (N/cm) | kg/m2 | ness/ mm | |||||||
Warp | Weft | Warp | Weft | Mesh Surface | Inserting Place | Spiral | |||||
Conne-cting Ring | |||||||||||
Two-Shed | 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 900 | 600 | 0.77 | 1.3 | 11000 |
Plain Woven Mesh | 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 850 | 600 | 0.45 | 0.88 | 16000 |
12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 900 | 600 | 0.63 | 0.95 | 6500 | |
Three-Shed lain Woven Mesh | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 900 | 650 | 0.59 | 1.15 | 14000 |
7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 900 | 650 | 0.8 | 1.35 | 10000 | |
20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 750 | 600 | 0.31 | 0.6 | 13000 | |
20403 | 0.3 | 0.4 | 22 | 14 | 1200 | 750 | 600 | 0.35 | 0.7 | 13500 |
