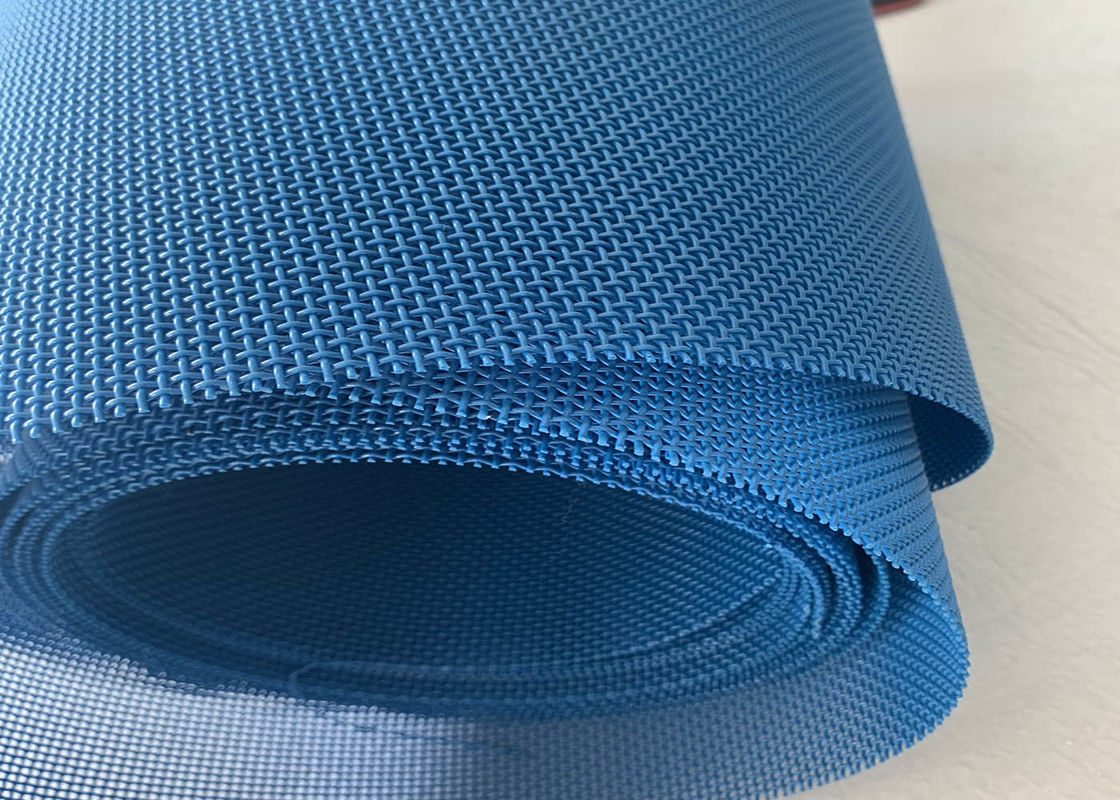

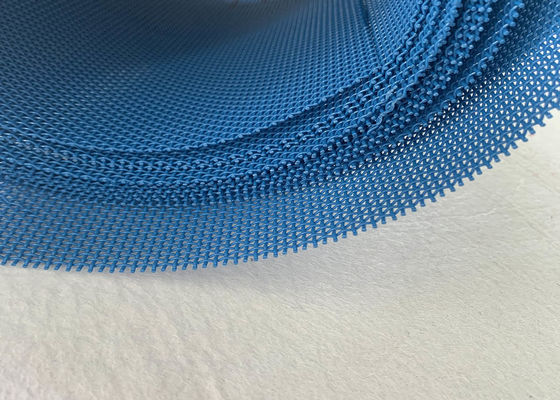

09502 Polyester Woven Dryer Mesh Belt Plain Woven Mesh Belt For Paper Mills
Product Introduction
Polyester square mesh is mainly used for paper pulp manufacturing, packaging carton board paper nets, fiberboard plants and food industry transportation. Filling filaments are added to the spiral ring during processing to reduce the air permeability and the material to reduce the loss of the mesh surface.
We are a professional manufacturer in Hebei for 25 years, and now we have 150 sets of advanced equipment and weaving
We can provide the lowest price, low MOQ and high quality products according to your needs.
Spiral dryer screens/spiral belts/fabrics are widely used in papermaking, printing and dyeing, environmental protection,
In industries such as processing and food processing, round wire or flat wire can be filled into a net according to user needs, and air permeability can be adjusted according to technical requirements.
Product Description
Machinery Repair Shops, Paper pulps making
After Warranty Sce:
Online support
Local Service Location:None
Marketing Type Ordinary Product
Place of Origin China
Brand Name Songyuan, Songyuan
Product Name Press Felt
Payment T/T;D/P
Woven style Plain waven
PACKING Customized
Color White;Blue Red White
Certificate ISO9001
Material :high quality Polyester monofilament in 100% PET.
Weave:spiral with or without stuffer yarns
Density:Different specifications, according customer's requirement
Loops:small loop, medium loop, large loop, super loop.
Length:The length and the width of the belt can be customized
Product Features
It has a higher tension threshold and breaking point.
This product is widely used in the dryer section of paper machines.
This fabric is mainly used to make pulp.
This product has excellent characteristics such as good air permeability.
Suitable for high pressure filter press.
It has high dimensions and diagonal stability, and good ventilation.
Anti-shrinkage, abrasion resistance, acid and alkali resistance;
Product Advantage
Strength
Flat surface
Good air permeability
Stable property against heat and moisture
Low thermal shrinking, less elongation at heat
Resistant to most acids and organic solvents Safe for food processing
Heat-resistance 250°C
Best working temperature: under 180°C
Specification of the polyester mesh belt:
| Series |
Fabric Model |
Thread Diameter |
Density |
Strength |
Weight |
Thick- |
Air Perme-ation 3/m2h |
| mm |
(pieces/cm) |
(N/cm) |
kg/m2 |
ness/ mm |
| Warp |
Weft |
Warp |
Weft |
Mesh Surface |
Inserting Place |
Spiral |
|
|
| Conne-cting Ring |
|
|
| Two-Shed |
6702 |
0.7 |
0.7 |
8 |
7 |
1600 |
900 |
600 |
0.77 |
1.3 |
11000 |
| Plain Woven Mesh |
9452 |
0.45 |
0.45 |
10 |
8.6 |
1600 |
850 |
600 |
0.45 |
0.88 |
16000 |
| |
12502 |
0.5 |
0.5 |
13.5 |
8.5 |
1800 |
900 |
600 |
0.63 |
0.95 |
6500 |
| Three-Shed lain Woven Mesh |
8603 |
0.5 |
0.6 |
10 |
9 |
1600 |
900 |
650 |
0.59 |
1.15 |
14000 |
| 7803 |
0.7 |
0.8 |
8 |
8 |
1600 |
900 |
650 |
0.8 |
1.35 |
10000 |
| 20353 |
0.3 |
0.35 |
22 |
14.5 |
1200 |
750 |
600 |
0.31 |
0.6 |
13000 |
| 20403 |
0.3 |
0.4 |
22 |
14 |
1200 |
750 |
600 |
0.35 |
0.7 |
13500 |
How To Choose
Mesh opening is the size or space between threads,the mesh opening is the result of the combination of the mesh count and yam size
Mesh opening will determine the size or amount of material that will pass through the fabric.
It can be 2-3-4cm, to make the mesh belt more strong, not easy.
to break
Product Package
1 we always use poly bag for the goods which ship by air,so that customer can save freight free
2 wooden case is the best for ocean shipment because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 we can according to customer requirements
