Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt

Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt
Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt

Large Image :  Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt

Product Details:
Place of Origin: Hebei China
Brand Name: R&K
Certification: ISO9001
Model Number: HH-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Meter
Price: Negotiable
Packaging Details: 1 Stretch film 2 carton 3 woven bag
Delivery Time: 4-7 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 900 meters per week
Detailed Product Description
Name: Drying Mining Polyester Linear Screen Cloth Polyester Mesh Conveyor Belts Color: Customer's Request
Application: Paper Pulps Making Type: Linear Screen Cloth
Certification: ISO9001 PACKING: Weave Bags
Material: 100% Polyester Usage: Mining
Drying: Yes
High Light:

drying polyester mesh conveyor belt

,

mining polyester mesh conveyor belt

,

linear screen cloth polyester conveyor belt

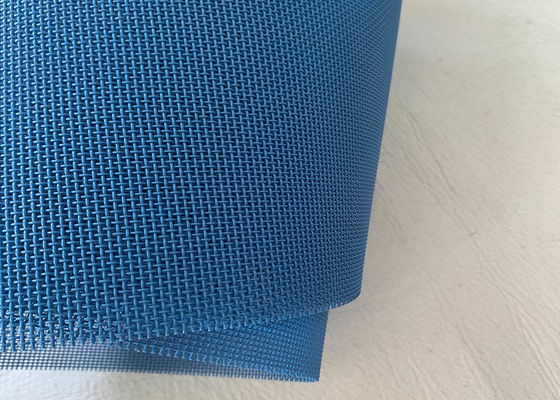

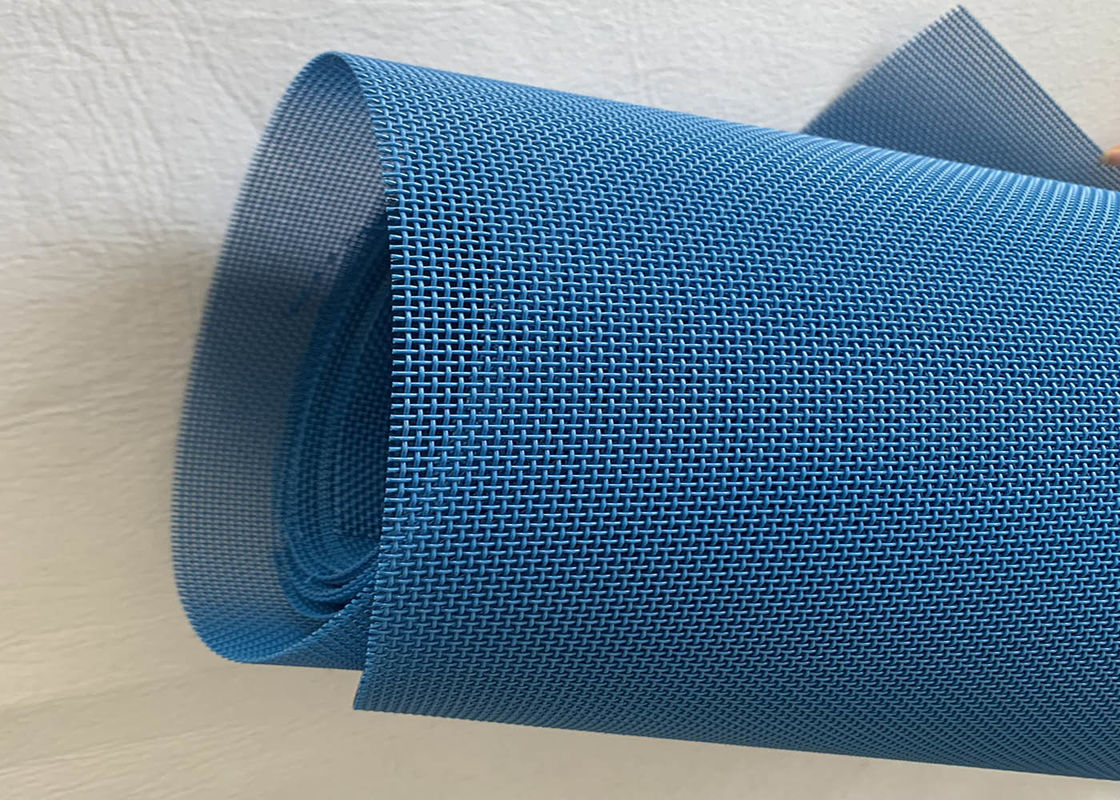

Drying Mining Polyester Linear Screen Cloth Polyester Mesh Conveyor Belts





Introduce of the polyester mesh belt:



The mesh of polyester plain weave mesh is the size or spacing between threads, and the mesh is the result of the combination of mesh number and yarn size

The mesh opening will determine the size or amount of material passing through the fabric.

It can be 2-3-4cm to make the mesh belt stronger and not easy to break



Place of Origin China
Brand Name R&K
Product Name Drying Mining Polyester Linear Screen Cloth Polyester Mesh Conveyor Belts
Online support Yes
Payment T/T;D/P
Woven style Plain waven
Color White;Blue Red White
Certificate ISO9001
Material high quality Polyester monofilament in 100% PET.
Weave spiral with or without stuffer yarns



Product Features



Polyester mesh has a higher tension threshold and breaking point.
Polyester plain woven webs are widely used in the dryer section of paper machines.
Polyester plain woven mesh is mainly used to make paper pulp.
Polyester plain woven mesh has excellent characteristics such as good air permeability.
Polyester plain woven mesh is suitable for high pressure filter press.
Polyester plain woven mesh has high size and diagonal stability, and good ventilation.
Polyester plain woven mesh is resistant to shrinkage, abrasion, acid and alkali;


Specifications of the polyester mesh belt:



Series Fabric Model Thread Diameter Density Strength Weight Thick- Air Perme-ation 3/m2h
mm (pieces/cm) (N/cm) kg/m2 ness/ mm
Warp Weft Warp Weft Mesh Surface Inserting Place Spiral
Conne-cting Ring
Two-Shed 6702 0.7 0.7 8 7 1600 900 600 0.77 1.3 11000
Plain Woven Mesh 9452 0.45 0.45 10 8.6 1600 850 600 0.45 0.88 16000
  12502 0.5 0.5 13.5 8.5 1800 900 600 0.63 0.95 6500
Three-Shed lain Woven Mesh 8603 0.5 0.6 10 9 1600 900 650 0.59 1.15 14000
7803 0.7 0.8 8 8 1600 900 650 0.8 1.35 10000
20353 0.3 0.35 22 14.5 1200 750 600 0.31 0.6 13000
20403 0.3 0.4 22 14 1200 750 600 0.35 0.7 13500



Product Package



1 we always use poly bag for the goods which ship by air,so that customer can save freight free

2 wooden case is the best for ocean shipment because it can effective avoid the damage during shipping

3 There also have some customer request us to use the carton to packing their goods

4 we can according to customer requirements



Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt 0Drying Mining Linear Screen Cloth Polyester Mesh Conveyor Belt 1
