Product Details:
Payment & Shipping Terms:
|
Name: | Polyester Plain Square Hole Weave Dryer Mesh Belt Cloth Woven Fabric For Paper Mills | Color: | Blue ,white |
---|---|---|---|
Application: | Paper Pulps Making | Type: | Spiral Hole Mesh |
Certification: | ISO9001 | Material: | 100% Polyester |
Hole Size: | 1mm | Fabric Model: | 6702 |
Thread Diameter: | 0.3-0.7 | Thickness: | 0.6-1.3mm |
High Light: | paper mills polyester spiral mesh,square hole weave polyester mesh belt,paper pulps making polyester mesh belt |

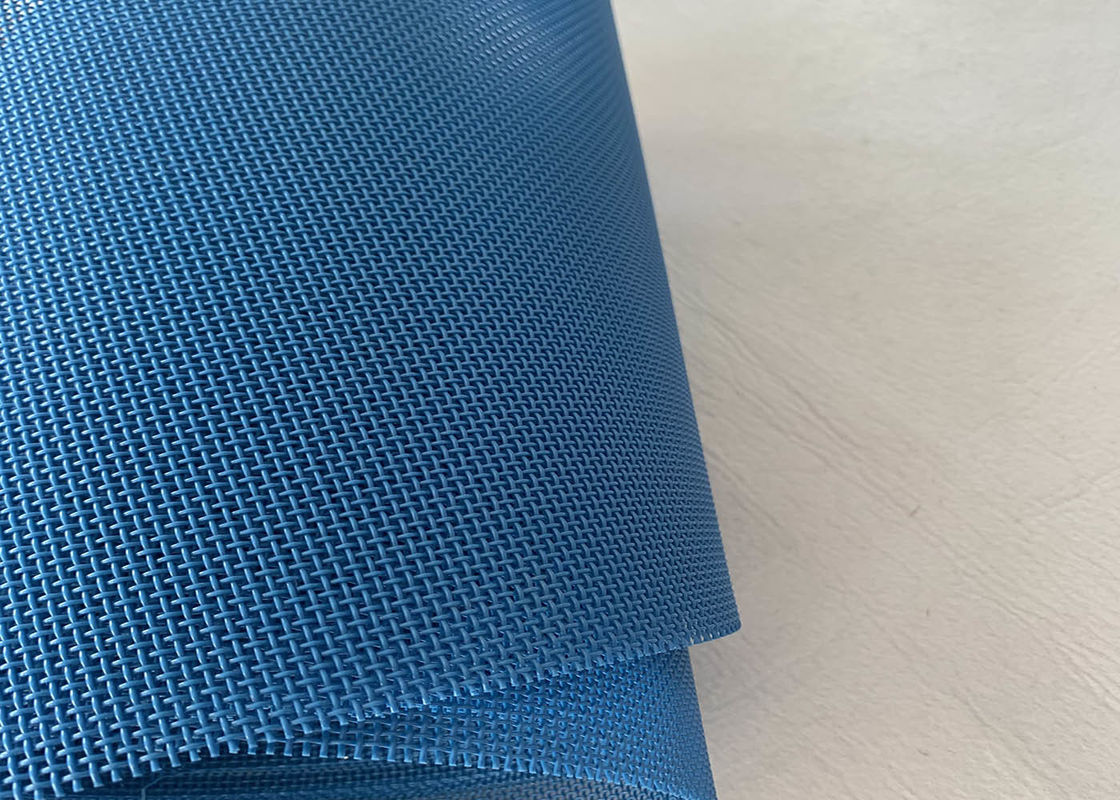

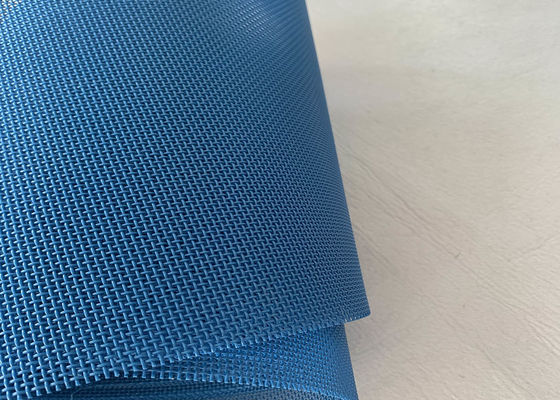

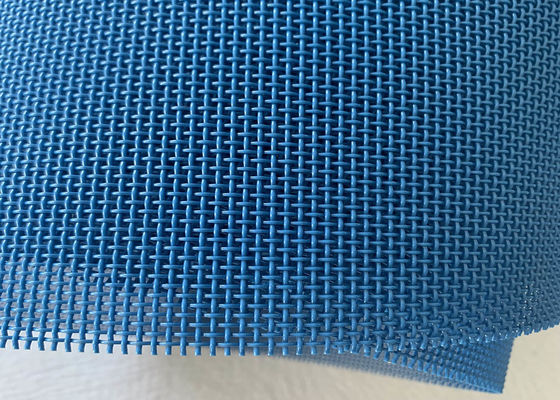

Polyester Plain Square Hole Weave Dryer Mesh Belt Cloth Woven Fabric For Paper Mills
Product Introduction
Machinery Repair Shops, Paper pulps making
After Warranty Sce:
Online support
Local Service Location:None
Marketing Type Ordinary Product
Place of Origin China
Brand Name :R&K
Product Name Press Felt
Payment T/T;D/P
Woven style Plain waven
PACKING Customized
Color White;Blue Red White
Certificate ISO9001
Material :high quality Polyester monofilament in 100% PET.
Weave:spiral with or without stuffer yarns
Density:Different specifications, according customer's requirement
Loops:small loop, medium loop, large loop, super loop.
Length:The length and the width of the belt can be customized
Product Features
Polyester plain weave mesh has a flat surface
Polyester plain woven mesh has good air permeability
Polyester plain woven net has stable heat and humidity resistance
Polyester plain woven mesh has low thermal shrinkage and low thermal elongation
Polyester plain woven mesh is resistant to most acids and organic solvents and can be used safely in food processing
Heat resistance of polyester plain woven mesh 250°C
The best working temperature of polyester plain woven mesh: below 180°C
Specifications of the polyester mesh belt:
Series | Fabric Model | Thread Diameter | Density | Strength | Weight | Thick- | Air Perme-ation 3/m2h | ||||
mm | (pieces/cm) | (N/cm) | kg/m2 | ness/ mm | |||||||
Warp | Weft | Warp | Weft | Mesh Surface | Inserting Place | Spiral | |||||
Conne-cting Ring | |||||||||||
Two-Shed | 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 900 | 600 | 0.77 | 1.3 | 11000 |
Plain Woven Mesh | 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 850 | 600 | 0.45 | 0.88 | 16000 |
12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 900 | 600 | 0.63 | 0.95 | 6500 | |
Three-Shed lain Woven Mesh | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 900 | 650 | 0.59 | 1.15 | 14000 |
7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 900 | 650 | 0.8 | 1.35 | 10000 | |
20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 750 | 600 | 0.31 | 0.6 | 13000 | |
20403 | 0.3 | 0.4 | 22 | 14 | 1200 | 750 | 600 | 0.35 | 0.7 | 13500 |
How To Choose
Mesh opening is the size or space between threads,the mesh opening is the result of the combination of the mesh count and yam size
Mesh opening will determine the size or amount of material that will pass through the fabric.
Product Package
1 we always use poly bag for the goods which ship by air,so that customer can save freight free
2 wooden case is the best for ocean shipment because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 we can according to customer requirements
